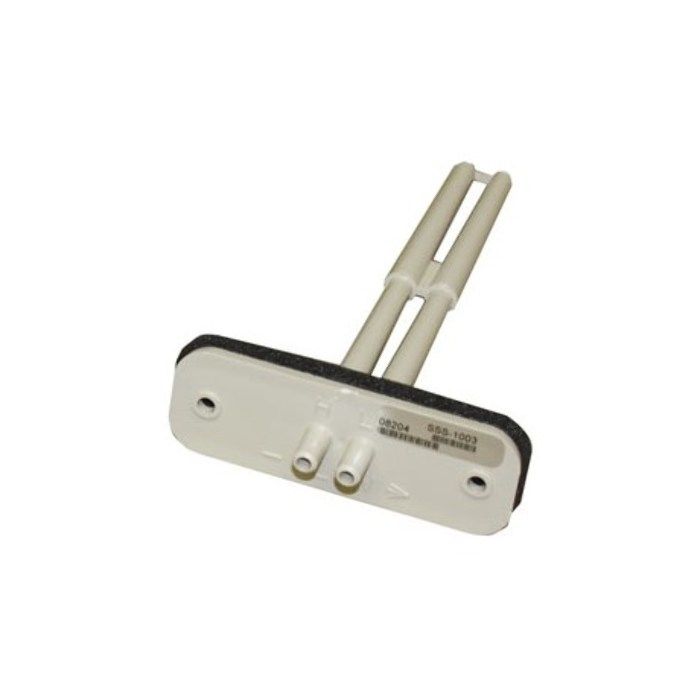

KMC Controls SSS-1003 Differential Pressure Flow Sensor
- Regular price
- $49.00
- Sale price
- $49.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SSS-1003
Description
The KMC Controls SSS-1003 is a differential pressure flow sensor designed to measure airflow in Variable Air Volume (VAV) terminal units and HVAC duct systems. Featuring two sensing points and a compact pickup tube design, it provides accurate differential pressure readings for airflow monitoring and zone control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | KMC Controls |
| Part Number | SSS-1003 |
| Category | Sensors & Switches |
| Subcategory | Pressure Sensor / Transducer |
| Product Type | Differential Pressure Flow Sensor |
| Series | SSS |
| Sensing Points | 2 |
| Power Supply | 24 VAC |
| Media | Air |
| Maximum Air Flow | 3,300 fpm |
| Fitting Size | 1/4 in Push-On Nipple |
| Process Connection | 1/4 in |
| Probe Length | 5-3/8 in |
| Overall Length | 6 in |
| Insertion Length | 5-13/32 in |
| Mounting | 2-Hole Flange Mount |
| Operating Temperature | 40°F to 120°F |
| Application | Variable Air Volume (VAV), Zone Control |
| Standards | RoHS |
| Weight | 0.10 lb |
Information About SSS-1003
The SSS-1003 is part of the KMC Controls SSS Series of differential pressure pickup tubes developed for HVAC airflow measurement and VAV control systems. Designed with two sensing points, it measures the pressure difference between high and low ports to calculate airflow or static pressure within ductwork. The sensor is commonly used with KMC VAV controllers, including the BAC-7000, KMD-7000, CSC, and CSP series, providing dependable airflow feedback for efficient building climate control. Its durable construction and simple installation make it ideal for commercial HVAC systems and air distribution applications.
Key Features:
- Differential Pressure Measurement: Measures airflow using differential pressure across high and low sensing ports.
- Two Sensing Points: Provides accurate airflow monitoring in VAV and fan terminal units.
- HVAC Airflow Monitoring: Designed for Variable Air Volume (VAV) and zone control applications.
- Flexible Installation: Mounts easily in ductwork using the included mounting flange and gasket.
- Static Pressure Measurement: Can also measure static pressure using a single sensing port.
- Broad Controller Compatibility: Designed for use with KMC BAC, KMD, CSC, and CSP series controllers.
- Durable Construction: Built for long-term performance in commercial HVAC environments.
- RoHS Compliant: Manufactured to meet environmental compliance requirements.
The SSS-1003 delivers the reliability and accuracy required for airflow measurement, VAV control, and HVAC system optimization.
