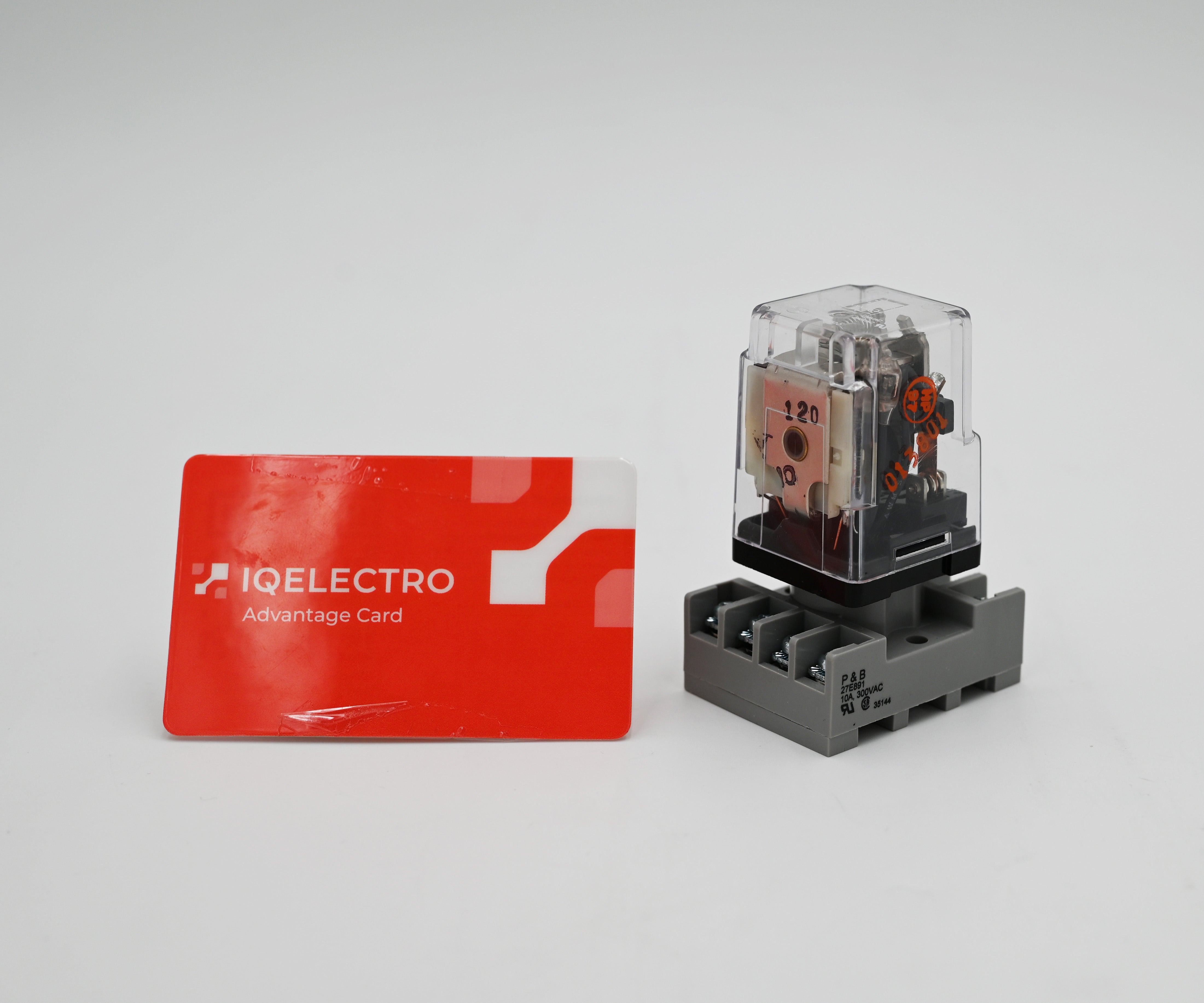

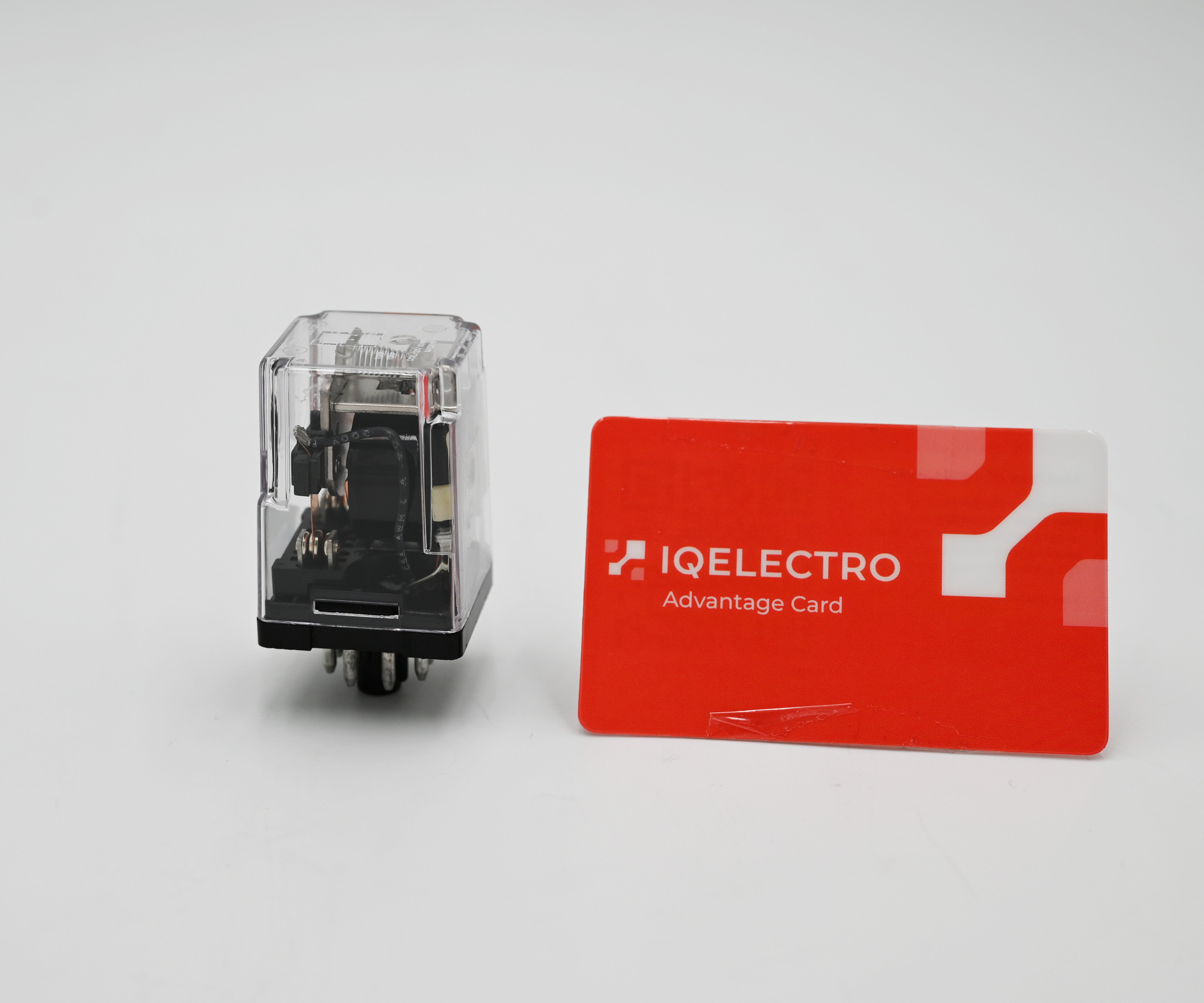

KRPA-11AN-120 | Potter & Brumfield General Purpose Power Relay
- Regular price
- $27.00
- Sale price
- $27.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: KRPA-11AN-120
Description

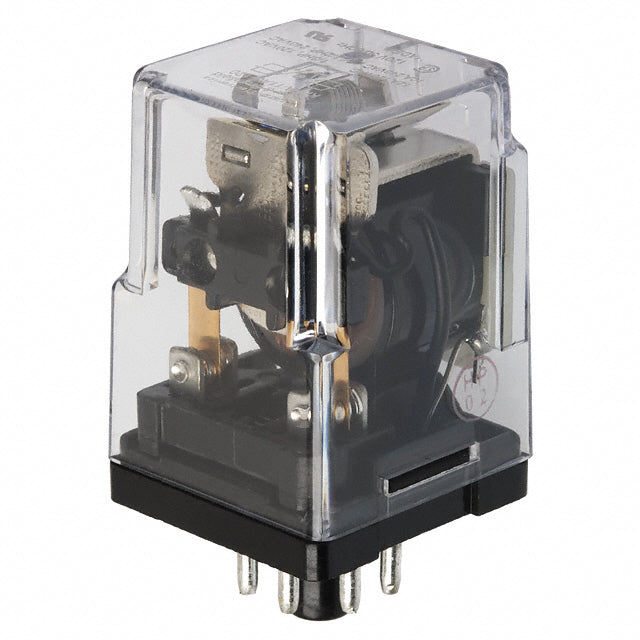

The KRPA-11AN-120 is a general-purpose plug-in relay with DPDT contact configuration, operating on 120 VAC. It features a rugged construction with silver-cadmium oxide contacts rated at 10 amps and includes an integrated indicator lamp for status monitoring. Designed for panel or socket mounting, this relay is enclosed in a clear dust cover and ideal for voltage or current sensing applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Potter & Brumfield |
| Category |
Panel Accessories
|
| Part Number | KRPA-11AN-120 |
| Subcategory | Relay/Socket |
| Series | KRPA Series |
| Coil Voltage | 120 VAC |
| Contact Configuration | DPDT (2 Form C) |
| Contact Material | Silver-Cadmium Oxide (AgCdO) |
| Contact Rating | 10 A @ 240 VAC |
| Coil Resistance | 2250 Ohms |
| Coil Power | 2.1 VA |
| Coil Frequency | 50/60 Hz |
| Indicator Lamp | Integrated |
| Mounting Type | 8-Pin Octal Socket |
| Enclosure | Clear Dust Cover |
| Insulation Resistance | 1000 MΩ |
| Dielectric Strength | 1000 Vrms (coil/contact) |
| Mechanical Life | 10 million operations |
| Electrical Life | 100,000 operations @ rated load |
| Operating Temperature | -45°C to +55°C |
| Compliance | UL E22575, CSA LR15734 |
| Weight | 0.15 lbs |
Information About KRPA-11AN-120
The KRPA-11AN-120 is part of TE Connectivity’s KRPA Series of industrial-grade relays, known for their mechanical durability and high-performance switching. This particular model offers two form C (DPDT) contacts and operates with a 120 VAC coil, incorporating a visual indicator lamp wired in parallel with the coil circuit. It utilizes an 8-pin octal plug termination for quick installation and is housed in a clear, dust-protected enclosure. This relay is widely adopted in control panels for applications such as lighting systems, baggage handling, and inspection machinery.
Key Features:
- PDT Contact Configuration: Equipped with 2 form C (double-pole double-throw) contacts for versatile switching needs.
- 120 VAC Coil with Indicator: Features an internal indicator lamp for real-time voltage monitoring.
- High Contact Rating: Silver-cadmium oxide contacts support switching up to 10A at 240VAC.
- Rugged Enclosure: Transparent dust cover ensures protection and easy visual inspection.
- Octal Plug Termination: Standard 8-pin configuration enables fast socket-based installation.
- Excellent Mechanical Endurance: Rated for 10 million mechanical operations.
- Electrical Life Expectancy: Rated for 100,000 operations at full load.
- Certified Standards: UL (E22575) and CSA (LR15734) approved for industrial use.
- Temperature Resilience: Operates reliably in environments from -45°C to +55°C.
- Compact Footprint: Space-saving design allows for efficient panel layouts.
The KRPA-11AN-120 delivers the reliability and precision required for control and monitoring in demanding industrial applications.
