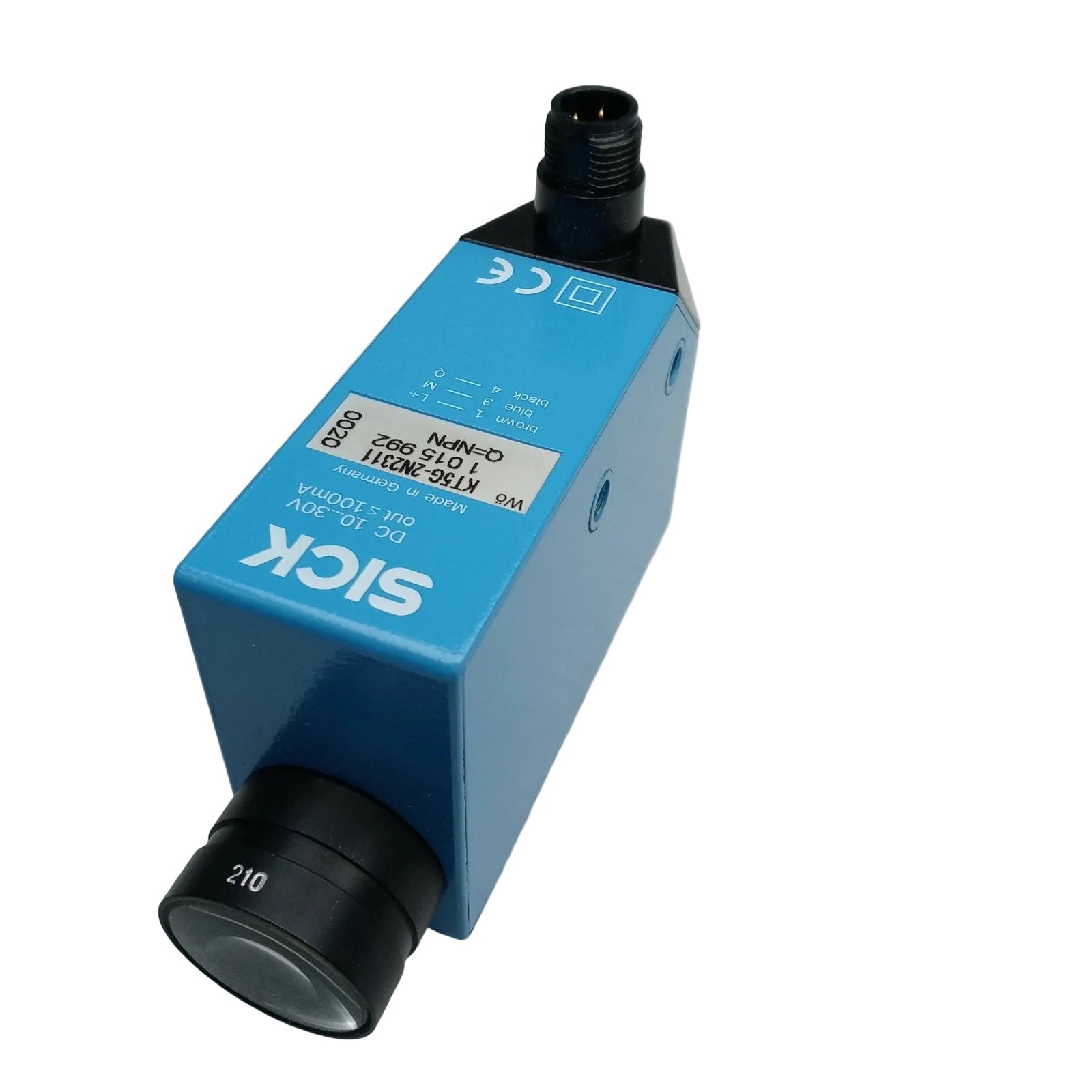

KT5G-2N2311 | SICK KT5 Series Optical Contrast Sensor, NPN Output
- Regular price
- $577.00
- Sale price
- $577.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: KT5G-2N2311
Description
The SICK KT5G-2N2311 is an optical contrast sensor designed for precise detection of contrast differences in industrial automation applications. This sensor uses a green light source and an NPN output to provide fast, reliable switching at a defined sensing distance. It is engineered for high-speed registration and inspection tasks where accurate contrast recognition is required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Sensors |
| Part Number | KT5G-2N2311 |
| Subcategory | Contrast Sensors |
| Sensor Type | Optical Contrast Sensor |
| Sensing Distance | 40 mm (1.575 in) |
| Light Source | Green LED (520 nm) |
| Output Configuration | NPN |
| Supply Voltage | 10–30 VDC |
| Response Time | 50 µs |
| Adjustment Method | Potentiometer |
| Connection Method | M12 Connector |
| Ingress Protection | IP67 |
| Operating Temperature | –10 °C to +55 °C |
| Weight | 0.35 lbs (approx.) |
Information About KT5G-2N2311
The KT5G-2N2311 is part of the SICK KT5 series of contrast sensors, developed for detecting printed marks and surface contrast variations. It operates using an optical sensing principle with a fixed 40 mm sensing distance and adjustable sensitivity via a potentiometer. The sensor features a fast response time suitable for high-speed production lines and integrates easily using an M12 connector. Designed for industrial environments, it maintains stable performance across a wide voltage range and within its specified operating temperature limits.
Key Features:
- Optical Contrast Sensing: Designed to detect contrast differences for registration and inspection tasks.
- Green Light Source (520 nm): Optimized for reliable contrast detection on various materials.
- Fixed 40 mm Sensing Distance: Provides consistent and repeatable detection geometry.
- NPN Switching Output: Compatible with standard industrial PLC input circuits.
- Ultra-Fast Response Time: 50 µs response supports high-speed automation processes.
- Adjustable Sensitivity Control: Features a potentiometer for fine-tuning detection thresholds.
- IP67 Environmental Protection: Suitable for use in demanding industrial environments.
The KT5G-2N2311 delivers the reliability and precision required for contrast-based optical sensing in industrial automation systems.
