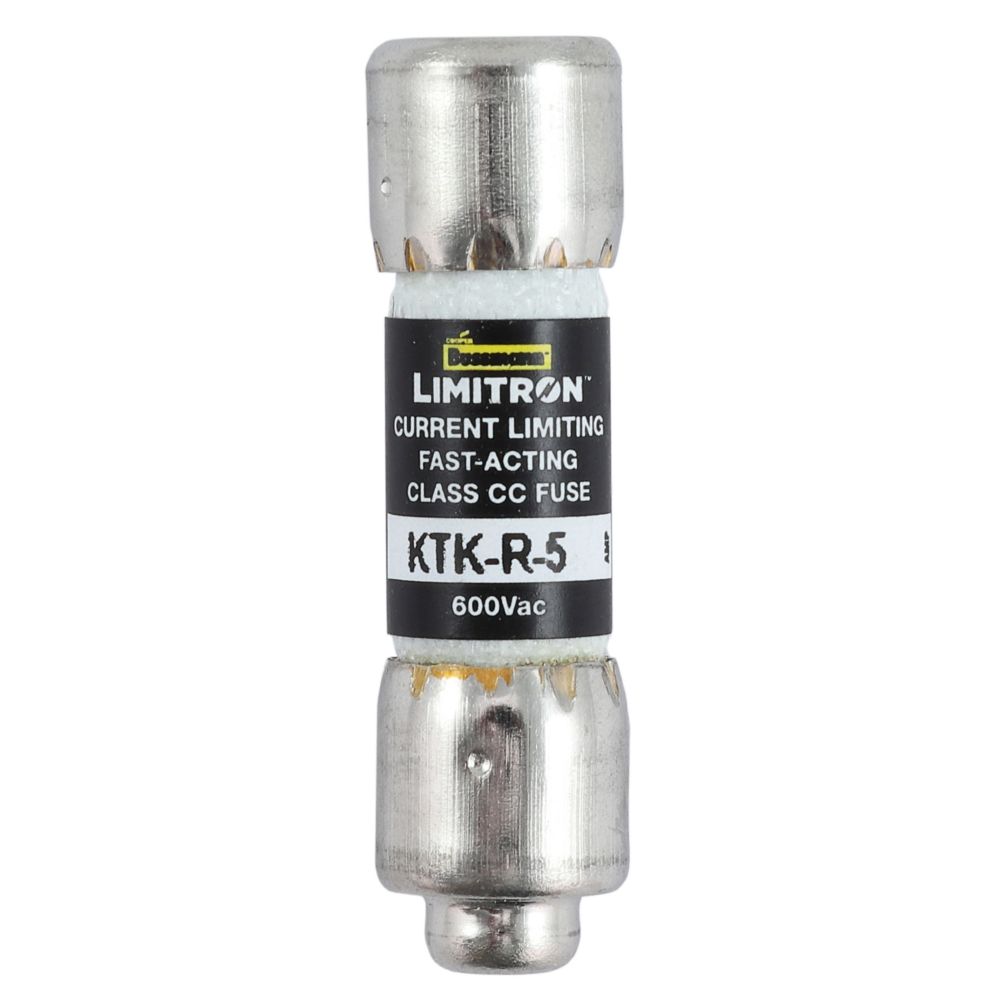

KTK-R-5 | Eaton Series KTK-R Fuse
- Regular price
- $62.00
- Sale price
- $62.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: KTK-R-5
Description
Cooper / Bussmann KTK-R series 5 ampere limitron group class cc rejection fast acting characteristics power fuse with maximum voltage rating of 600V and high interrupting rating of 20 kiloampere at 600Vac used on fast acting fuses to protect control circuit transformers and melamine tube ferrule terminal fuses.
Technical Specifications
| Brand | Eaton |
| Category | Panel Accessories |
| Part Number | KTK-R-5 |
| Subcategory | Fuse |
| Amperage Rating | 5 A |
| Body Type | Cylindrical |
| Class | CC |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 kA |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Series | KTK-R |
| Terminal Type | Ferrule |
| Type | Fast Acting |
| Voltage Rating | 600 V |
Information About KTK-R-5
The Eaton KTK-R-5 is a 5 Amp fast-acting fuse from the KTK-R Series, designed for high-performance overcurrent protection in various electrical applications. This cylindrical fuse is rated for 600 volts, making it suitable for both commercial and industrial settings where reliable protection is essential.
The KTK-R-5 fuse belongs to the Class CC category, known for its compact size and high interrupting capacity. It has an impressive interrupt rating of 200 kA, ensuring that it can safely handle high fault currents without compromising the electrical system's integrity.
Constructed with a melamine body, the KTK-R-5 offers excellent durability and heat resistance, which enhances its performance and longevity in demanding environments. This fuse is non-indicating, meaning it does not provide a visual indication when it has blown, necessitating manual inspection.
Designed for use with fuse holders, the KTK-R-5 features a rejection-style mounting, preventing the installation of incorrect fuses and ensuring proper circuit protection. The ferrule terminal type facilitates secure connections within the holder, ensuring reliable electrical contact.
Overall, the Eaton KTK-R-5 fuse combines high interrupting capacity, durable construction, and precise fast-acting protection to deliver superior performance in safeguarding electrical systems against overcurrent conditions. Its design and specifications make it a dependable choice for ensuring the safety and reliability of critical electrical circuits.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
