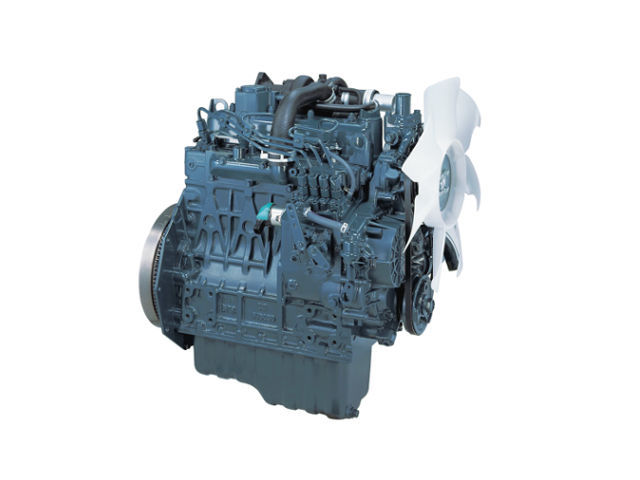

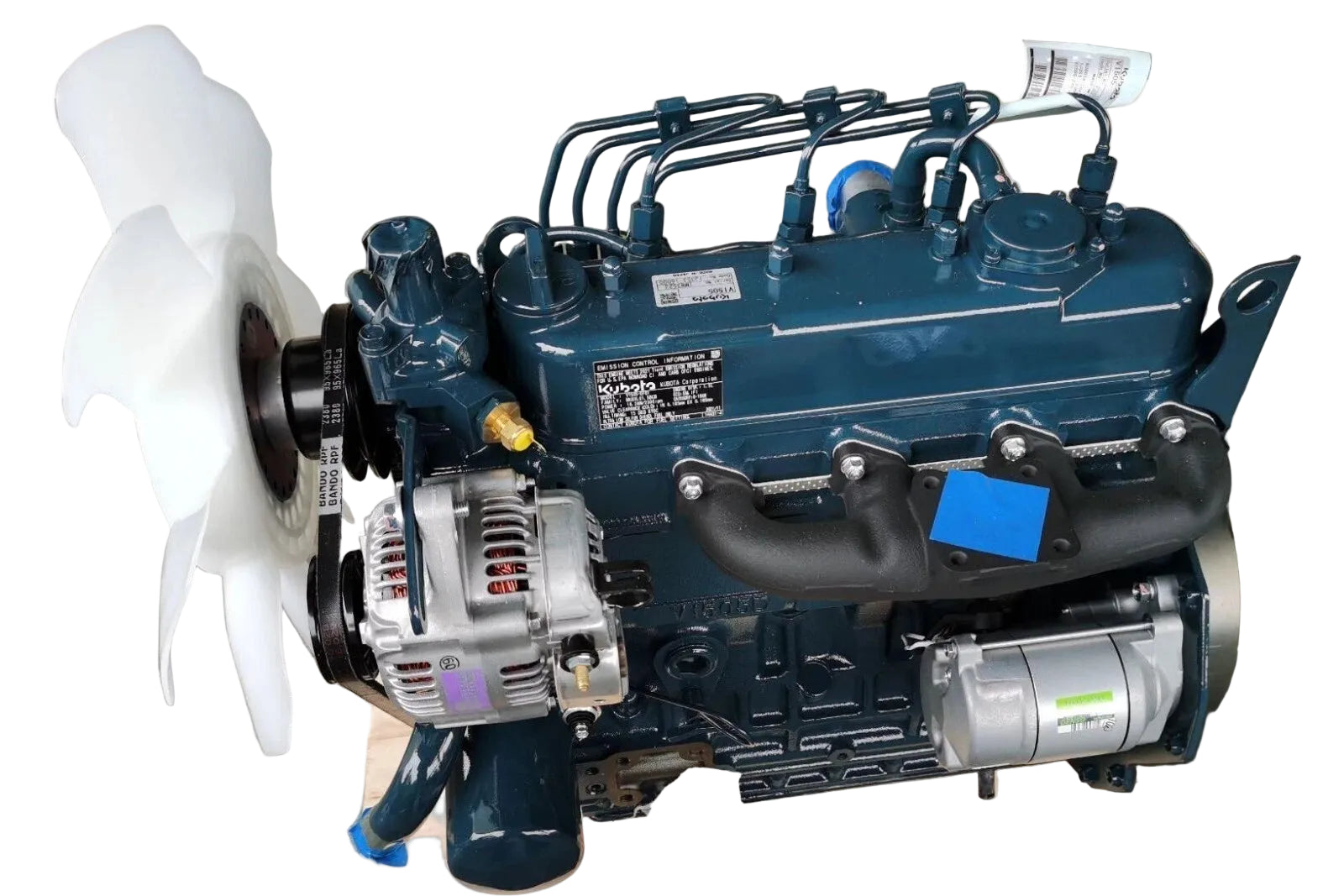

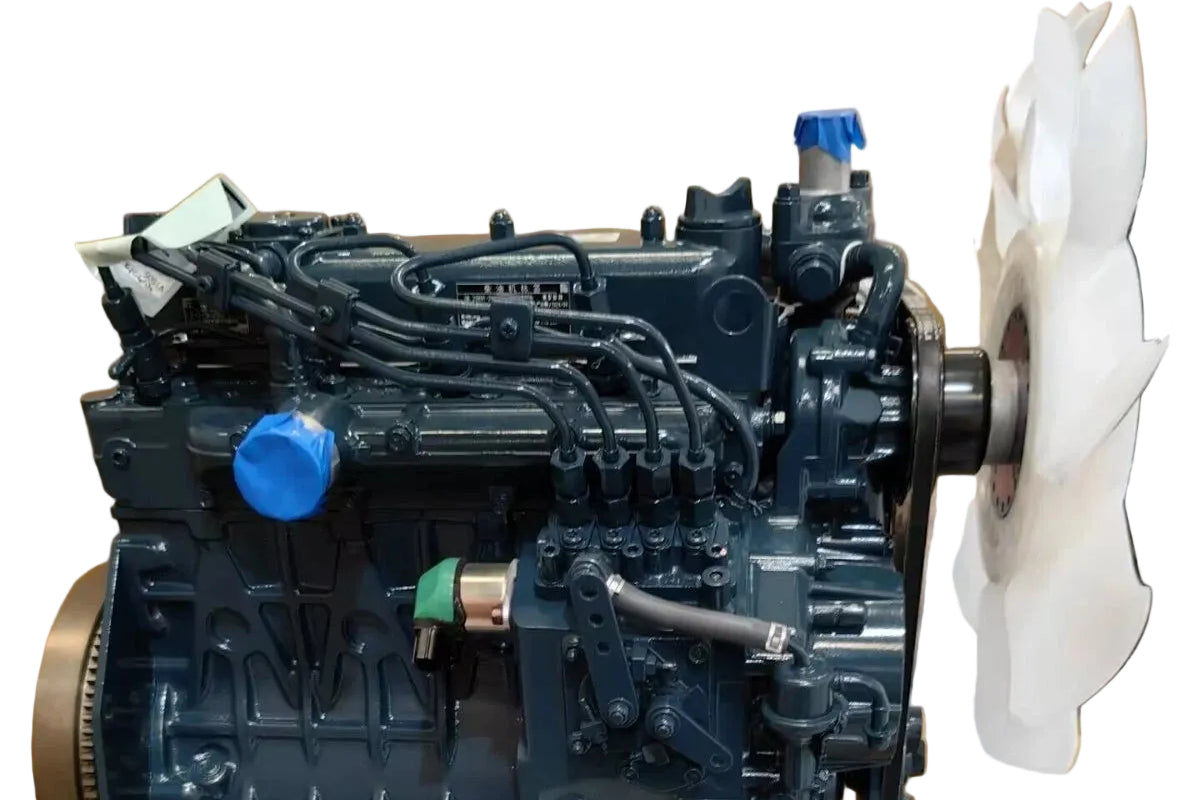

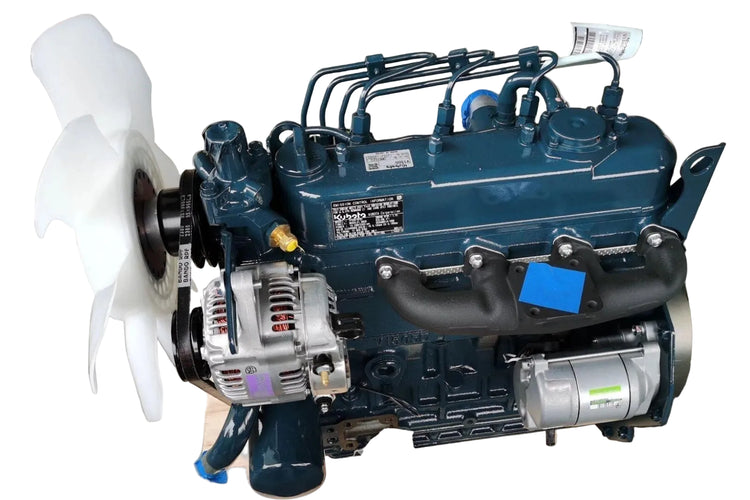

Kubota V1505 1.5L 4-Cylinder Diesel Engine for Carrier Refrigeration Units
- Regular price
- $9,999.00
- Sale price
- $9,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: V1505
Description
The Kubota V1505 is a four-cylinder, liquid-cooled diesel engine designed for industrial equipment and transport refrigeration applications. Kubota V1505 provides 1,498 cc displacement with a compact naturally aspirated configuration suitable for continuous-duty operation in Carrier refrigeration units.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Kubota |
| Category | Engines & Engine Components |
| Part Number | V1505 |
| Subcategory | Diesel Engines |
| Engine Series | Kubota 05-Series |
| Engine Type | 4-Cylinder, 4-Cycle Diesel |
| Configuration | Vertical Inline-4 |
| Displacement | 1,498 cc (1.5 L / 91.4 cu in) |
| Cooling System | Liquid-Cooled |
| Aspiration | Naturally Aspirated |
| Bore | 78.0 mm (3.07 in) |
| Stroke | 78.4 mm (3.09 in) |
| Compression Ratio | 24.0:1 |
| Fuel Injection Pump | Bosch MD-Type Mini Injection Pump |
| Fuel Nozzle | DNOPD Mini Nozzle |
| Governor | All-Speed Mechanical Governor |
| Firing Order | 1-3-4-2 |
| Low / High Speed | 1,450 / 1,900 RPM |
| Weight | 242.5 lbs (110 kg) |
Information About V1505
The V1505 is a Kubota 05-Series vertical four-cylinder diesel engine built around a liquid-cooled, naturally aspirated design. It uses a Bosch MD-type mini fuel injection pump, DNOPD injection nozzles, glow-plug starting assistance, and an all-speed mechanical governor. The engine is used in Carrier refrigeration equipment including Maxima, Maxima Plus, Maxima II, Maxima BI-TEMP, Optima NDA B94B, and Genesis TM 800 applications. Its 78.0 mm bore, 78.4 mm stroke, and 24.0:1 compression ratio provide the operating characteristics required for industrial refrigeration power systems.
Key Features:
- Engine Configuration: Vertical inline four-cylinder, four-cycle diesel design.
- Displacement: 1,498 cc (1.5 L / 91.4 cu in) engine capacity.
- Cooling System: Liquid-cooled configuration for controlled operating temperatures.
- Fuel System: Bosch MD-type mini injection pump with DNOPD injection nozzles.
- Combustion System: Spherical-type combustion chamber with glow-plug starting assistance.
- Speed Range: 1,450 RPM low-speed and 1,900 RPM high-speed operation for listed refrigeration applications.
- Compression Ratio: 24.0:1 compression ratio for diesel combustion.
- Carrier References: Associated with Carrier numbers 26-50009-00, 265000900, 26-5000900, 26-00131-00, 260013100, and 26-0013100.
The V1505 delivers the reliability and precision required for industrial diesel power and transport refrigeration applications.
