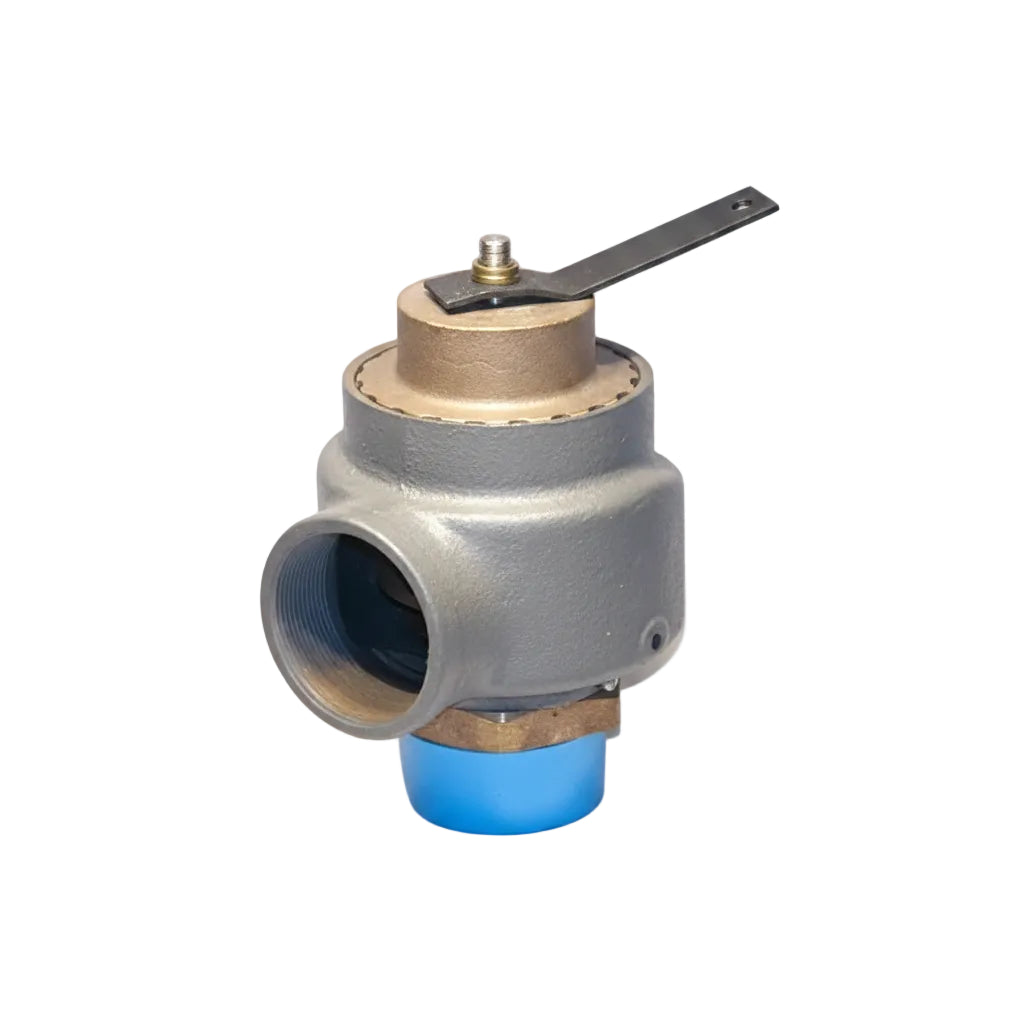

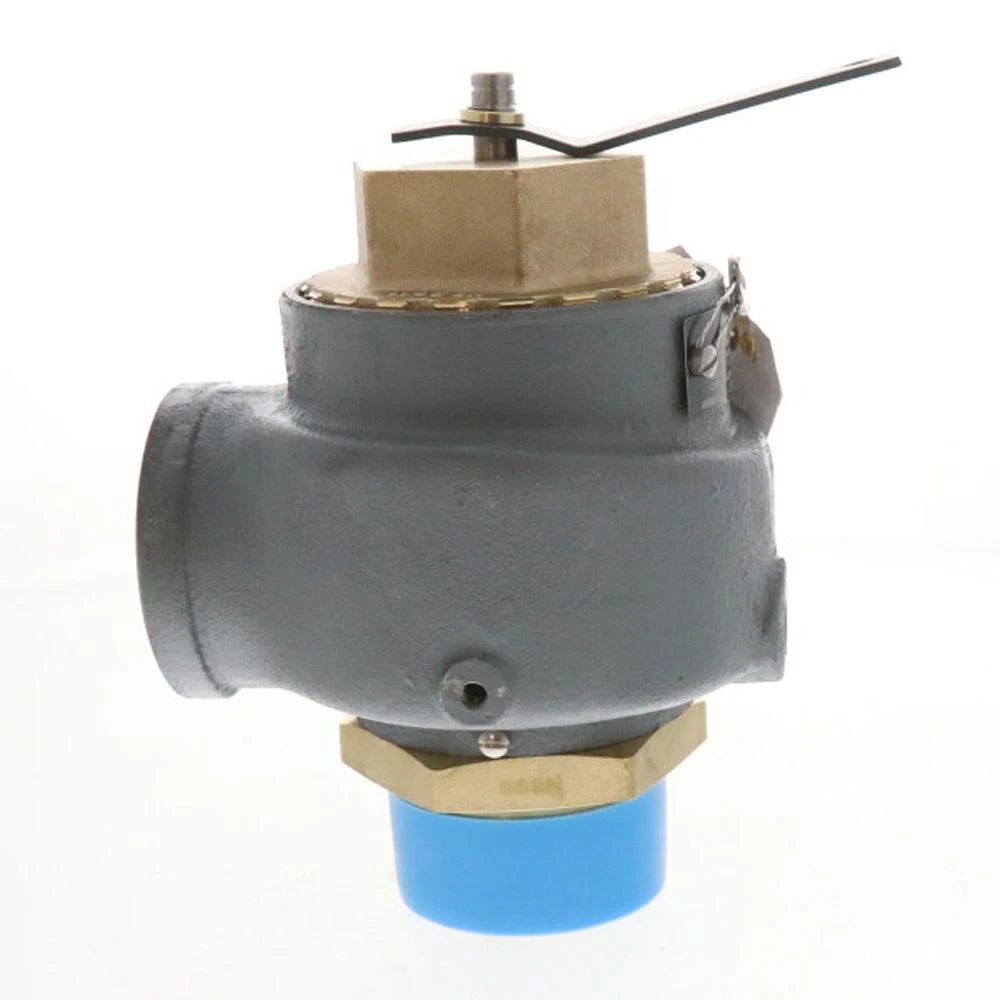

KUNKLE 0930-H01-GC0015 Bronze Steam Relief Valve 2 Inch 15 PSI
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 0930-H01-GC0015
Description
KUNKLE 0930-H01-GC0015 is a bronze steam relief valve designed for low-pressure steam heating boilers and related steam systems. It features a 2-inch NPT inlet, side outlet configuration, and a 15 PSI set pressure for controlled steam pressure relief.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | KUNKLE |
| Category | Valves |
| Part Number | 0930-H01-GC0015 |
| Subcategory | Pressure Relief Valve |
| Model | 930 |
| Product Type | Steam Relief Valve |
| Body Material | Bronze |
| Valve Size | 2 inches |
| Set Pressure | 15 PSI |
| Applicable Codes | ASME Code Sections IV and XIII |
| Weight | 8.00 lbs |
Information About 0930-H01-GC0015
The 0930-H01-GC0015 is part of KUNKLE Model 930, a high-capacity safety relief valve series intended for steam applications. The valve has a 2-inch male NPT inlet and 2-inch female NPT side outlet configuration for compatible piping installations. Bronze is used for the body, nozzle, disc, and guide components specified for this configuration. The valve is suitable for low-pressure steam heating boilers and is designed in accordance with applicable ASME Code Sections IV and XIII requirements.
Key Features:
- Steam Service: Designed specifically for pressure relief applications involving steam.
- 15 PSI Set Pressure: Configured to relieve pressure at a 15 PSIG set pressure.
- 2-Inch Inlet: Uses a 2-inch male NPT inlet connection.
- Side Outlet: Features a 2-inch female NPT side outlet configuration.
- Bronze Construction: Uses bronze construction and specified bronze internal components.
- High Capacity: Provides a rated steam relief capacity of approximately 3,164 lb/hr.
- ASME Code Application: Suitable for low-pressure steam heating boilers under ASME Code Sections IV and XIII.
- Model 930: Part of the KUNKLE 930 high-capacity safety relief valve series.
The 0930-H01-GC0015 delivers the reliability and precision required for steam pressure relief in low-pressure boiler and heating systems.
