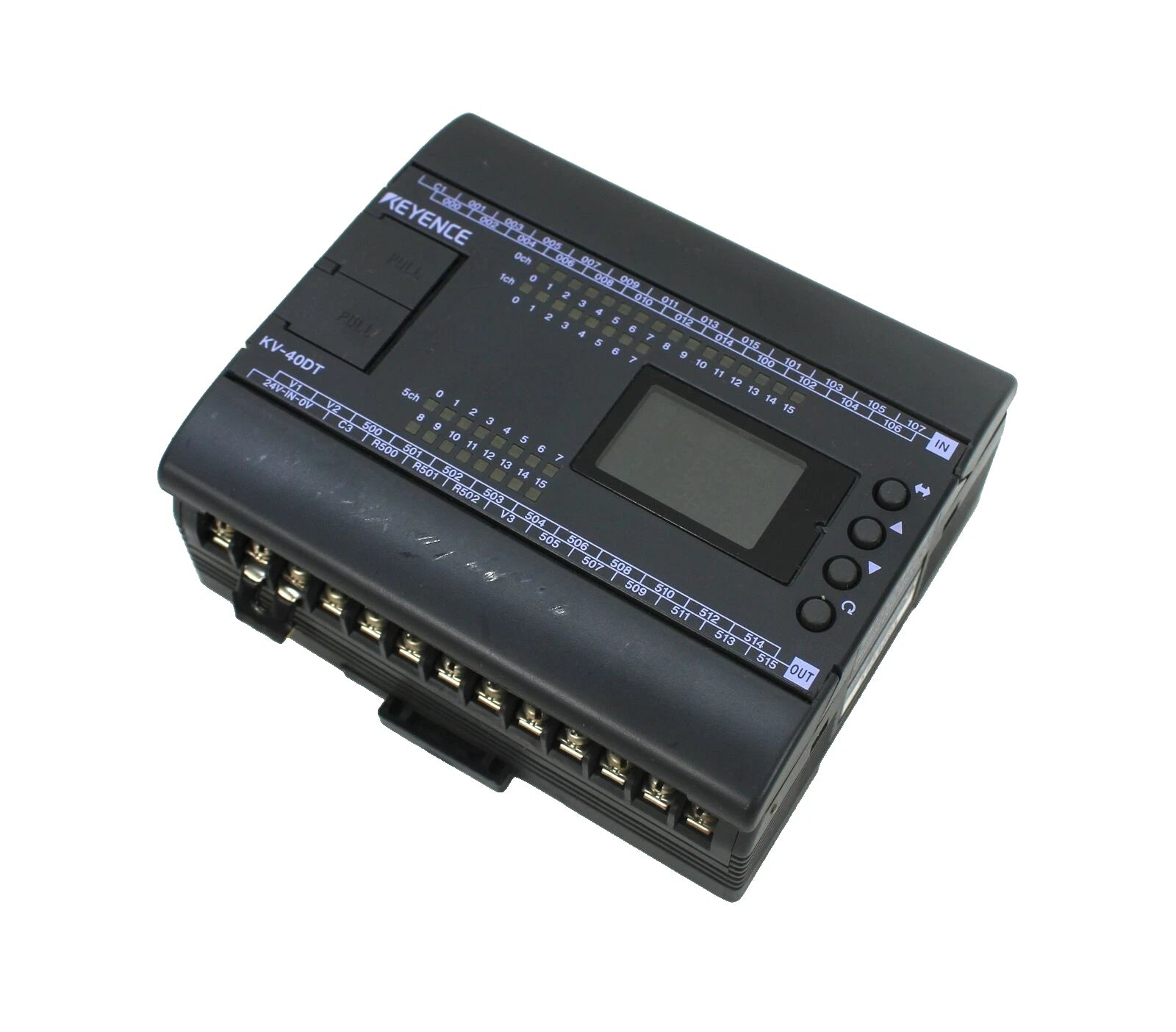

KV-40DT | Keyence 24 VDC PLC Base Unit, 24 Inputs / 16 Sink Outputs, DC Power Type
- Regular price
- $319.00
- Sale price
- $319.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: KV-40DT
Description
The Keyence KV-40DT is a DC power supply type PLC base unit designed for industrial automation and control systems. It features 24 inputs and 16 transistor (sink) outputs, operating on a 24 VDC supply, and provides high noise resistance, vibration durability, and reliable performance in demanding factory environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | PLCs/Machine Control |
| Part Number | KV-40DT |
| Subcategory | PLC Module/Rack |
| Type | DC power supply type base unit |
| Input Power Supply Voltage | 24 VDC (+10%, -20%) |
| Allowable Instantaneous Outage Time | Less than 2 ms |
| Internal Current Consumption | 120 mA or less |
| Inputs | 24 points |
| Outputs | 16 transistor (sink) outputs |
| Operating Temperature | 0 to +50°C (32 to 122°F) |
| Operating Humidity | 35 to 85 % RH (no condensation) |
| Storage Temperature | -20 to +70°C (-4 to +158°F) |
| Withstand Voltage | 1,500 VAC for 1 minute (power to I/O terminals) |
| Insulation Resistance | 50 MΩ or more (500 VDC megger) |
| Noise Resistance | 1,500 Vp-p, 1 µs, 50 ns (EN61000-4-2/3/4/6) |
| Shock Resistance | 150 m/s² (15 G), 11 ms, 2 times per axis |
| Vibration Resistance (Intermittent) | 10–57 Hz, 0.075 mm amplitude / 57–150 Hz, 9.8 m/s² acceleration |
| Vibration Resistance (Continuous) | 10–57 Hz, 0.035 mm amplitude / 57–150 Hz, 4.9 m/s² acceleration |
| Environmental Atmosphere | Non-corrosive, dust-free |
| Cooling Method | Natural air cooling |
| Weight | Approx. 280 g (0.62 lbs) |
Information About KV-40DT
The KV-40DT is part of the Keyence KV Visual PLC Series, offering compact, high-speed control with easy expansion and programming flexibility. It supports a 24 VDC power input and maintains stability during brief power interruptions of less than 2 ms. Engineered for rugged applications, the unit withstands 1,500 VAC isolation voltage and complies with EN61000-4-2/3/4/6 noise resistance standards. Operating in a temperature range of 0 to 50°C (32 to 122°F) and humidity from 35% to 85% RH, the KV-40DT provides dependable operation for machine control, process automation, and monitoring applications.
Key Features:
- Integrated Base Unit: Combines 24 inputs and 16 transistor (sink) outputs in one compact PLC module.
- Stable Power Design: Operates from 24 VDC ±10%, -20%, with less than 2 ms allowable outage time.
- Low Power Consumption: Internal current draw of 120 mA or less, optimized for energy-efficient control.
- Rugged Construction: Withstands 1,500 VAC for 1 minute between power and I/O terminals.
- High Noise Immunity: Tolerates 1,500 Vp-p noise pulses (1 µs, 50 ns), compliant with EN61000 standards.
- Environmental Protection: Designed for dust-free, non-corrosive gas environments to ensure longevity.
- Vibration Resistant: Endures 10–150 Hz vibration with amplitudes of 0.075 mm / 0.035 mm and acceleration up to 9.8 m/s².
- Shock Resistant: Meets JIS C 0041, withstanding 150 m/s² impact (11 ms, 2 cycles per axis).
- Wide Temperature Range: Operates safely from 0 to 50°C, and stores between -20 to +70°C.
- Compact and Lightweight: Simplifies integration into control panels with a base weight of 280 g.
The KV-40DT delivers the durability, precision, and reliability essential for PLC-based control in automated manufacturing and process systems.
