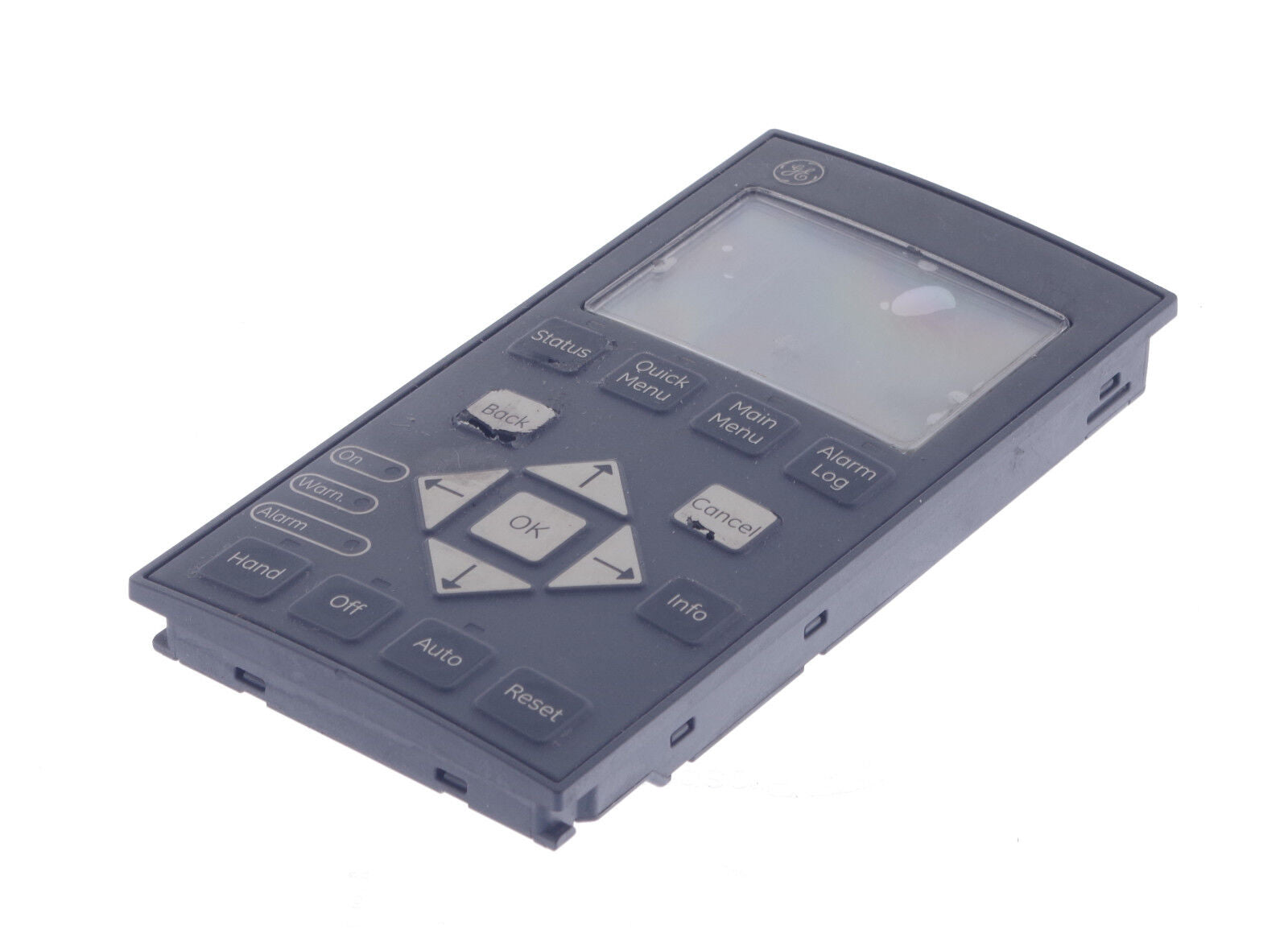

KYPDACGP1 | GE Graphical Keypad for AF-600 Drives with LCD Display and Multi-Language Support
- Regular price
- $1,139.00
- Sale price
- $1,139.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: KYPDACGP1
Description
The GE KYPDACGP1 is a graphical replacement keypad designed for configuration, monitoring, and operation of AF-600 series drives. It features an LCD display, multi-language support, and clear status indication to streamline user interaction with drive parameters. The KYPDACGP1 integrates seamlessly with all AF-600 drive horsepower ratings to ensure consistent interface functionality across installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Drive Keypad |
| Part Number | KYPDACGP1 |
| Subcategory | GE AF-600 Accessories |
| Series | AF-600 |
| Display Type | Six-line alphanumeric LCD |
| Compatibility | All AF-600 drive horsepower ratings |
| Mounting Options | Local panel mount or remote mount |
| Protection Rating (Remote) | IP65 |
| Status LED Indicators | Green (run), yellow (warning), red (alarm), amber (menu/H-O-A) |
| Supported Features | CopyCat, trending, password protection |
| Trending Parameters | Speed, power, frequency |
| Keys/Functions | Status, quick menu, main menu, alarm log, back, cancel, info, H/O/A, reset |
| Parameter Sets | Stores up to four complete configurations |
| Languages Supported | Multi-language interface |
Information About KYPDACGP1
The KYPDACGP1 is a graphical operator keypad developed for the GE AF-600 drive family, providing a consistent user interface for drives of all horsepower ranges. Its construction includes a six-line alphanumeric LCD display, a full set of navigation keys, and LED indicators for drive status, warnings, and alarms. The keypad supports both panel mounting and remote mounting, with an IP65 rating when externally installed on an enclosure. Typical usage includes drive programming, status monitoring, parameter adjustments, and accessing diagnostic information using features such as CopyCat, trending displays, password protection, and multiple parameter set storage.
Key Features
- Universal AF-600 compatibility: Works with all horsepower ratings in the GE AF-600 drive series.
- Six-line LCD display: Provides clear alphanumeric data for monitoring and configuration.
- Multi-language interface: Supports a range of languages for international use.
- CopyCat functionality: Enables fast parameter upload/download between drives.
- Remote mount capability: Achieves IP65 protection when panel-mounted externally.
- LED status indicators: Displays operating, warning, alarm, and menu/H-O-A status via color-coded LEDs.
- Comprehensive keypad controls: Includes status, quick menu, main menu, alarm log, reset, and navigation keys.
- Trending visualization: Offers graphical displays of speed, power, or frequency.
The KYPDACGP1 delivers the reliability and precision required for effective drive monitoring and parameter management.
