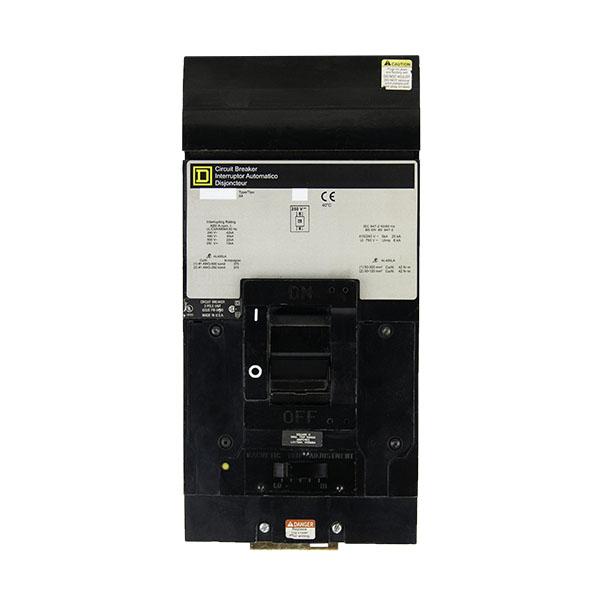

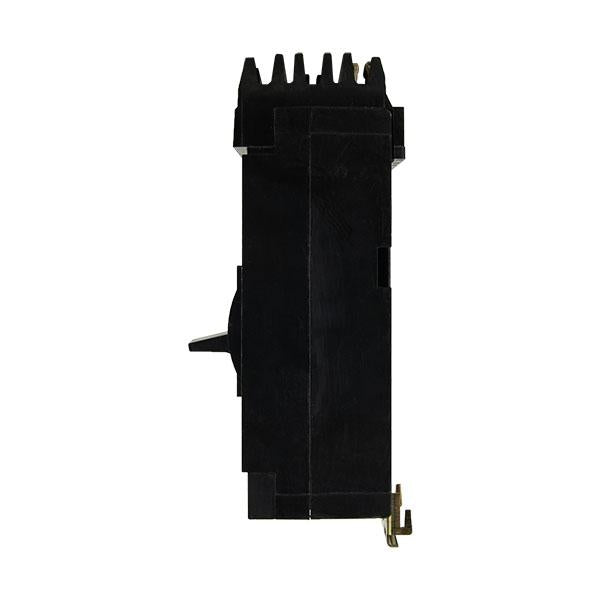

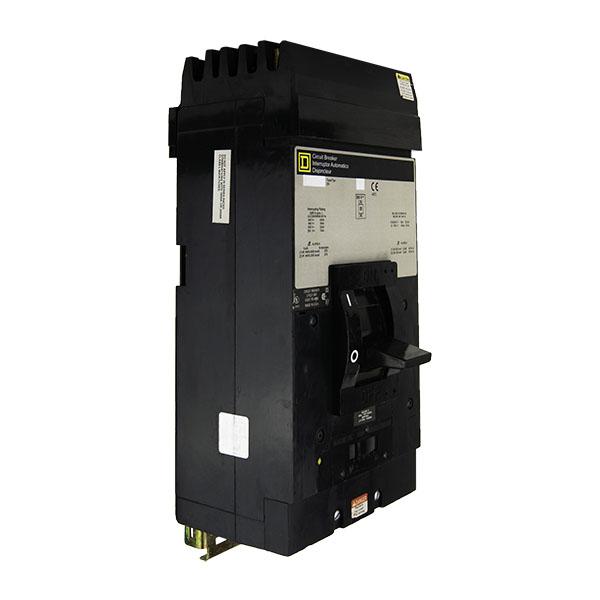

LA26300 | Square D 300A 2-Pole 600V I-Line Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $1,708.00
- Sale price
- $1,708.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LA26300
Description
The Square D LA26300 is a 2-pole thermal magnetic molded case circuit breaker designed for dependable protection of electrical systems up to 600VAC. Rated for 300 amps with a breaking capacity of 30kA at 480V, it provides effective defense against overloads and short circuits. The I-Line plug-in connection ensures easy installation and secure integration into commercial and industrial power distribution systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breakers |
| Part Number | LA26300 |
| Subcategory | Molded Case Circuit Breakers |
| Series | LA |
| Rated Current (In) | 300 A |
| Voltage Rating | 600 VAC |
| Interrupting Rating | 30 kA @ 480 V |
| Trip Unit Type | Thermal-Magnetic |
| Trip Functions | LI – Long-Time and Instantaneous |
| Number of Poles | 2 |
| Connection Type | I-Line Style Plug-In |
| Wiring Configuration | 2-Wire |
| Mounting Type | I-Line Panelboard Mount |
| Phase | Single Phase (AC) |
| Certifications | UL Listed, CSA Approved |
| Country of Origin | Mexico |
| Dimensions (H x W x D) | 11 in x 6 in x 5.84 in |
| Weight | 7.38 kg (16.27 lb) |
Information About LA26300
The LA26300 is part of the Square D LA Series, known for its rugged molded case construction and high reliability under demanding load conditions. This model utilizes a thermal-magnetic trip unit, combining long-time and instantaneous protection to prevent damage from current surges or sustained overloads. Designed with an I-Line style plug-in connection, it supports fast and safe mounting in I-Line panelboards. Suitable for both transformer-fed and generator-supplied distribution systems, it complies with UL and CSA standards for dependable electrical protection.
Key Features:
- High Current Capacity: Rated for 300A, supporting heavy-duty industrial and commercial loads.
- Voltage Rating: Operates up to 600VAC, ensuring broad compatibility with various systems.
- Interrupting Rating: Provides 30kA@480V short-circuit protection for enhanced safety.
- Thermal-Magnetic Trip Unit: Delivers long-time and instantaneous protection for both overload and fault conditions.
- I-Line Plug-In Mounting: Enables quick, secure, and tool-free installation in compatible panelboards.
- Durable Molded Case: Designed for long service life and resistance to mechanical stress.
- UL and CSA Certified: Meets stringent safety and performance standards for electrical equipment.
- Compact Dimensions: Fits standard panel configurations with efficient space usage.
The LA26300 delivers the reliability and precision required for safe and efficient power distribution in industrial and commercial installations.
