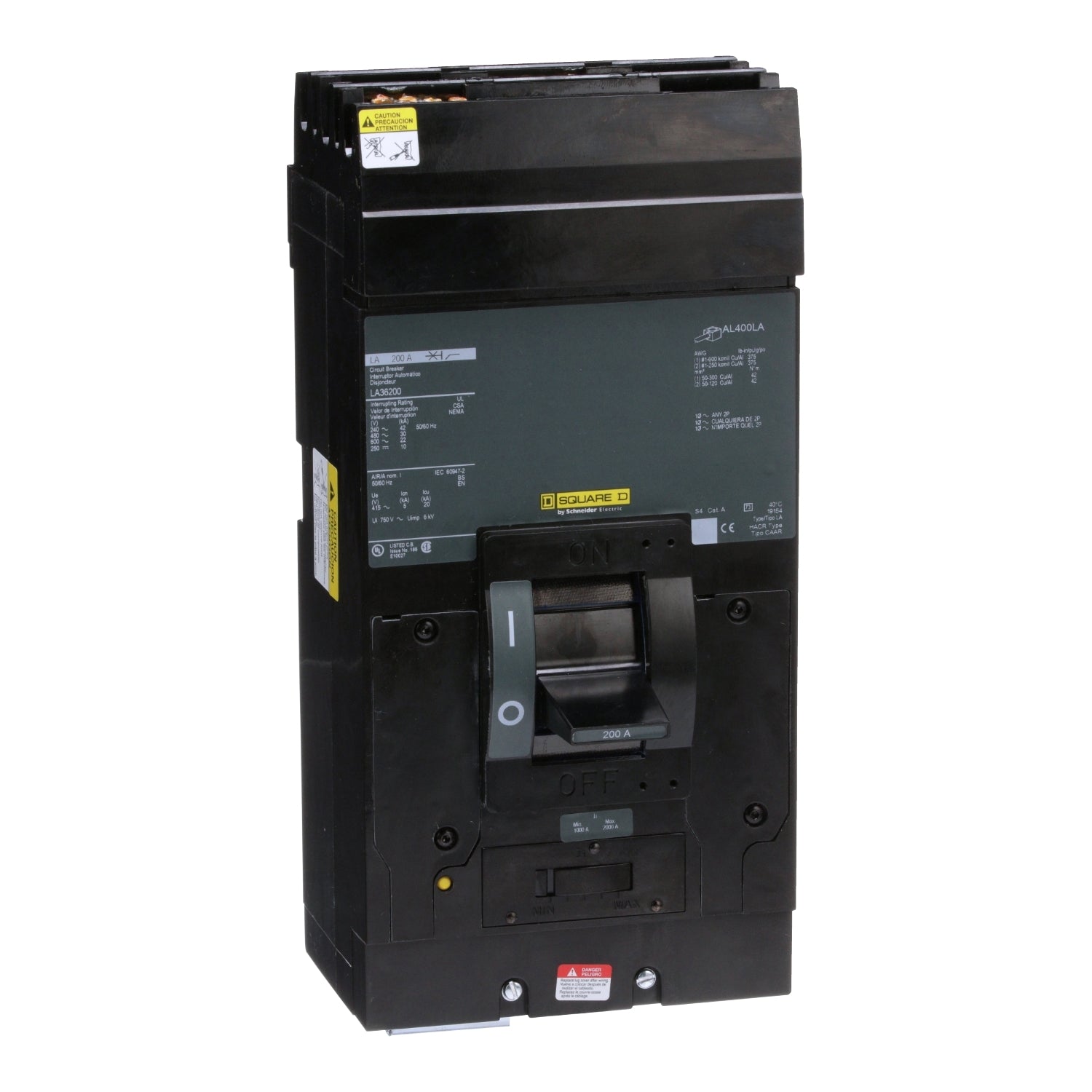

LA36200 | Schneider Electric Circuit Breaker
- Regular price
- $5,279.00
- Sale price
- $5,279.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LA36200
Description
The LA36200 is a Square D FA/LA Molded Case Circuit Breaker designed for robust protection of electrical systems against overload damage. Featuring a 200A capacity, 3 poles, and operational voltages of 600VAC and 250VDC, it ensures reliable performance in various applications. With a 22kA interrupting capacity at 600VAC and a 10kA capacity at 250VDC, it effectively safeguards distribution systems supplied by both transformers and engine generator sets.
Technical Specifications
|
Part # |
LA36200 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
200 A |
|
Number of Poles |
3P |
|
Breaking Capacity Code |
A |
|
Mounting Mode |
I-Line |
|
Wiring Configuration |
3-wire |
|
Magnetic Hold Current |
1000 A |
|
Magnetic Tripping Current |
2000 A |
|
Terminal Identifier |
AL400LA |
|
Height |
11 in (279.40 mm) |
|
Width |
6 in (152.40 mm) |
|
Depth |
5.84 in (148.34 mm) |
|
Circuit Breaker Application |
HACR rated |
Information About LA36200
The LA36200 is a circuit breaker belonging to the Square D FA/LA Molded Case Circuit Breakers series. It is engineered to safeguard electrical systems against damage stemming from overloads. With a rated current capacity of 200A, it operates as a three-pole configuration. It is designed to operate within a voltage range of 600VAC for alternating current and possesses a breaking capacity of 22kA. Additionally, it accommodates direct current (DC) applications with a voltage rating of 250VDC and a breaking capacity of 10kA.
The circuit breaker is categorized under the I-Line mounting mode, ensuring compatibility and ease of installation within various electrical systems. Its thermal magnetic mechanism enables efficient protection by responding to both thermal and magnetic overcurrent situations.
Primarily, the LA36200 is suitable for employment in distribution systems supplied by transformers and engine generator sets. This includes applications across industrial, commercial, and residential settings where reliable overcurrent protection is imperative for preserving the integrity and functionality of electrical networks.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
