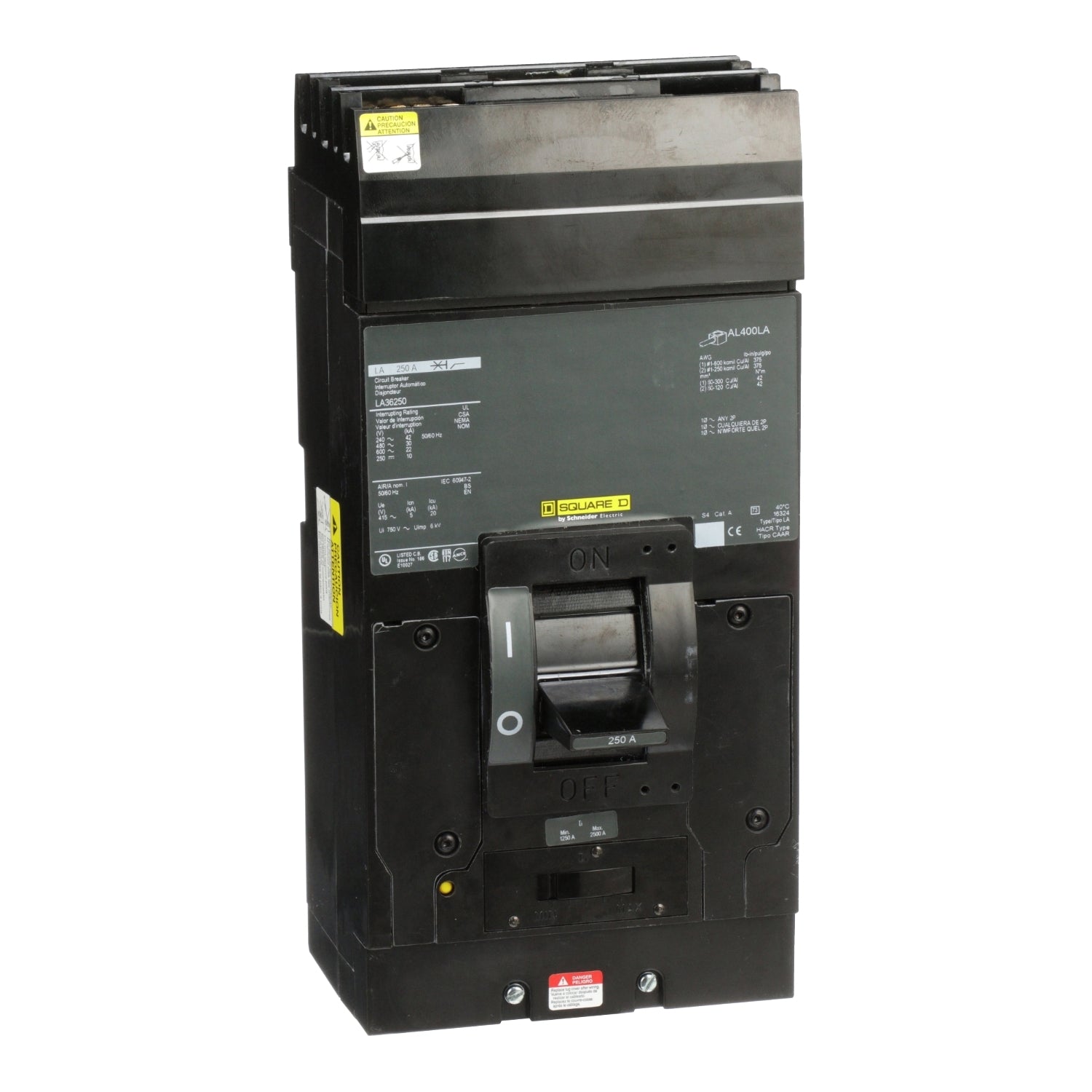

LA36250 | Schneider Electric Circuit Breaker
- Regular price
- $3,405.00
- Sale price
- $3,405.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LA36250
Description
The LA36250 is an I-Line™ circuit breaker designed by Square D™ for power distribution in AC or DC systems. These circuit breakers are integral components of cULus-certified panelboards, complying with UL and CSA standards under UL File E33139. They are suitable for use as service entrance equipment and are available in configurations ranging from 400A to 1200A for main lugs only, and 100A to 1200A for main circuit breakers.
Built to meet stringent standards including UL, CSA, NFPA, NEMA, and W-P, I-Line circuit breaker panelboards ensure reliable performance and safety. The LA36250 is a 3-pole circuit breaker with a rated current of 250A and a breaking capacity of 22kA at 600VAC. It features thermal-magnetic trip unit technology, providing robust protection against overloads and short circuits.
Technical Specifications
|
Part # |
LA36250 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
250 A |
|
Number of Poles |
3P |
|
Breaking Capacity Code |
A |
|
Mounting Mode |
I-Line |
|
Wiring Configuration |
3-wire |
|
Magnetic Hold Current |
1250 A |
|
Magnetic Tripping Current |
2500 A |
|
Terminal Identifier |
AL400LA |
|
Dimensions |
|
|
Height |
11 in (279.40 mm) |
|
Width |
6 in (152.40 mm) |
|
Depth |
5.84 in (148.34 mm) |
Information About LA36250
The LA36250 circuit breaker, part of the Square D™ I-Line™ series, is designed for use in AC or DC systems, providing robust protection against overcurrents. These circuit breakers are integral components of power distribution panelboards intended for various applications, including service entrance equipment and main circuit breaker installations.
The I-Line circuit breaker panelboards are prominently marked with cULus (UL and CSA standards certified by UL) and are UL Listed under File E33139 by Underwriters Laboratories® (UL®). They adhere to rigorous standards such as UL, CSA, NFPA, NEMA, and W-P, ensuring compliance and reliability in diverse electrical environments.
Specifically, the LA36250 is a 3-pole circuit breaker rated at 250A, featuring a thermal-magnetic trip unit technology. It offers a substantial breaking capacity of 22kA at 600VAC, safeguarding electrical systems from potential faults and short circuits. This breaker also supports operations under DC conditions with a breaking capacity of 10kA at 250VDC.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
