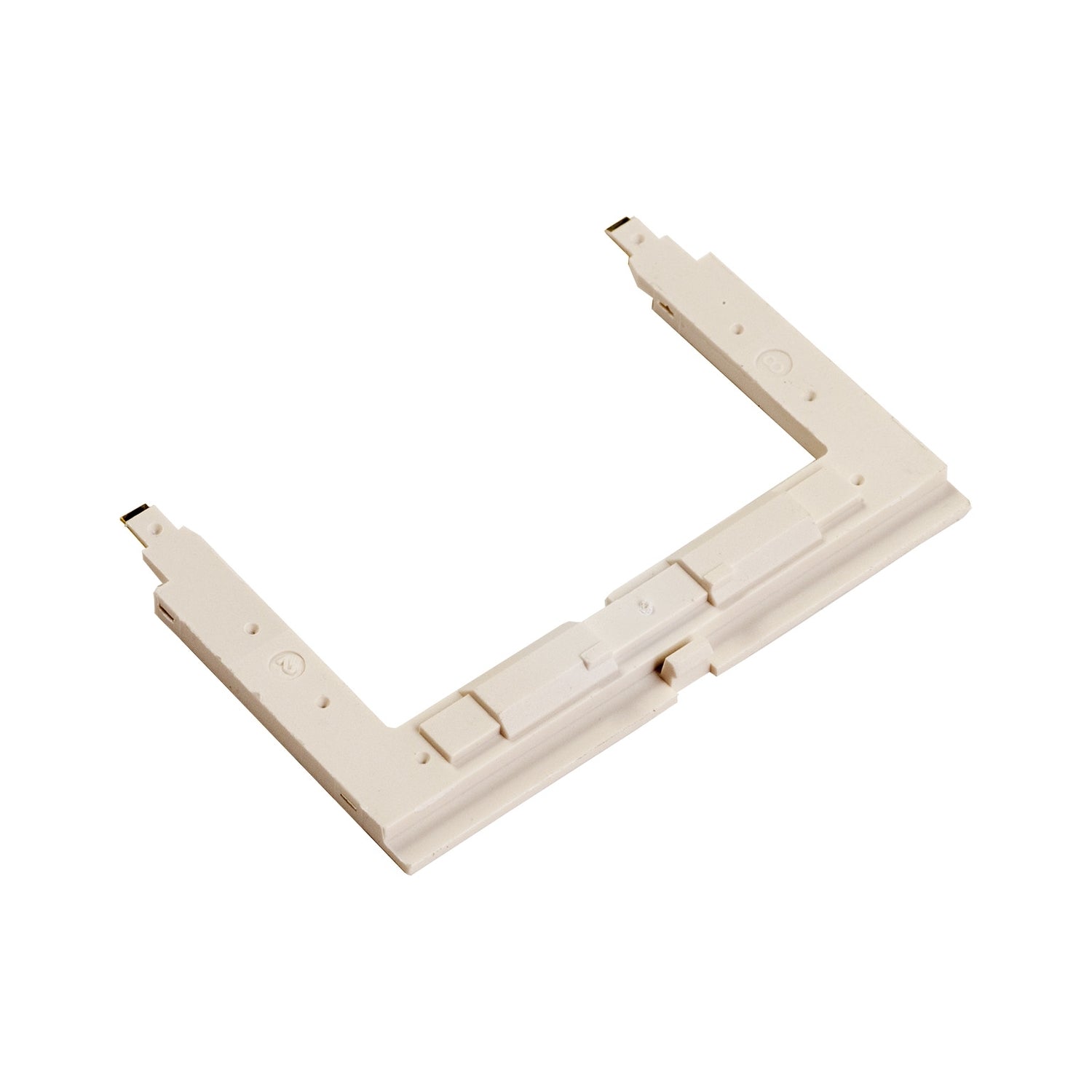

LAD4TBDL | Schneider Electric TeSys D Contactor Suppressor Module 24 V DC
- Regular price
- $89.00
- Sale price
- $89.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LAD4TBDL
Description
The Schneider Electric LAD4TBDL is a suppressor module designed to protect DC control circuits in TeSys D contactors and CAD control relays. The LAD4TBDL limits transient overvoltage using bidirectional peak limiting diode technology for reliable contactor operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Panel Accessories |
| Part Number | LAD4TBDL |
| Subcategory | Surge Arrestor/Suppressor Range |
| Manufacturer | Schneider Electric |
| Device Short Name | LAD4 |
| Product Type | Suppressor module |
| Suppressor Technology | Bidirectional peak limiting diode |
| Control Circuit Voltage (Uc) | 12–24 V DC |
| Maximum Peak Voltage | 2 × Uc |
| Mounting Location | Side |
| Mounting Mode | Clip-on |
| IP Rating | IP2X (IEC 60529) |
| Operating Temperature | -25…55 °C |
| Storage Temperature | -40…80 °C |
| Net Weight | 0.012 kg |
Information About LAD4TBDL
The LAD4TBDL is part of the Schneider Electric TeSys D accessory range and is designed to suppress voltage transients generated when DC contactor coils are de-energized. It is compatible with TeSys D contactors LC1D09–D38 and LC1DT20–DT40, as well as CAD control relays, ensuring protection of sensitive control components. The module mounts directly on the side of the contactor using a clip-on design without increasing the device footprint. It is engineered to meet industrial reliability requirements while complying with environmental regulations under Schneider Electric’s Green Premium program.
Key Features
- Bidirectional peak limiting diode technology: Limits transient voltage to a maximum of twice the control voltage to protect control circuits.
- DC control circuit compatibility: Designed for 12–24 V DC control voltages used in TeSys D contactors and CAD relays.
- Side clip-on mounting: Allows fast installation without modifying contactor dimensions or panel layout.
- TeSys D system integration: Specifically engineered for compatibility with Schneider Electric TeSys D contactors and accessories.
- Compact and lightweight design: Adds protection without increasing system size or mechanical load.
- Industrial environmental rating: Operates reliably across wide temperature ranges in control panels.
- Green Premium compliance: Conforms to RoHS and REACh directives for environmental responsibility.
The LAD4TBDL delivers the reliability and precision required for effective suppression of DC coil transients in Schneider Electric TeSys D motor control systems.
