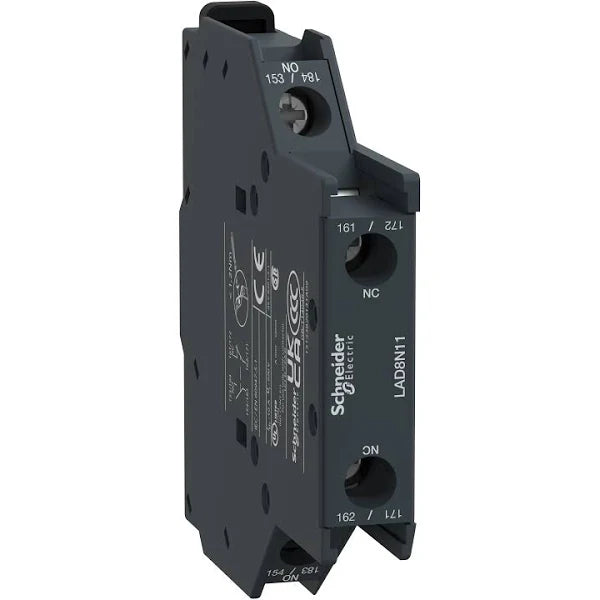

LAD8N11 | Schneider Electric Auxiliary Contact Block
- Regular price
- $47.00
- Sale price
- $47.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: LAD8N11
Description
The LAD8N11 Schneider Electric Auxiliary Contact Block is specifically designed for integration with Tesys D contactors, ranging from 9 Amps to 150 Amps. This auxiliary contact module mounts conveniently on the side of the contactors, providing one normally open (NO) and one normally closed (NC) contact that are suitable for control circuit applications.
Tesys D contactors are engineered for seamless integration into various control systems and are versatile for creating motor starters across a wide range of applications. They offer straightforward setup procedures while maintaining a compact footprint. These contactors feature dual horsepower and kilowatt motor ratings, ensuring compatibility for international use.
Technical Specifications
|
Part # |
LAD8N11 |
|
Category |
Contactors & Starters |
|
Subcategory |
Contact Kit mounting location: Side |
|
Pole contact composition |
1 NO + 1 NC |
|
Contacts operation |
Instantaneous |
|
[Ue] rated operational voltage |
690 V AC 25...400 Hz |
|
[Ith] conventional free air thermal current |
10 A (at 140 °F (60 °C)) |
|
Protection type |
GG fuse 10 A |
|
Mechanical durability |
30 Mcycles |
|
Minimum switching current |
5 mA |
|
Minimum switching voltage |
17 V |
|
Height |
2.99 in (76 mm) |
|
Width |
0.49 in (12.5 mm) |
|
Depth |
2.99 in (76 mm) |
|
Environmental characteristic |
Normal environment |
|
IP degree of protection |
IP20 conforming to IEC 60529 |
|
Protective treatment |
TH IEC 60068 |
|
Ambient air temperature for storage |
-76…176 °F (-60…80 °C) |
|
Ambient air temperature for operation |
23…140 °F (-5…60 °C) |
|
Operating altitude |
3000 m |
Information About LAD8N11
The LAD8N11 Schneider Electric Auxiliary Contact Block is designed for integration with Tesys D contactors, offering versatile functionality within control systems. This auxiliary contact mounts on the side of contactors rated from 9A to 150A. It features one Normally Open (NO) and one Normally Closed (NC) contact, suitable for control circuit applications.
Tesys D contactors are engineered for seamless integration into various control systems, enabling their use in creating motor starters across diverse applications. These contactors are known for their straightforward setup process and compact dimensions, ensuring ease of installation. They support both horsepower and kilowatt motor ratings, catering to international standards and requirements.
The LAD8N11 auxiliary contact block is complemented by an extensive range of accessories, facilitating customization to meet the specific needs of different applications. It adheres to stringent safety and quality standards with certifications including UL, CSA, GOST, RINA, BV, CCC, DNV, GL, and LROS, ensuring compliance across various regulatory environments.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
