LAD9R1 | Schneider Electric Kit for Assembling 3P Reversing Contactors
LAD9R1 | Schneider Electric Kit for Assembling 3P Reversing Contactors
Part #: LAD9R1 Manufactured by: Schneider Electric

LAD9R1 | Schneider Electric Kit for Assembling 3P Reversing Contactors

Regular price
$39.00
Sale price
$39.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The LAD9R1 is a kit designed for assembling 3-pole reversing contactors, specifically the LC1D09-D38 models. It is part of...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: LAD9R1
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
LAD9R1 | Schneider Electric Kit for Assembling 3P Reversing Contactors
    LAD9R1 | Schneider Electric Kit for Assembling 3P Reversing Contactors
LAD9R1 | Schneider Electric Kit for Assembling 3P Reversing Contactors
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: LAD9R1

Description / Specifications

Description

LAD9R1 - Kit for Assembling 3P Reversing Contactors, LC1D09-D38 with Screw Clamp Terminals, Without Electrical Interlock

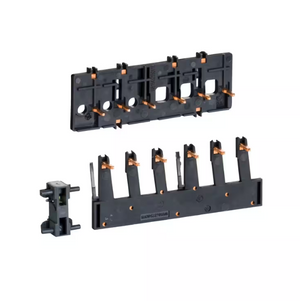

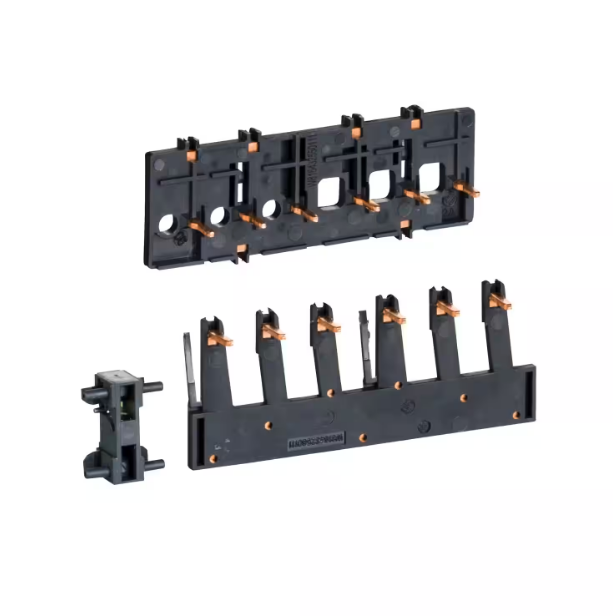

The LAD9R1 is a TeSys D kit designed for the assembly of 3-pole reversing contactors, specifically for LC1D09-D38 models. This kit facilitates the horizontal mounting of two identical contactors, utilizing screw clamp terminals for connections. The kit includes a mechanical interlock LAD9V2, a set of three parallel bars LAD9V5, and a set of three reverser bars LAD9V6. The assembly conforms to RoHS/REACh regulation. This kit does not include electrical interlocking.





Technical Specifications


Part #

LAD9R1

Category

Contactors & Starters

Subcategory

Contact Kit

Range of Product

TeSys Deca

Range

TeSys Linergy

Device short name

LAD9

Product or Component Type

Kits for reversing contactor

Poles description

3P

Kit composition

Mechanical interlock, Set of power connection

Net Weight

0.10 lb(US) (0.045 kg)



Information About LAD9R1

LAD9R1 - Kit for Assembling 3P Reversing Contactors, LC1D09-D38 with Screw Clamp Terminals, Without Electrical Interlock

The LAD9R1 is a kit designed for the assembly of 3-pole reversing contactors, specifically the LC1D09-D38 models. This kit is part of the TeSys Deca range and falls under the TeSys Linergy series. The primary application of the LAD9R1 kit is to facilitate the horizontal mounting of two identical contactors, enabling their effective operation in reversing contactor configurations. The connection method employed in this kit utilizes screw clamp terminals, ensuring a secure and reliable connection.

The kit includes several key components essential for its functionality. One of the primary components is the mechanical interlock, designated as LAD9V2. This mechanical interlock is crucial for preventing the simultaneous closure of the contactors, thereby ensuring safe operation without the need for electrical interlocking. Additionally, the kit comprises a set of three parallel bars, identified as LAD9V5, and a set of three reverser bars, identified as LAD9V6. These bars are necessary for the proper power connection and alignment of the contactors.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

LAD9R1 - Kit for Assembling 3P Reversing Contactors, LC1D09-D38 with Screw Clamp Terminals, Without Electrical Interlock

The LAD9R1 is a TeSys D kit designed for the assembly of 3-pole reversing contactors, specifically for LC1D09-D38 models. This kit facilitates the horizontal mounting of two identical contactors, utilizing screw clamp terminals for connections. The kit includes a mechanical interlock LAD9V2, a set of three parallel bars LAD9V5, and a set of three reverser bars LAD9V6. The assembly conforms to RoHS/REACh regulation. This kit does not include electrical interlocking.





Technical Specifications


Part #

LAD9R1

Category

Contactors & Starters

Subcategory

Contact Kit

Range of Product

TeSys Deca

Range

TeSys Linergy

Device short name

LAD9

Product or Component Type

Kits for reversing contactor

Poles description

3P

Kit composition

Mechanical interlock, Set of power connection

Net Weight

0.10 lb(US) (0.045 kg)



Information About LAD9R1

LAD9R1 - Kit for Assembling 3P Reversing Contactors, LC1D09-D38 with Screw Clamp Terminals, Without Electrical Interlock

The LAD9R1 is a kit designed for the assembly of 3-pole reversing contactors, specifically the LC1D09-D38 models. This kit is part of the TeSys Deca range and falls under the TeSys Linergy series. The primary application of the LAD9R1 kit is to facilitate the horizontal mounting of two identical contactors, enabling their effective operation in reversing contactor configurations. The connection method employed in this kit utilizes screw clamp terminals, ensuring a secure and reliable connection.

The kit includes several key components essential for its functionality. One of the primary components is the mechanical interlock, designated as LAD9V2. This mechanical interlock is crucial for preventing the simultaneous closure of the contactors, thereby ensuring safe operation without the need for electrical interlocking. Additionally, the kit comprises a set of three parallel bars, identified as LAD9V5, and a set of three reverser bars, identified as LAD9V6. These bars are necessary for the proper power connection and alignment of the contactors.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
