LAD9R1V | Schneider Electric TeSys D Reversing Mechanical Interlock Kit With Electrical Interlocking
- Regular price
- $45.00
- Sale price
- $45.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LAD9R1V
Description

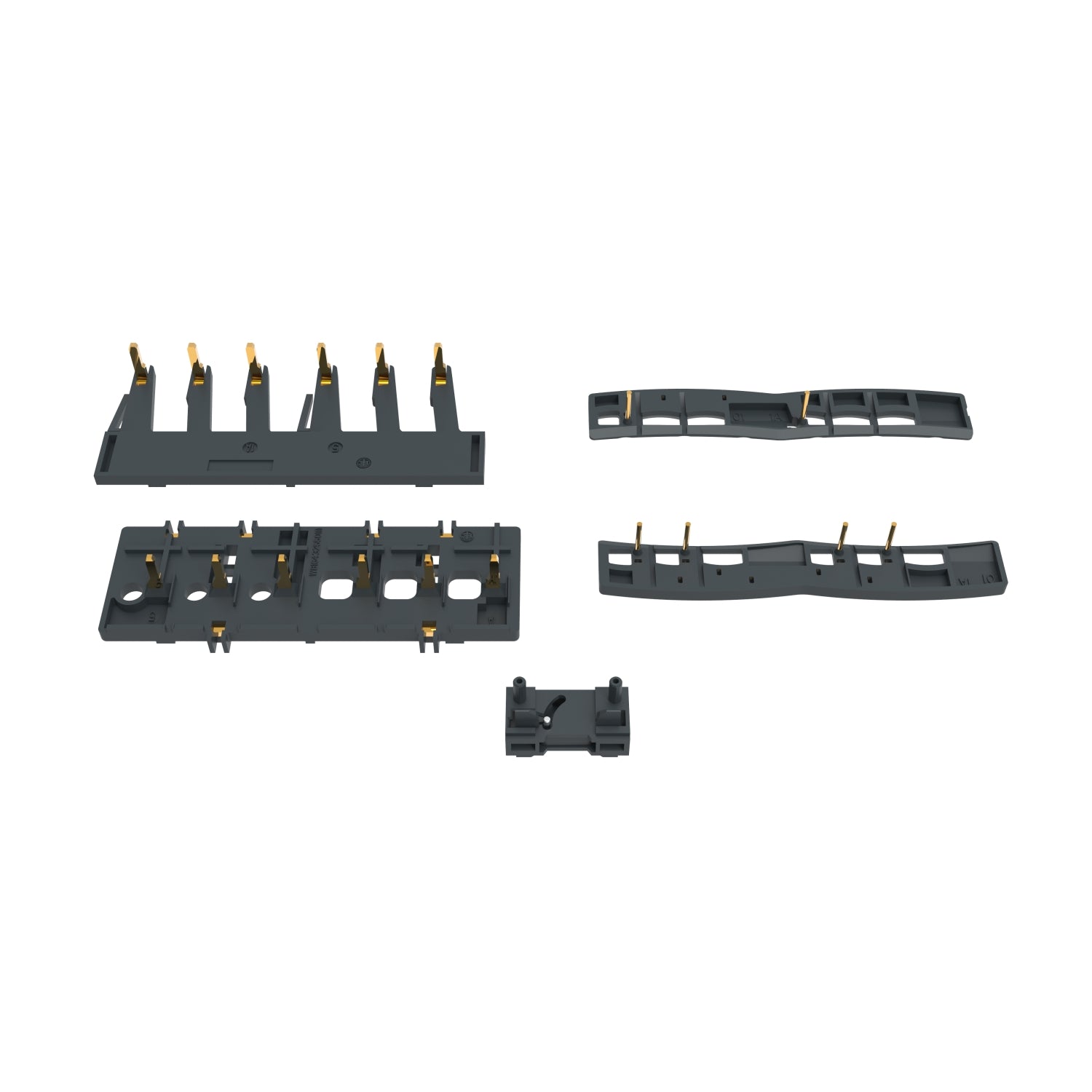

The Schneider Electric LAD9R1V is a reversing mechanical interlock kit designed for TeSys D contactors, providing both mechanical and electrical interlocking to ensure safe and reliable reversing control. By preventing simultaneous energization of paired contactors, the kit enhances system protection and reduces the risk of equipment damage. Engineered for compatibility with TeSys D assemblies, it supports efficient installation and dependable performance in industrial motor control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Contactors & Starters |
| Part Number | LAD9R1V |
| Subcategory | Contact Kit / Control Kit |
| Accessory Type | Mounting Kit / Interlock Kit |
| Contact Form | 2 NC |
| Family Name | TeSys Family |
| Series | TeSys D Series |
| For Use With | Reversing Contactor With Electrical Interlock (LC1D09–D38) |
| Function | Contactor Interlocking |
| Primary Type | Contactor |
| Relay Type | Electromechanical |
| Components Included | LAD9V2 Mechanical Interlock, LAD9V1 Electrical Interlock, LAD9V5 Parallel Bars, LAD9V6 Reverser Bars |
Information About LAD9R1V
The LAD9R1V interlock kit is engineered for assembling reversing contactor combinations within the TeSys D range, specifically LC1D09 to LC1D38. It enables two identical 3-pole contactors to be mounted horizontally with screw-clamp terminal connections while maintaining safe operational sequencing. The kit combines mechanical and electrical interlocking components to ensure that one contactor cannot energize while the other is active, greatly reducing the risk of short circuits or motor damage. This integrated approach enhances system safety and supports compliance with motor control standards. As part of the TeSys D family, the kit aligns with Schneider Electric’s modular motor control architecture, ensuring efficient assembly, compatibility, and long-term reliability.
Key Features:
- Dual Mechanical and Electrical Interlocking: Prevents both contactors from being engaged simultaneously, ensuring safe reversing operations and protecting motors from phase conflicts.
- Complete Reversing Assembly Kit: Includes mechanical interlock, electrical interlock, parallel bars, and reverser bars, providing all components required for a fully compliant reversing setup.
- TeSys D Compatibility: Designed specifically for LC1D09–D38 TeSys D contactors, ensuring perfect mechanical fit and electrical integration.
- Enhanced System Safety: Mechanical lockout physically blocks unwanted movement, while electrical interlocking ensures correct coil sequencing for safe control logic.
- Easy Horizontal Mounting: Supports straightforward installation of two side-by-side contactors using screw clamp terminals and standardized mounting provisions.
- Industrial-Grade Construction: Engineered for electromechanical performance in demanding motor control and reversing applications.
- Compact and Modular Design: Integrates seamlessly into TeSys motor starters, reducing wiring complexity and improving panel organization.
- Compliance and Reliability: Conforms to RoHS/REACh regulations and is compatible with UL and CSA certified TeSys D contactors, ensuring broad acceptance in global installations.
The LAD9R1V delivers the reliability and precision required for safe and efficient reversing contactor assembly in Schneider Electric TeSys D motor control systems.
