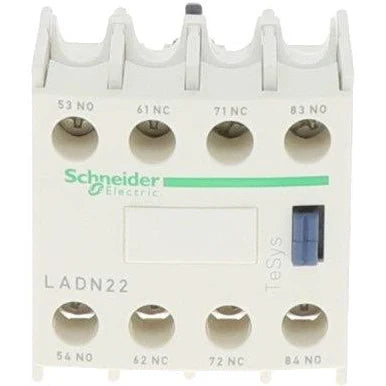

LADN22 | Schneider Electric TeSys D Auxiliary Contact Block 2NO-2NC Front Mount
- Regular price
- $17.00
- Sale price
- $17.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LADN22
Description
The Schneider Electric LADN22 is a TeSys D auxiliary contact block designed to expand the signaling and control capabilities of LC1D contactors. Featuring a configuration of 2 normally open and 2 normally closed contacts, it supports reliable status feedback and interlocking functions in control circuits. Its compact front-mount design enables quick installation while maintaining high endurance for demanding industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Contactors & Starters |
| Part Number | LADN22 |
| Subcategory | Contact Kit / Auxiliary Contact Block |
| Amperage Rating | 0.41 A, 10 A (application dependent) |
| Voltage Rating | 690 VAC |
| Frequency Rating | 25 / 400 Hz |
| Mounting Type | Front Mount |
| Number of Contacts | 2NO – 2NC |
| Operating Cycles | 30,000,000 Cycles |
| Operating Temperature | −5…60 °C |
| Environmental Conditions | IP2X Protection, 3000 m Operating Altitude |
| Series | LAD |
| Suitable For Use With | TeSys D LC1D Contactors |
| Connection Type | Screw Clamp |
| Special Features | GG fuse protection, 5 mA switching current, 17 V switching voltage |
Information About LADN22
The LADN22 auxiliary contact block is part of Schneider Electric’s TeSys D family, intended to augment the functionality of LC1D contactors ranging from 9 A to 150 A. Mounted directly on the front of the contactor, it provides additional NO and NC contacts for control logic, feedback circuits, and interlocks. With a long mechanical lifespan of up to 30 million operating cycles, the block ensures dependable performance in continuous-duty and high-frequency switching environments. Compact and simple to install, it integrates seamlessly into motor starters and automation panels where high reliability and space efficiency are essential.
Key Features:
- Four Additional Control Contacts: Includes 2 NO and 2 NC contacts to expand signaling, feedback, and interlock options for TeSys D contactors.
- Front-Mount Quick Installation: Installs directly on the front face of LC1D contactors, enabling fast assembly without altering wiring or panel layout.
- High Mechanical Durability: Rated for 30 million operating cycles, ensuring long-term reliability in repetitive switching or continuous operation conditions.
- Wide Voltage and Frequency Compatibility: Supports up to 690 VAC and operates across 25–400 Hz applications, allowing use in diverse industrial environments.
- Robust Environmental Performance: IP2X protection and operation up to 3000 m altitude make it suitable for protected control cabinet environments and elevated installations.
- Precision Low-Level Switching: Capable of switching as low as 5 mA at 17 V, supporting signal-level control circuits and PLC interfacing.
- Screw Clamp Terminals: Provides secure, vibration-resistant electrical connections in motor control centers and automation panels.
- Full TeSys D System Integration: Designed to work seamlessly with LC1D contactors, ensuring mechanical compatibility and consistent performance within TeSys motor starter assemblies.
The LADN22 delivers the reliability and precision required for expanding control logic, signaling, and interlocking capabilities in Schneider Electric TeSys D contactor systems.
