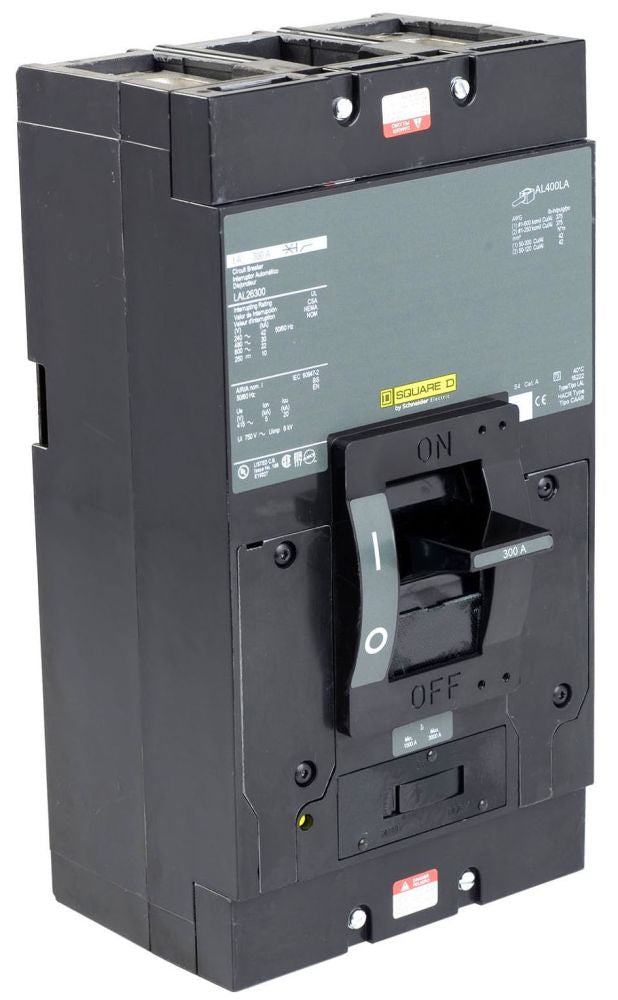

LAL26350 | Square D 350A 2-Pole 600V Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $3,402.00
- Sale price
- $3,402.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LAL26350
Description
The Square D LAL26350 is a 2-pole thermal magnetic molded case circuit breaker designed for industrial and commercial electrical protection. It supports a current rating of 350 amps and operates at 600 VAC or 250 VDC, offering dependable overcurrent and short-circuit protection. Built for durability and performance, this unit ensures reliable circuit isolation in demanding power distribution environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Protection |
| Part Number | LAL26350 |
| Subcategory | Molded Case Circuit Breaker |
| Series | LAL |
| Amperage Rating | 350 A |
| Voltage Rating | 600 VAC / 250 VDC |
| Poles | 2 |
| Trip Unit Type | Thermal Magnetic |
| Interrupting Rating | 30 kAIC @ 480 VAC |
| Mounting Type | Unit Mount |
| Connection Type | Feed-Thru / Lug |
| Protection Functions | Long Time & Instantaneous Trip |
| Approvals | UL, CSA, IEC |
| Frame Type | LAL Frame |
| Actuator Type | Toggle |
| Torque Rating | 115.06 lbf·in (13 N·m) |
| Operating Temperature | 40 °C |
| Dimensions (H × W × D) | 11 × 6 × 5.84 in |
| Weight | 14.1 lb (6.4 kg) |
Information About LAL26350
The LAL26350 is part of Square D’s LAL Series, known for its robust molded case construction and thermal magnetic trip technology. It is designed for use in panelboards, switchboards, motor control centers, and combination starters, supporting unit-mounted installation. The breaker integrates long-time and instantaneous trip functions to safeguard connected equipment under overload or fault conditions. With UL, CSA, and IEC certifications, the LAL26350 meets stringent global standards for industrial electrical protection.
Key Features:
- Rated Current: 350 Amps — Supports medium-to-high load circuits in commercial and industrial systems.
- Voltage Rating: 600 VAC / 250 VDC — Compatible with both AC and DC applications.
- Interrupting Capacity: 30 kAIC @ 480 VAC — Ensures fast and reliable fault clearing.
- Trip Unit: Thermal Magnetic (Long Time & Instantaneous) — Provides precise protection against overloads and short circuits.
- Mounting Type: Unit Mount — Enables secure installation in switchboards or panel assemblies.
- Terminal Connection: Lugs (Line & Load) — Simplifies wiring and enhances conductivity.
- Compliance: UL, CSA, IEC Certified — Meets major international safety standards.
- Operating Temperature: 40°C Rated — Ensures reliable function under standard operating conditions.
The LAL26350 delivers the reliability and precision required for safe and efficient power distribution in heavy-duty electrical systems.
