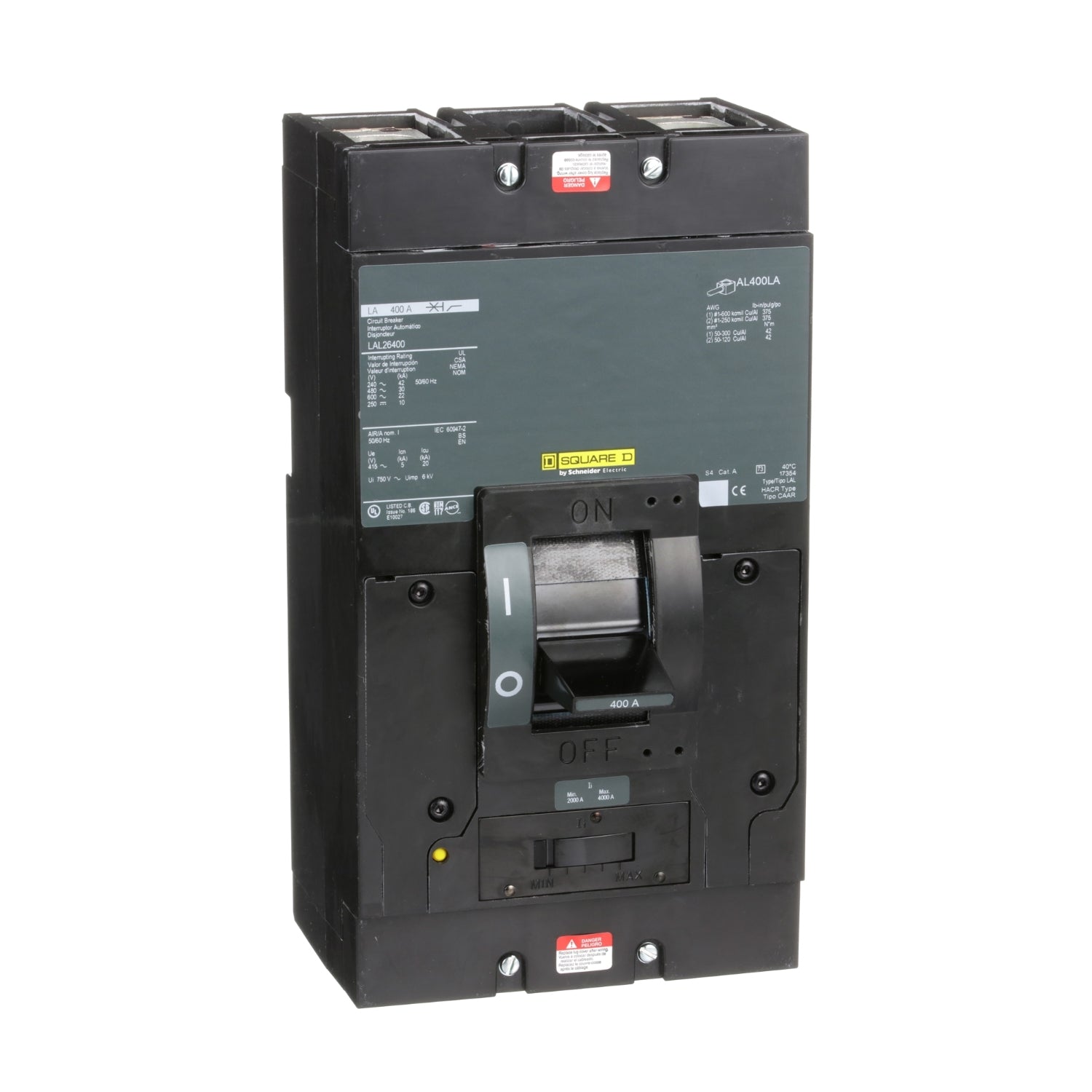

LAL26400 | Schneider Electric Circuit Breaker
- Regular price
- $2,720.00
- Sale price
- $2,720.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LAL26400
Description
The LAL26400 circuit breaker by Square D, from the LA series, offers robust thermal magnetic protection designed for automatic circuit interruption under overload or short circuit conditions, or manual interruption as needed. Each pole incorporates thermal (overload) and magnetic (short circuit) sensing elements to ensure reliable operation. The Push-to-Trip feature allows for manual tripping without exposure to live parts, enhancing safety during maintenance or fault conditions.
Technical Specifications
|
Part # |
LAL26400 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product or Component Type |
Circuit breaker |
|
Trip Unit Technology |
Thermal-magnetic |
|
Line Rated Current |
400 A |
|
Number of Poles |
2P |
|
Mounting Mode |
Unit mount |
|
Magnetic Hold Current |
2000 A |
|
Magnetic Tripping Current |
4000 A |
|
Height |
11 in (279.40 mm) |
|
Width |
6 in (152.40 mm) |
|
Depth |
5.84 in (148.34 mm) |
|
Circuit Breaker Application |
HACR rated |
Information About LAL26400
The Square D LAL26400 molded case circuit breaker offers robust thermal magnetic protection, designed primarily for automatically opening circuits during overload or short circuit conditions, as well as for manual operation. Each pole of the LA circuit breaker incorporates both thermal (overload) and magnetic (short circuit) sensing elements. The Push-to-Trip feature enables safe manual tripping without exposure to live components.
This 2-pole unit mount circuit breaker is rated for 400A at 600VAC, equipped with lugs for secure connections. It boasts an impressive interrupting rating of 22kA at 600VAC and 10kA at 250VDC, ensuring reliable performance in handling high fault currents to safeguard electrical systems.
The LAL26400 circuit breakers meet rigorous safety standards, including UL 489, CSA, and IEC certifications, underscoring their compliance with international safety and performance requirements. These certifications affirm the reliability and suitability of the LA series breakers for various industrial and commercial applications where robust circuit protection is essential.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
