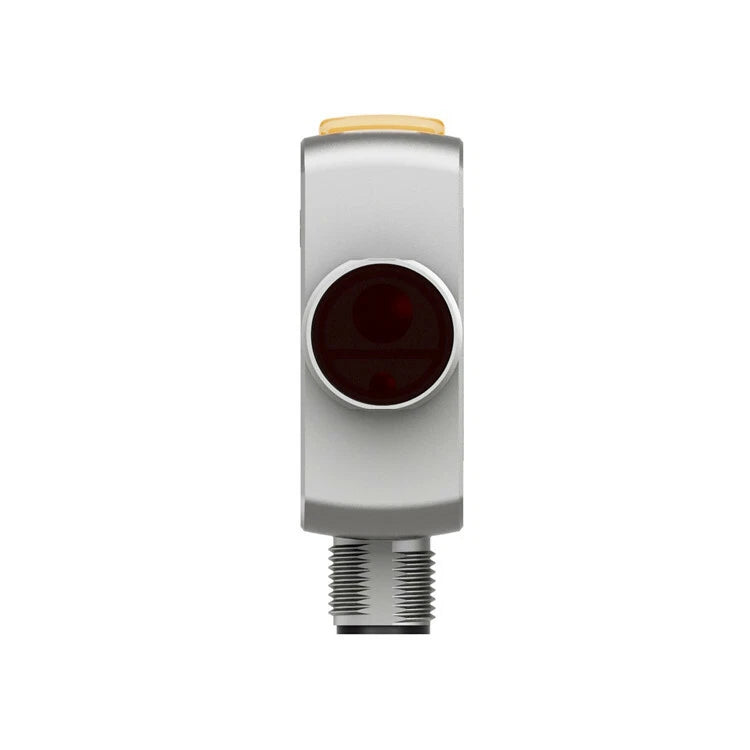

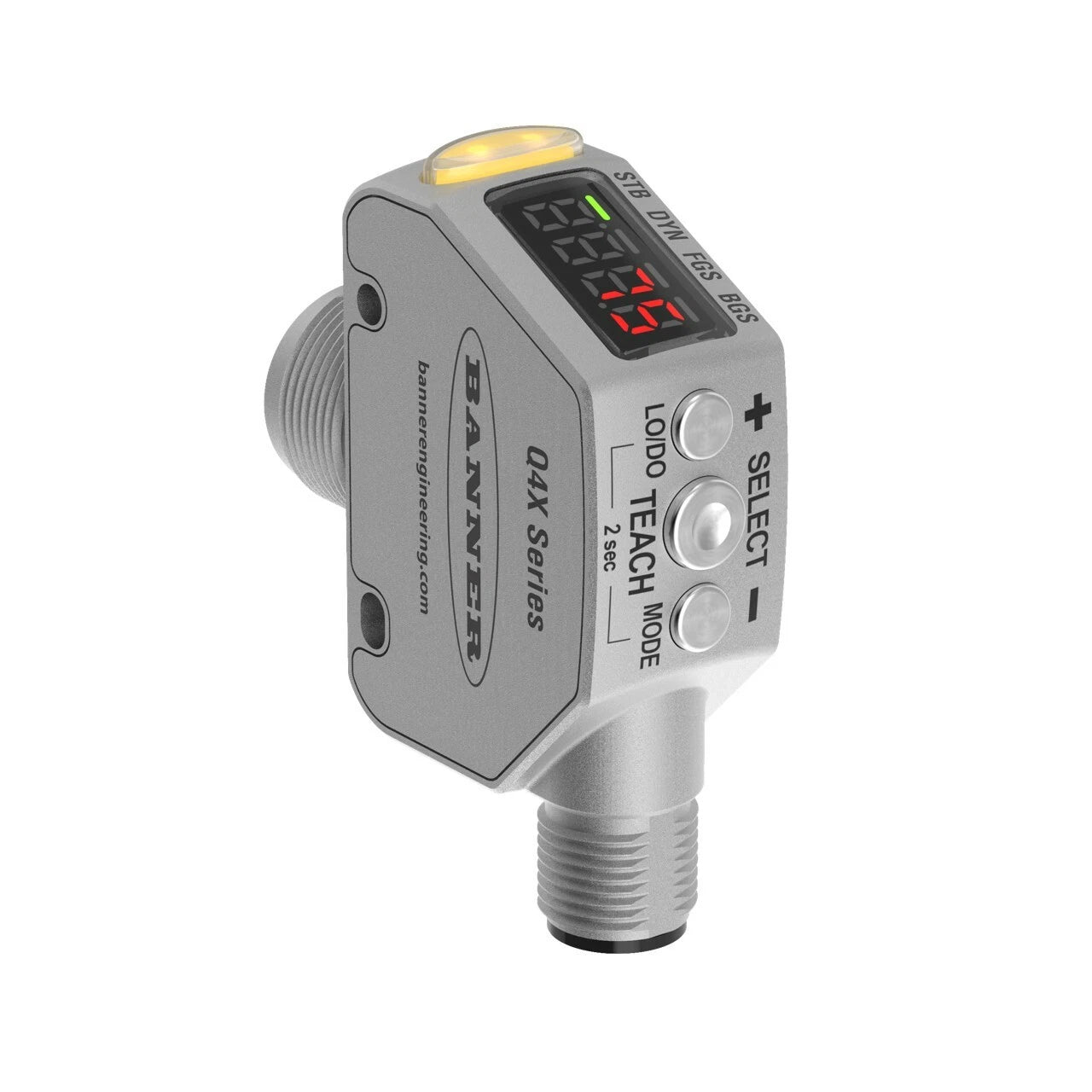

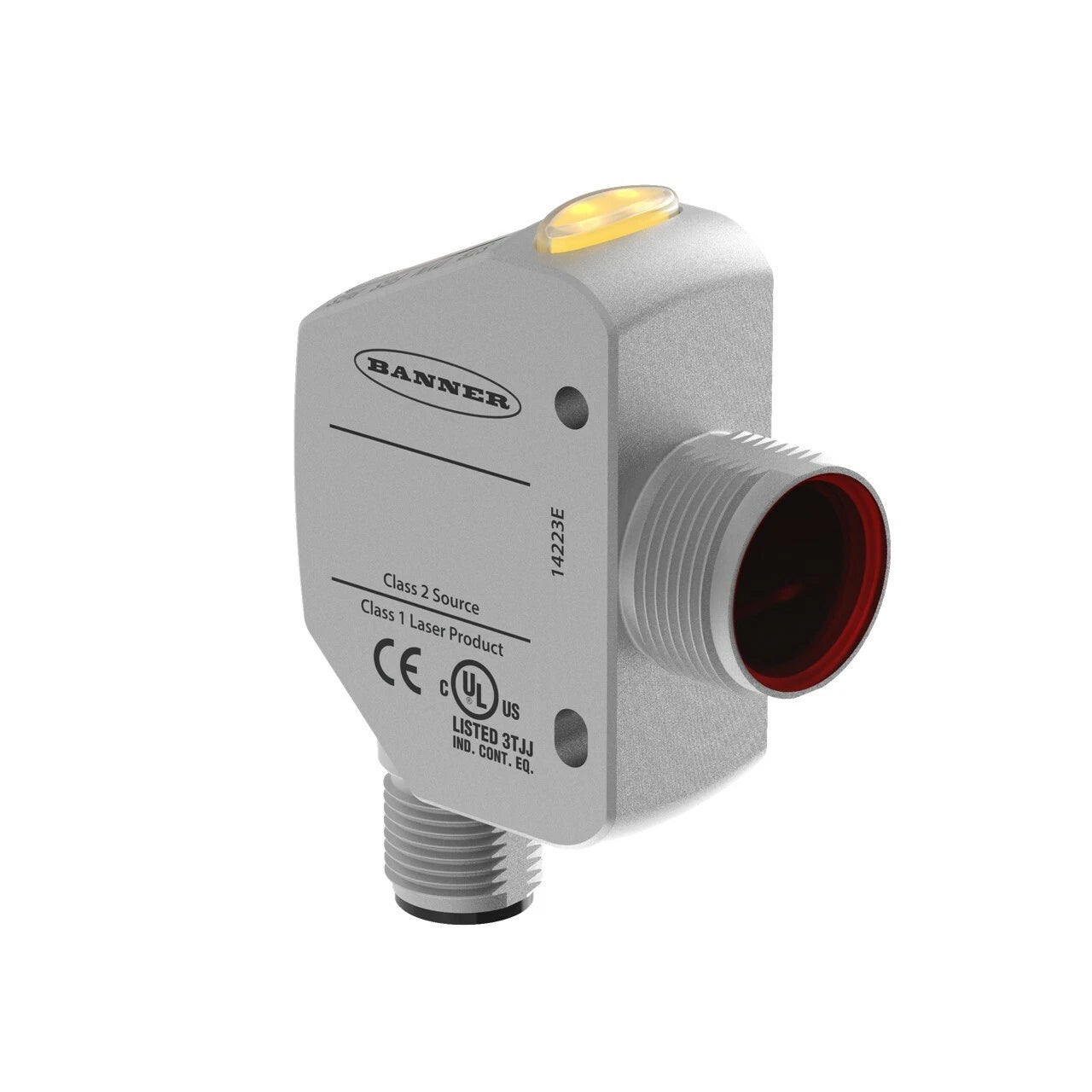

Banner Engineering Q4XTILAF500-Q8 500 mm Laser Photoelectric Sensor
- Regular price
- $822.00
- Sale price
- $822.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: Q4XTILAF500-Q8
Description
Banner Engineering Q4XTILAF500-Q8 is a rugged laser photoelectric sensor with an adjustable sensing field and a 25–500 mm detection range. It provides a 4–20 mA analog output and operates from a 12–30 VDC supply for industrial measurement and object-detection applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Industrial Automation |
| Part Number | Q4XTILAF500-Q8 |
| Subcategory | Laser Photoelectric Sensors |
| Product Type | Rugged Laser Distance Sensor |
| Sensing Method | Background/Foreground Suppression |
| Sensing Range | 25–500 mm |
| Wavelength | 655 nm |
| Analog Output | 4–20 mA |
| Connection | Integral 5-Pin M12 QD |
| Operating Temperature | -10°C to +50°C |
| Ingress Protection | IP67, IP68, IP69K |
| Response Time | 0.5 ms minimum |
| Minimum Sensing Distance | 25 mm |
| Weight | 68.04 g |
Information About Q4XTILAF500-Q8
The Q4XTILAF500-Q8 belongs to Banner Engineering’s Q4X Series of rugged laser distance sensors. It uses a visible red Class 1 laser at 655 nm with background and foreground suppression for controlled proximity detection. The stainless-steel housing incorporates an integral 5-pin M12 quick-disconnect and supports remote teach and push-button adjustment. Its IP67, IP68, and IP69K ratings provide protection for demanding industrial and washdown environments.
Key Features:
- Laser Detection: Uses a visible red Class 1 laser with a 655 nm wavelength.
- Sensing Range: Provides adjustable detection from 25 to 500 mm.
- Analog Output: Delivers a 4–20 mA current signal for industrial control systems.
- Supply Voltage: Operates from a 12–30 VDC power supply.
- Background Suppression: Provides background and foreground suppression for reliable object detection.
- Industrial Connection: Includes an integral 5-pin M12 quick-disconnect connector.
- Environmental Protection: Rated IP67, IP68, and IP69K with a NEMA 4X rating.
- Adjustment: Supports push-button and remote teach configuration.
The Q4XTILAF500-Q8 delivers the reliability and precision required for industrial distance measurement, object detection, and automated process control.
