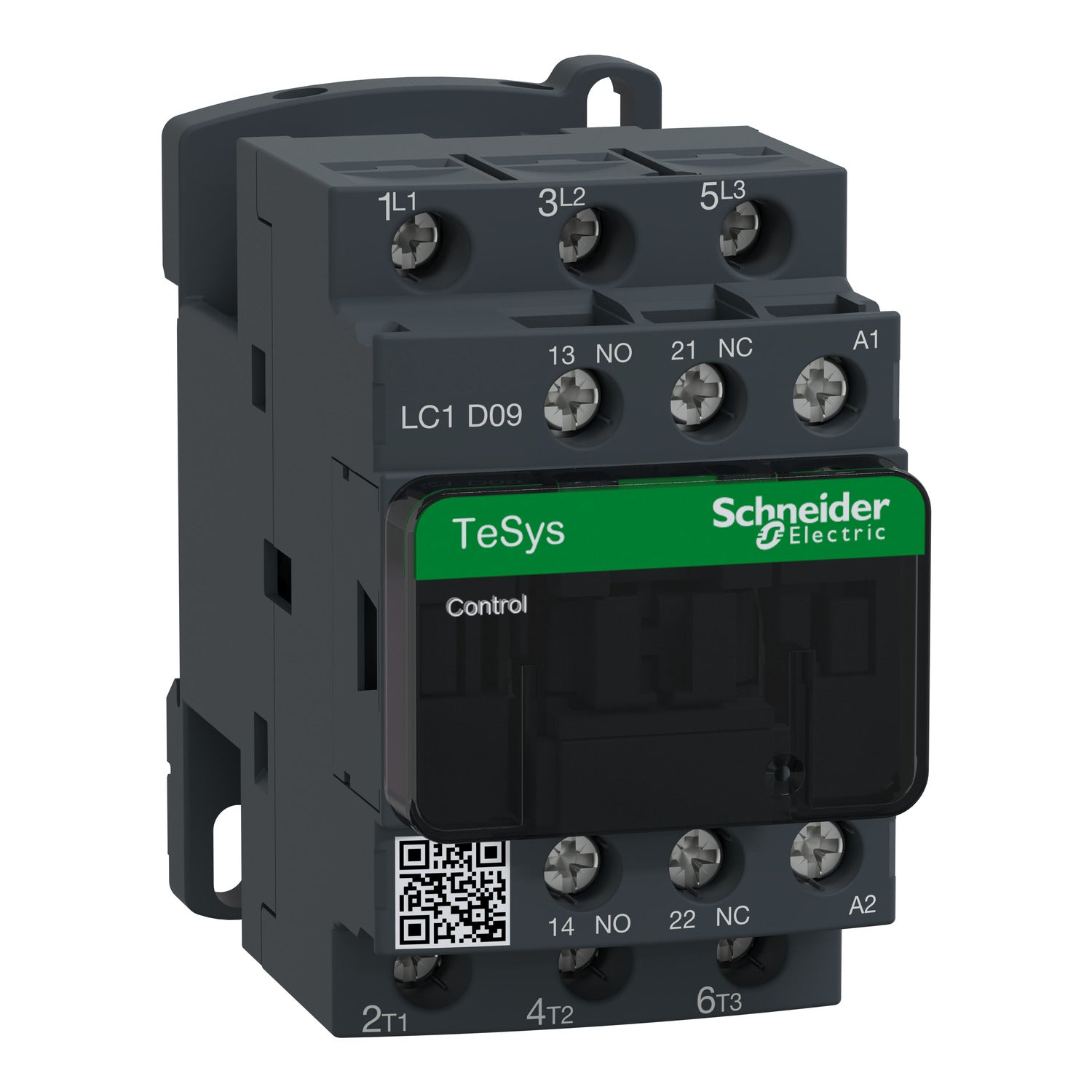

LC1D09B7 | Schneider Electric IEC Contactor, TeSys Deca
- Regular price
- $85.00
- Sale price
- $85.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: LC1D09B7
Description
The LC1D09B7 is an IEC contactor from the TeSys Deca series, offering reliable non-reversing operation for various applications. With a current rating of 9A, this contactor can handle motors up to 5HP at 480VAC. It boasts a high short-circuit current rating (SCCR) of up to 100kA, ensuring robust protection in demanding environments. Featuring 3 NO (normally open) contacts, it's suitable for controlling three-phase systems. The contactor is equipped with a 24VAC 50/60Hz coil for efficient operation. Additionally, it comes with both normally open and normally closed auxiliary contacts, with the latter being mirror certified. Screw clamp terminals facilitate easy connections for both load and auxiliary components.
Technical Specifications
|
Part # |
LC1D09B7 |
|
Category |
Contactors & Starters |
|
Subcategory |
Contactor |
|
Range of Product |
TeSys Deca |
|
Product or Component Type |
Contactor |
|
Device short name |
LC1D |
|
Poles description |
3P |
|
[Ue] rated operational voltage |
Power circuit <= 690 V AC 25...400 Hz |
|
[Uc] control circuit voltage |
24 V AC 50/60 Hz |
|
Compatibility code |
LC1D |
|
Pole contact composition |
3 NO |
|
Protective cover |
With |
|
[Ith] conventional free air thermal current |
25 A (at 140 °F (60 °C)) for power circuit |
|
Rated breaking capacity |
250 A at 440 V for power circuit conforming to IEC 60947 |
|
Average impedance |
2.5 mOhm - Ith 25 A 50 Hz for power circuit |
|
Overvoltage category |
III |
|
Pollution degree |
3 |
|
[Uimp] rated impulse withstand voltage |
6 kV IEC 60947 |
|
Control circuit type |
AC 50/60 Hz standard |
|
Coil technology |
Without built-in suppressor module |
|
Heat dissipation |
2…3 W at 50/60 Hz |
|
Operating time |
12...22 ms closing / 4...19 ms opening |
|
Maximum operating rate |
3600 cyc/h 140 °F (60 °C) |
|
Auxiliary contact composition |
1 NO + 1 NC |
|
Auxiliary contacts type |
Mechanically linked 1 NO + 1 NC IEC 60947-5-1 / Mirror contact 1 NC IEC 60947-4-1 |
|
Signalling circuit frequency |
25...400 Hz |
|
Minimum switching voltage |
17 V for signalling circuit |
|
Minimum switching current |
5 mA for signalling circuit |
|
Insulation resistance |
> 10 MOhm for signalling circuit |
|
Non-overlap time |
1.5 ms on de-energisation between NC and NO contact / 1.5 ms on energisation between NC and NO contact |
|
Mounting Support |
Rail / Plate |
|
Operating altitude |
0...9842.52 ft (0...3000 m) |
|
Fire resistance |
1562 °F (850 °C) IEC 60695-2-1 |
|
Flame retardance |
V1 conforming to UL 94 |
Information About LC1D09B7
The LC1D09B7 is an IEC Contactor from the TeSys Deca series, designed for nonreversing applications. It features a 9A rating, suitable for various motor control systems. With a 5HP rating at 480VAC and an impressive short-circuit current rating (SCCR) of up to 100kA, this contactor offers robust performance in demanding environments.
TeSys D contactors are versatile and can be integrated seamlessly into control systems, serving as motor starters across a wide range of applications. Available in multiple ratings, they cater to inductive motor loads of up to 150 full-load amps and resistive loads of up to 200 amps.
This 3-pole IEC contactor can be conveniently mounted on DIN rail or directly onto a panel. It boasts international acceptance with both Horsepower and Kw motor ratings, including ratings for three-phase and single-phase systems.
In terms of safety and reliability, this contactor is designed to meet stringent standards. When paired with appropriate circuit protection, such as a 480VAC 35A circuit breaker or a 600VAC 25A Class J or CC fuse, it ensures reliable operation with high SCCR ratings.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
