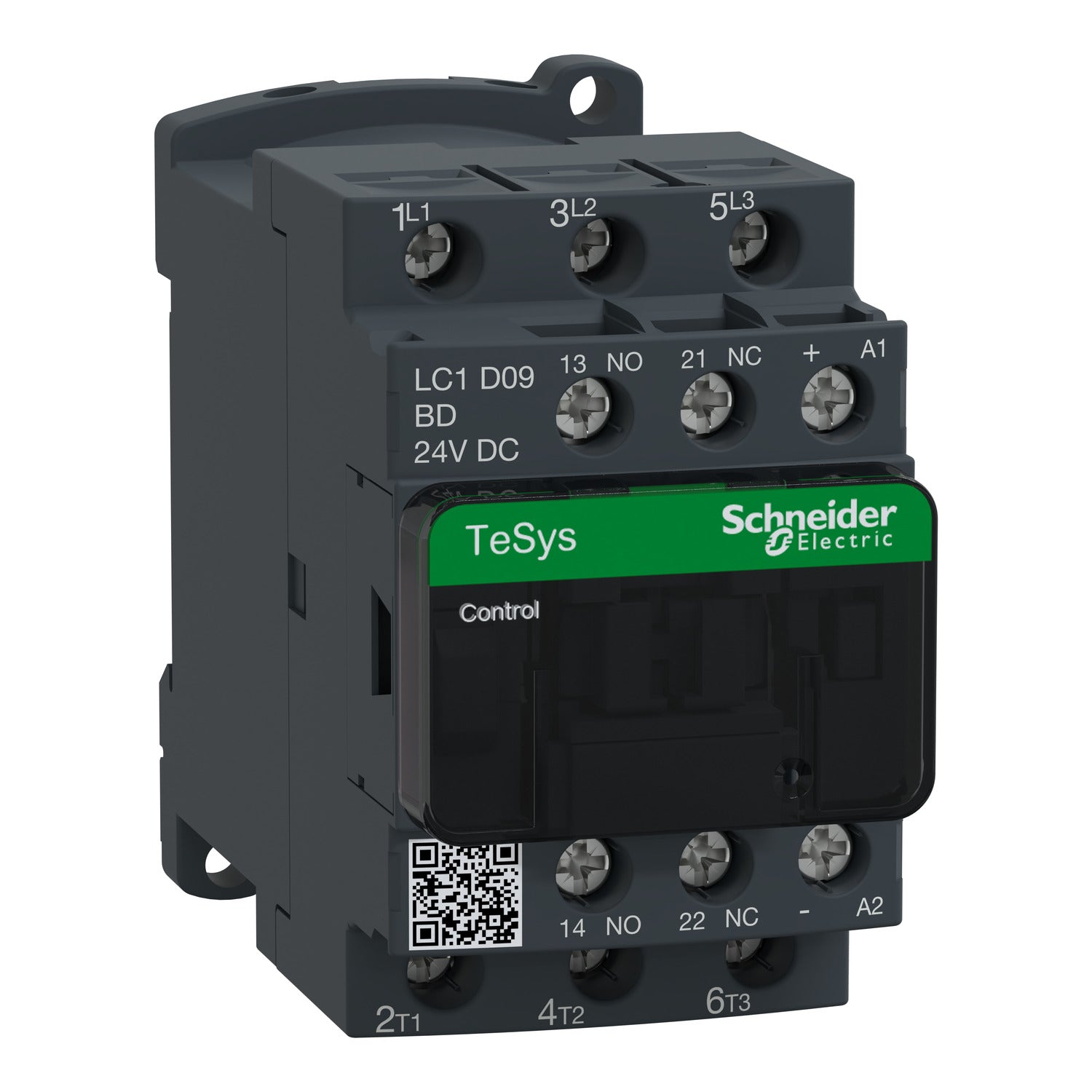

LC1D09BD | Schneider Electric 9A 24V DC IEC Non-Reversing Contactor
- Regular price
- $99.00
- Sale price
- $99.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LC1D09BD
Description
The Schneider Electric LC1D09BD is a compact IEC contactor designed for dependable electrical control in industrial systems. It supports a 9A load rating and operates with a 24V DC coil while using screw clamp terminals for secure and stable wiring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Part Number | LC1D09BD |
| Category | Contactors & Starters |
| Subcategory | Contactor |
| Coil Power Rating | 5.4 W |
| Coil Voltage | 24 / 690 VAC, 24 / 300 VDC |
| Contact Configuration | 3NO |
| Contact Rating | 25/60 A at 600 VAC, 10/60 A at 600 VAC |
| Dimensions | 1.77 in W × 3.74 in D × 3.03 in H |
| Enclosure Type | IP2X |
| Frequency Rating | 50/60 Hz |
| Auxiliary Contacts | 1NO–1NC |
| Number of Poles | 3 |
| Operating Cycles | 30,000,000 (3600 cycles/hr) |
| Operating Temperature | -5 to 60 °C (-40 to 70 °C storage) |
| Series | LC1D |
| Size | 45 / 77 / 95 mm |
| Terminal Type | Screw Clamp |
| Type | Direct On-Line Standard, LC1D D-Line Standard |
| Wattage | 0.2 / 1.56 W |
| Connection Type | Screw Clamp |
| Contact Type | Non-Reversing |
| Mounting Type | Plate / Rail / Surface |
Information About LC1D09BD
The LC1D09BD is part of Schneider Electric’s LC1D series of IEC contactors designed to provide reliable operation in industrial control applications. It supports three normally open power contacts and includes auxiliary contacts to expand control flexibility in automation systems. With compact dimensions and an IP2X enclosure, the device offers mechanical protection while maintaining compatibility with both rail and surface mounting methods. The contactor is engineered for long service life, supporting up to 30 million operating cycles and stable performance across a broad temperature range.
Key Features
- Compact IEC contactor: Designed for efficient control of industrial electrical loads in compact installations.
- 3NO contact arrangement: Supports reliable switching for three-phase circuits and motor applications.
- 24V DC coil operation: Provides energy-efficient control suited for modern industrial automation systems.
- High durability rating: Supports up to 30 million mechanical cycles for long-term service life.
- IP2X enclosure: Offers protection against contact with internal components for added safety.
- Screw clamp terminals: Ensure stable, secure wiring connections under industrial vibration and load conditions.
- Wide mounting compatibility: Supports plate, rail, and surface mounting for flexible panel integration.
- Auxiliary contacts included: Enhances control circuit versatility with 1NO–1NC auxiliary functions.
The LC1D09BD delivers the reliability and precision required for high-performance industrial electrical control across a wide range of automation and machinery applications.
