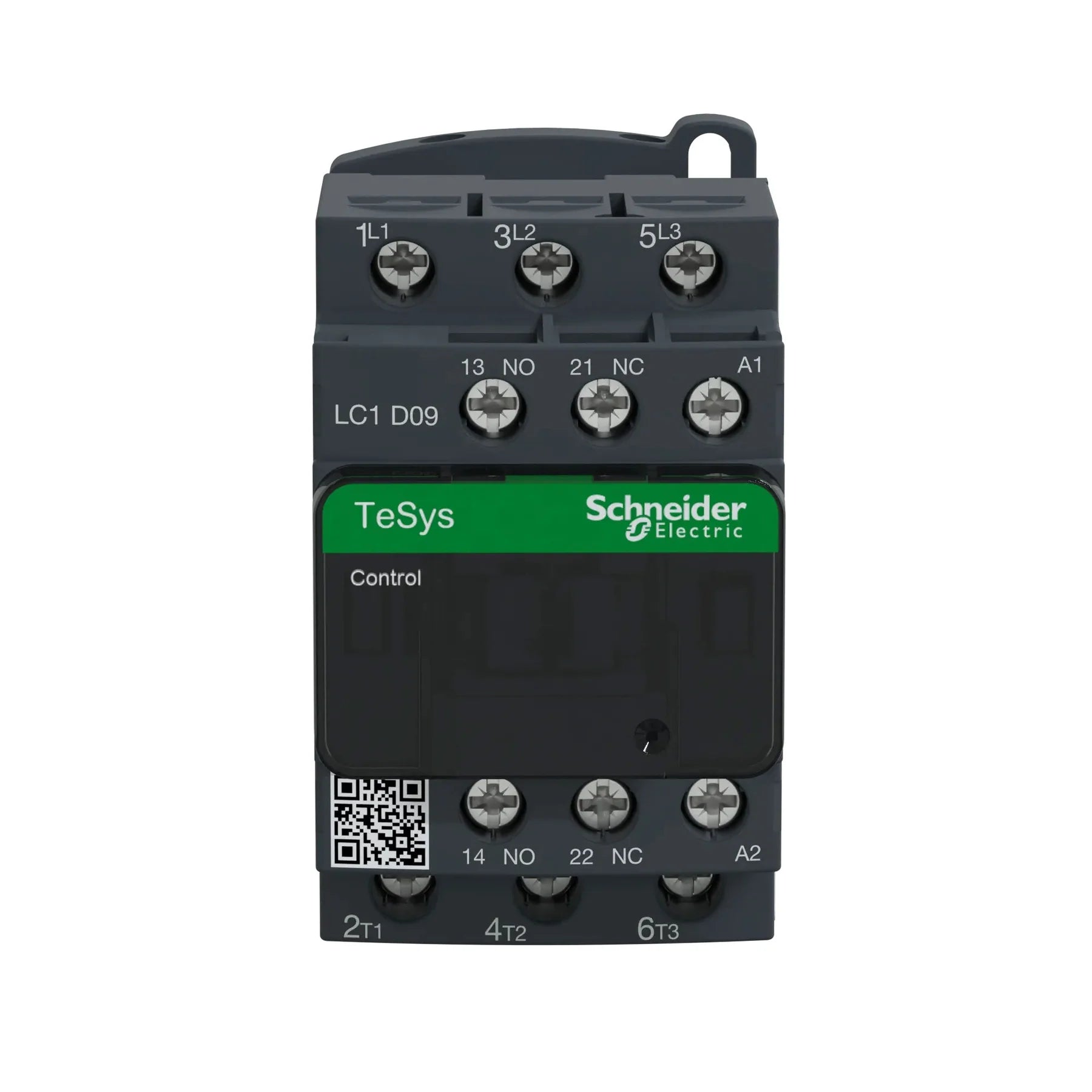

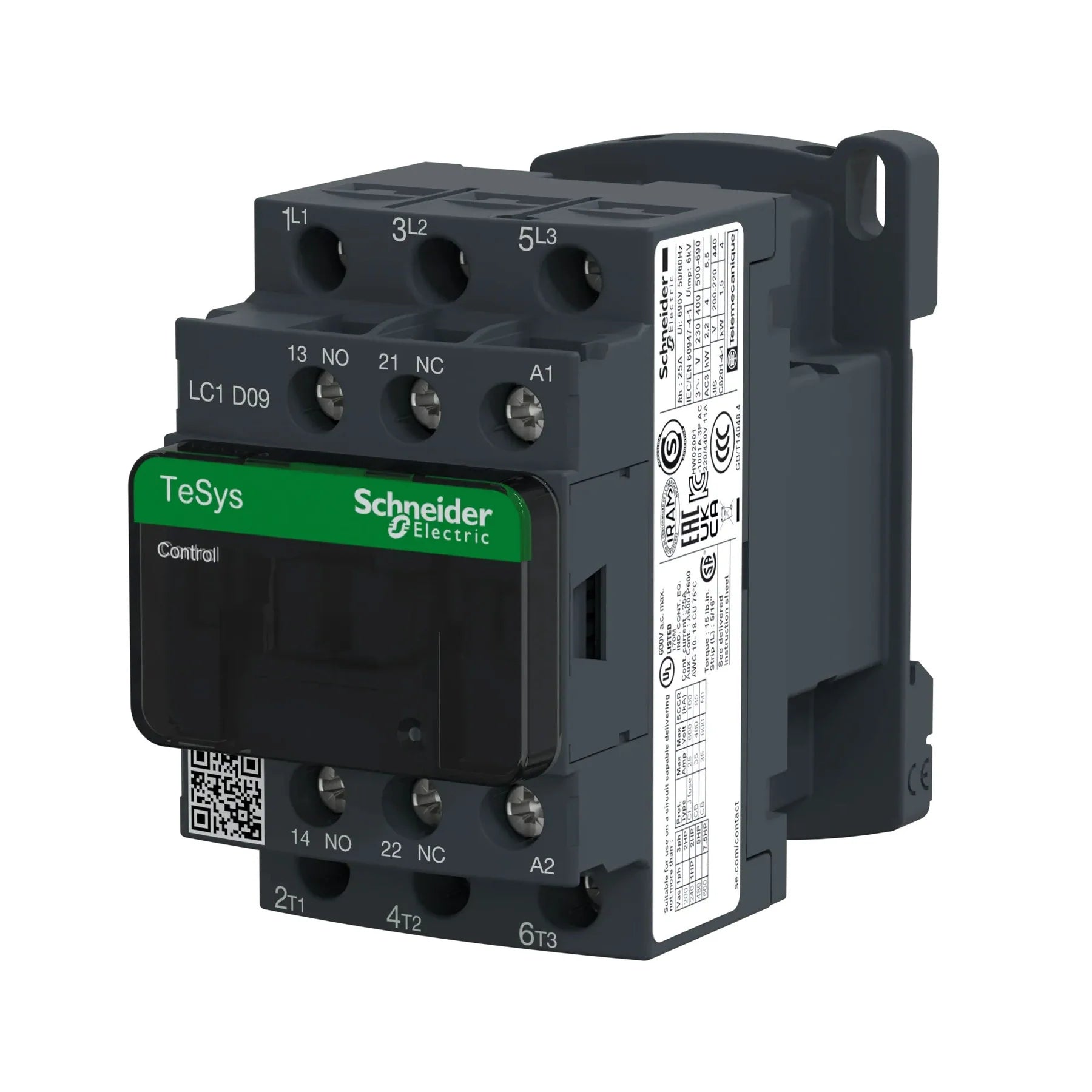

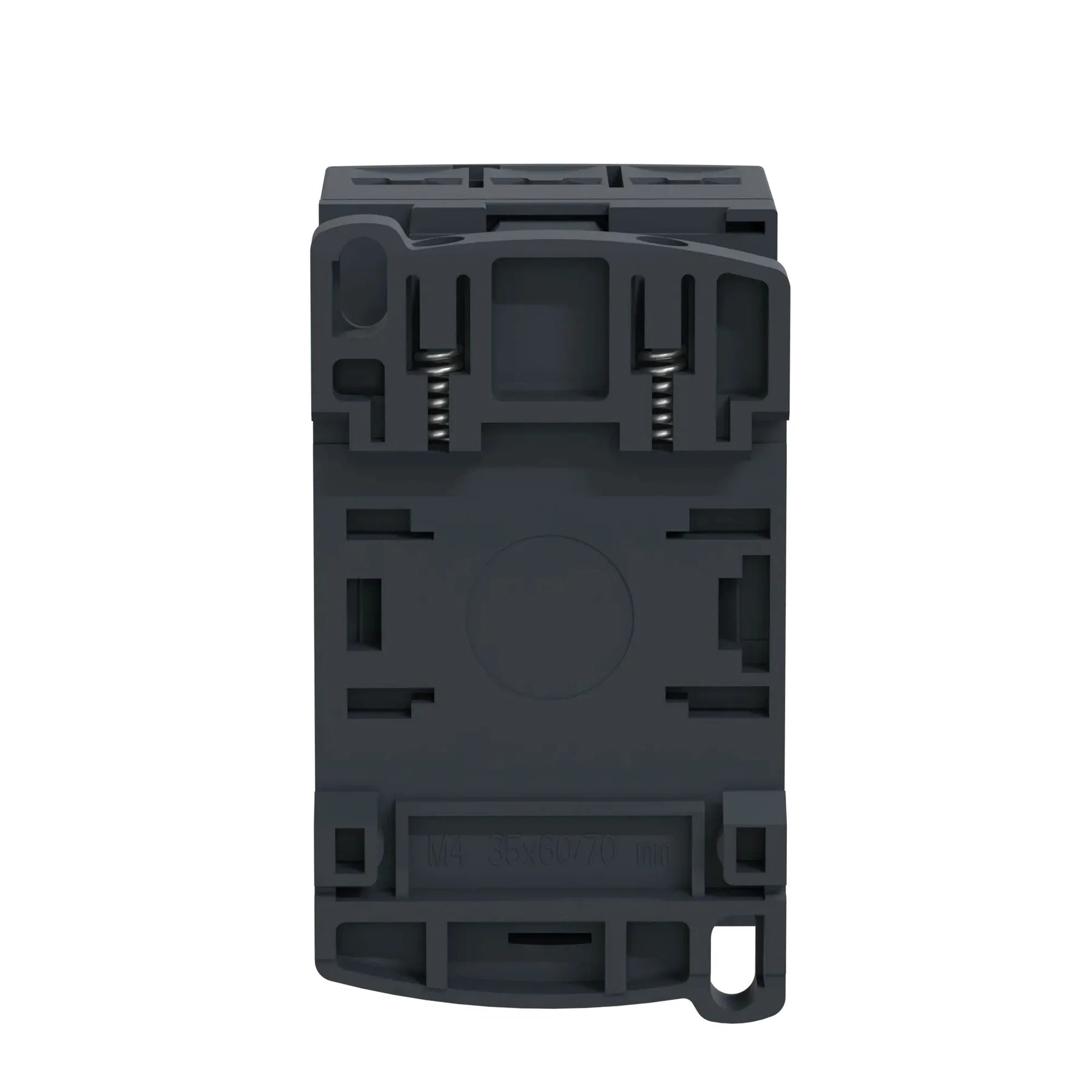

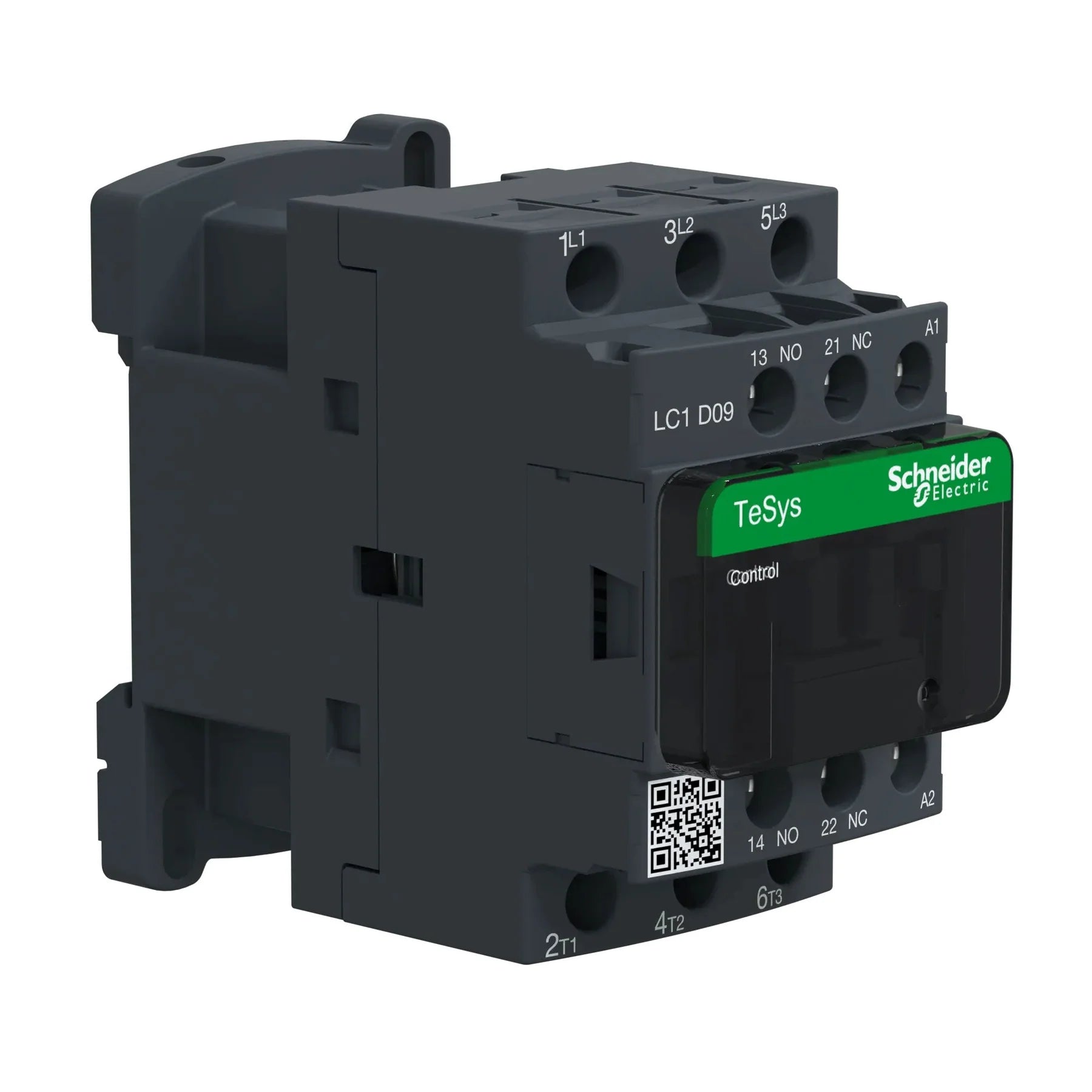

LC1D09G7 | Schneider Electric TeSys D 3-Pole IEC Contactor 9A 120V Coil
- Regular price
- $67.00
- Sale price
- $67.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LC1D09G7
Description
The Schneider Electric LC1D09G7 is an IEC contactor designed for non-reversing motor control in industrial three-phase applications. It supports reliable switching of motors up to 5 HP at 480 VAC and operates using a 120 V AC control coil.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Contactors & Starters |
| Part Number | LC1D09G7 |
| Subcategory | Contactor |
| Family | TeSys D |
| Type | LC |
| Rated Operational Voltage | 600 V AC |
| Rated Operational Current | 9 A |
| Maximum Current Rating | 25 A |
| Poles | 3 |
| Phase | 3 |
| Control Coil Voltage | 120 V AC |
| Motor Rating @ 480 VAC | Up to 5 HP |
| Short-Circuit Current Rating (SCCR) | Up to 100 kA |
| Application Type | Non-Reversing |
Information About LC1D09G7
The LC1D09G7 is an IEC contactor from Schneider Electric’s TeSys Deca series developed for compact and efficient motor control solutions. It is designed for three-phase systems and provides dependable switching performance in industrial control panels. The contactor uses a 120 V AC coil to ensure stable actuation under standard control power conditions. Its construction supports integration into TeSys D motor control assemblies where high fault withstand capability and operational reliability are required.
Key Features
- TeSys D Series Design: Engineered as part of Schneider Electric’s IEC motor control platform for standardized industrial applications.
- Non-Reversing Contactor Configuration: Intended for straightforward motor start and stop control functions.
- Three-Pole Construction: Supports balanced switching of three-phase electrical loads.
- High SCCR Capability: Rated for short-circuit current levels up to 100 kA when properly coordinated.
- 120 V AC Control Coil: Compatible with common industrial control voltage standards.
- Compact IEC Form Factor: Allows efficient panel layout and integration with auxiliary devices.
- Motor Control Support: Suitable for controlling motors up to 5 HP at 480 VAC.
The LC1D09G7 delivers the reliability and precision required for IEC-based motor control and switching in demanding industrial environments.
