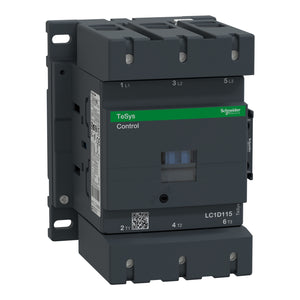

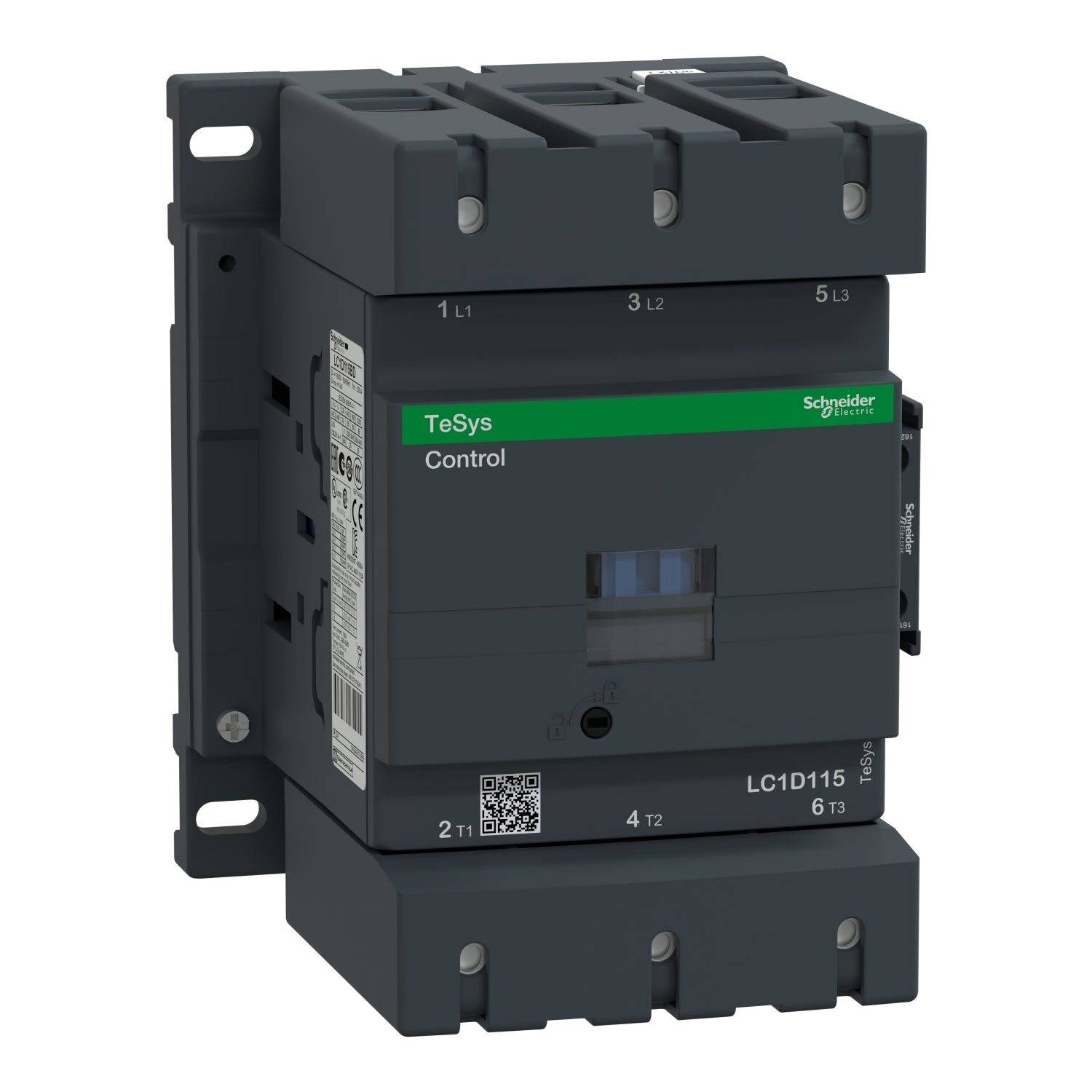

LC1D115BD | Schneider Electric IEC contactor
- Regular price
- $285.00
- Sale price
- $285.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LC1D115BD
Description
The LC1D115BD is an IEC contactor from the TeSys Deca series, designed for nonreversing applications with a current rating of 115A. It is suitable for controlling motors up to 75HP at 480VAC and features a high short-circuit current rating (SCCR) of up to 100kA. This 3-phase contactor has 3 normally open (NO) poles and operates with a 24VDC coil.
TeSys D contactors are renowned for their seamless integration into control systems and are adaptable for various motor starters across a wide range of applications. With 13 contactor ratings available, they accommodate inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps.
The LC1D115BD can be mounted either on DIN rail or directly onto a panel, offering flexibility in installation. It has international acceptance for both Horsepower and Kw motor ratings. For instance, it is rated for 30HP at 200 to 208VAC, 40HP at 240VAC, 75HP at 480VAC, and 100HP at 600VAC three-phase systems.
Technical Specifications
|
Part # |
LC1D115BD |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
TELEMECANIQUE |
|
Category |
Contactors & Starters |
|
Subcategory |
Contactor Range |
|
Range of product |
TeSys Deca |
|
Product or component type |
Contactor |
|
Device short name |
LC1D |
|
Contactor application |
Resistive load, Motor control |
|
Control circuit voltage (Uc) |
24 V DC |
|
Compatibility code |
LC1D |
|
Pole contact composition |
3 NO |
|
Contact compatibility |
M10 |
|
Protective cover |
With |
|
[Ith] conventional free air thermal current |
200 A (at 60 °C) for power circuit |
|
Rated breaking capacity |
1100 A at 440 V for power circuit conforming to IEC 60947 |
|
Average impedance |
0.6 mOhm - Ith 200 A 50 Hz for power circuit |
|
Overvoltage category |
III |
|
Pollution degree |
3 |
|
[Uimp] rated impulse withstand voltage |
8 kV conforming to IEC 60947 |
|
Control circuit type |
DC standard |
|
Coil technology |
With integral suppression device |
|
Inrush power in W |
270…365 W (at 20 °C) |
|
Hold-in power consumption in W |
2.4…5.1 W at 20 °C |
|
Operating time |
20...35 ms closing, 40...75 ms opening |
|
Time constant |
25 ms |
|
Maximum operating rate |
1200 cyc/h 60 °C |
|
Signalling circuit frequency |
25...400 Hz |
|
Minimum switching voltage |
17 V for signalling circuit |
|
Minimum switching current |
5 mA for signalling circuit |
|
Insulation resistance |
> 10 MOhm for signalling circuit |
|
Non-overlap time |
1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact |
|
IP degree of protection |
IP20 front face conforming to IEC 60529 |
|
Protective treatment |
TH conforming to IEC 60068-2-30 |
|
Climatic withstand |
Conforming to IACS E10 exposure to damp heat, conforming to IEC 60947-1 Annex Q category D exposure to damp heat |
|
Permissible ambient air temperature around the device |
-40…60 °C, 60…70 °C with derating |
|
Operating altitude |
0...3000 m |
|
Fire resistance |
850 °C conforming to IEC 60695-2-1 |
|
Flame retardance |
V1 conforming to UL 94 |
Information About LC1D115BD
The LC1D115BD is an IEC contactor from the TeSys Deca series, featuring a non-reversing configuration with a rating of 115A. Designed for seamless integration into control systems, TeSys D contactors are versatile and can be utilized to create motor starters for various applications. Available in 13 contactor ratings, they cater to inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps.
This specific contactor model is a 115A inductive, 3-pole IEC contactor suitable for mounting on DIN rail or directly onto a panel. It boasts international acceptance with both Horsepower and Kilowatt motor ratings. Operating within a voltage range of 200 to 600VAC three-phase, it supports a range of motor sizes, including 30HP at 200-208VAC, 40HP at 240VAC, 75HP at 480VAC, and 100HP at 600VAC.
For enhanced safety and reliability, the LC1D115BD contactor is equipped with a 24VDC coil and features one normally open and one normally closed auxiliary contact, both mirror certified. Screw clamp terminals facilitate secure connections for both load and auxiliary components.
With dimensions measuring 6.22 inches in height, 4.72 inches in width, and 5.35 inches in depth, and a weight of 5.51 lbs, this contactor is compact yet robust. It adheres to various international standards, including UL, CSA, IEC, CCC, EAC, and Marine standards. Additionally, it complies with RoHS/REACh regulations, qualifying as a Green Premium product.
The LC1D115BD contactor offers high short-circuit current ratings (SCCR) when used with appropriate circuit protection devices. With a 480VAC circuit breaker up to 250A, it can achieve an SCCR of up to 100kA, while with a 600VAC circuit breaker or Class J/CC fuses up to 250A, it can achieve up to 50kA or 100kA, respectively.
