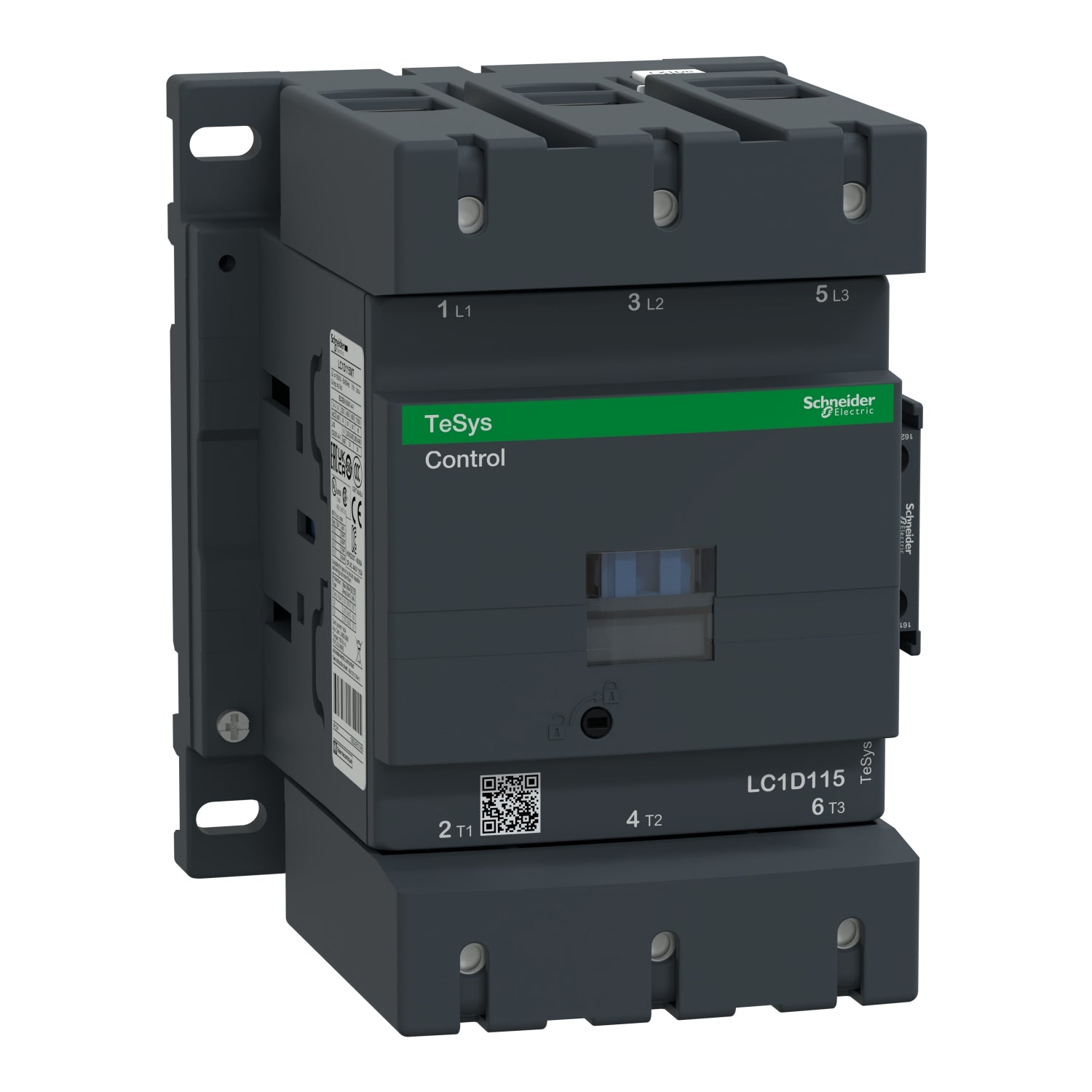

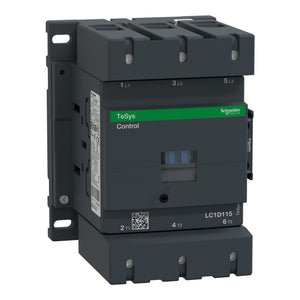

LC1D115G7 | Schneider Electric IEC Contactor
- Regular price
- $395.00
- Sale price
- $395.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LC1D115G7
Description
Schneider Electric IEC Contactor Non Reversing 3 pole Its a 3 phase solid state electric contactor Control Voltage Runs on 115 Vac @ 50 Hz.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | LC1D115G7 |
| Category | Contactors & Starters |
| Subcategory | Contactor |
| Coil Power Rating | 2 to 18, 2 to 18 VA, 280 to 350 VA Inrush, 2 to 18 VA Hold-In |
| Coil Voltage | 120, 120 VAC, 120/1000 VAC, 300 VDC |
| Connection type | Screw Clamp |
| Contact Configuration | 3NO |
| Contact Rating | 60/200 A at 600 VAC |
| Contact type | Non-Reversing |
| Dimensions | 120 mm W x 132 mm D x 158 mm H |
| Enclosure Type | IP2X |
| Frequency Rating | 50/60 Hz |
| Mounting type | Plate/Rail, Plate/Rail/Surface, Rail/Surface |
| Number of Auxiliary Contacts | 1NO-1NC, 2 |
| Number of Poles | 3 |
| Operating Cycles | 2400, 2400 Cycles/hr, 8000000, 8000000 Cycles |
| Operating Temperature | -5 to 60, -5 to 60 deg C, -5 to 60/-40 to 70, -5 to 60/-40 to 70 deg C |
| Power factor | 0.8 Inrush, 0.3 Hold-In |
| Series | LC1D |
| Size | 120/136/158 mm |
| Terminal Type | Screw Clamp |
| Type | D-Line, LC1D D-Line |
| Wattage | 55, 7.9/24, 7.9/24 W |
Information About LC1D115G7
The LC1D115G7 from Schneider Electric is a robust IEC Contactor designed for industrial applications requiring reliable switching of electrical circuits. It features a coil voltage rating of 120 VAC with various power ratings: 2 to 18 VA for hold-in, 280 to 350 VA for inrush. This 3-pole contactor has a contact configuration of 3 normally open (3NO) contacts capable of handling 60 A at 600 VAC.
The contactor's coil connection type is screw clamp, ensuring secure electrical connections. It operates effectively at a frequency rating of 50/60 Hz and can be mounted on a plate, rail, or surface, offering flexibility in installation. The LC1D115G7 includes one normally open and one normally closed auxiliary contact for additional control functionalities.
With dimensions of 120 mm width, 132 mm depth, and 158 mm height, and an IP2X enclosure type, it provides adequate protection against dust and solid objects. The operating temperature ranges from -5 to 60 degrees Celsius, ensuring reliable performance in varying environmental conditions.
The LC1D115G7 is part of the LC1D D-Line series, characterized by its durability and high operating cycles of up to 8,000,000 cycles, making it suitable for demanding industrial environments. It complies with international standards, offering a power factor of 0.8 for inrush and 0.3 for hold-in, ensuring efficient energy use during operation.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
