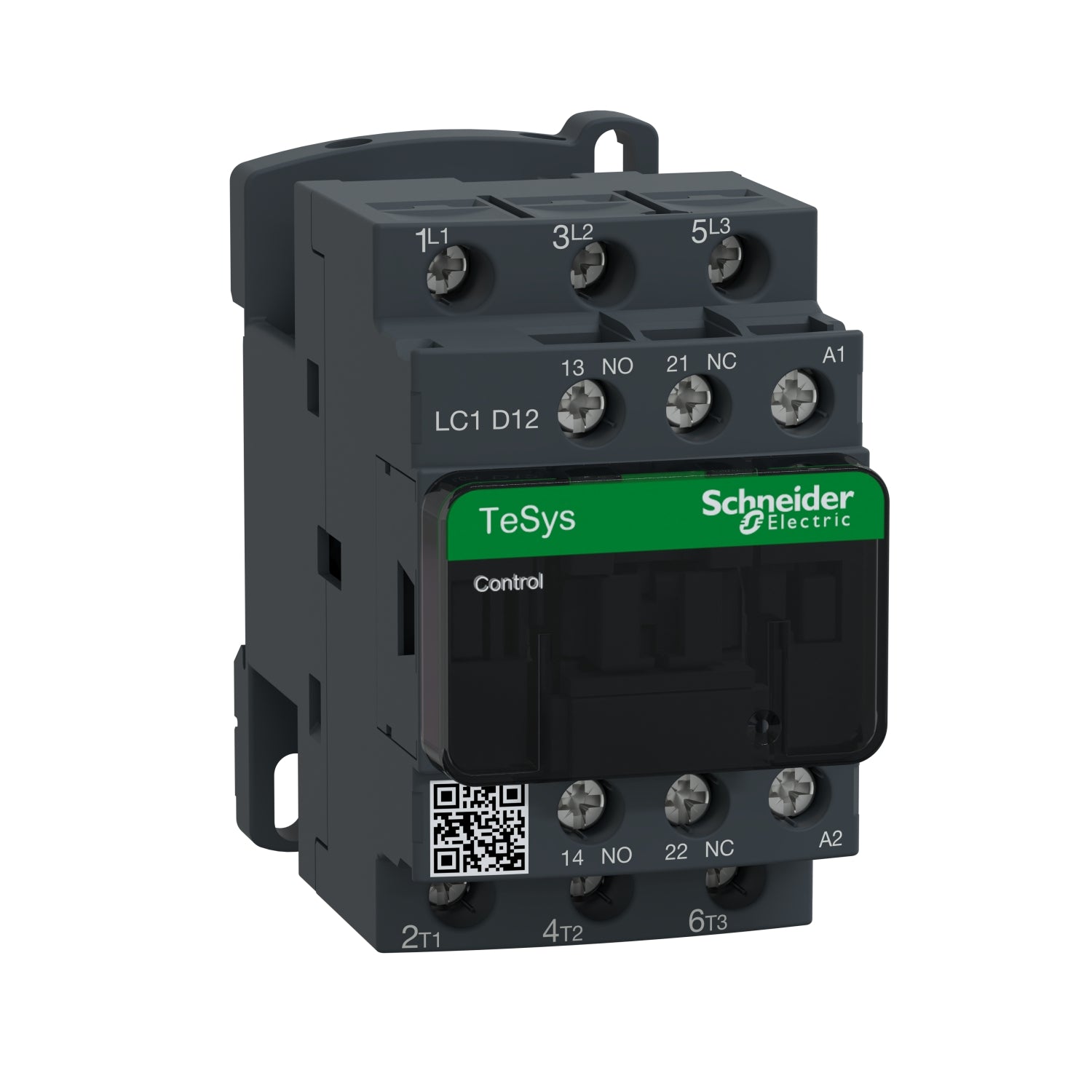

LC1D12B7 | Schneider Electric IEC contactor, TeSys Deca, nonreversing, 12A, 7.5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VAC 50/60Hz coil, open
- Regular price
- $78.00
- Sale price
- $78.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LC1D12B7
Description
Schneider Electric, LC1D12B7, IEC Contactor, Direct On-Line, Series: LC1D, 24/690 VAC, 300 VDC Coil, 12/25 A Maximum Load Current, 7.5/7.7 VA Coil, 3 Pole, 50/60 Hz Frequency, 0.36/1.56 W Wattage, Mechanically Linked/Mirror/Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 25/60 A at 600 VAC, 10/60 A at 600 VAC Contact, Power Factor: 0.75 Inrush, 0.3 Hold-In, Screw Clamp Connection, 45/77/86 mm Size, IP20 Enclosure, 3600 cycles/hr Operating Cycles, -5 to 60/-40 to 70 deg C Operating, Rail/Surface Mounting, 45 mm W x 84 mm D x 77 mm H Dimensions.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | LC1D12B7 |
| Category | Contactors & Starters |
| Subcategory | Contactor |
| Coil Power Rating | 7.5/7.7 VA, 70 VA Inrush, 7/7.5 VA Hold-In |
| Coil Voltage | 24, 24 VAC, 24/690 VAC, 300 VDC |
| Connection type | Screw Clamp |
| Contact Configuration | 3NO |
| Contact Rating | 12 A at 600 VAC, 25/60 A at 600 VAC, 10/60 A at 600 VAC |
| Contact type | Mechanically Linked/Mirror, Mechanically Linked/Mirror/Non-Reversing, Non-Reversing |
| Dimensions | 1.77 in W x 3.39 in D x 3.03 in H, 45 mm W x 84 mm D x 77 mm H, 77 mm H x 45 mm W x 86 mm D |
| Enclosure Type | IP20, IP2X |
| Frequency Rating | 50/60 Hz |
| Mounting type | Plate/Rail, Rail/Surface, Surface |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number of Poles | 3 |
| Operating Cycles | 15000000 Cycles, 3600 Cycles/hr |
| Operating Temperature | -5 to 60, -5 to 60 deg C, -5 to 60/-40 to 70 deg C, 23 to 140 |
| Power factor | 0.75 Inrush, 0.3 Hold-In |
| Series | LC1D |
| Size | 45/77/86 mm |
| Terminal Type | Screw/Clamp |
| Type | Direct On-Line, LC1D D-Line, Standard |
| Wattage | 0.36/1.56 W, 5.5, 5.5 kW, 7.5 |
Information About LC1D12B7
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 12A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 3HP at 200-208VAC, 3HP at 240VAC, 7.5HP at 480VAC and 10HP at 600VAC three phase. Contactor is also rated for 0.5HP at 115VAC and 2HP at 240VAC single phase. When used with a 480VAC up to 35A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 30A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.03 inches tall, 1.77 inches wide and 3.39 inches deep. It weighs 0.72 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
FeaturesWithout built-in bidirectional peak limiting diode suppressor coil technology
IP2 x IEC 60529/VDE 0106
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
Description
Schneider Electric, LC1D12B7, IEC Contactor, Direct On-Line, Series: LC1D, 24/690 VAC, 300 VDC Coil, 12/25 A Maximum Load Current, 7.5/7.7 VA Coil, 3 Pole, 50/60 Hz Frequency, 0.36/1.56 W Wattage, Mechanically Linked/Mirror/Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 25/60 A at 600 VAC, 10/60 A at 600 VAC Contact, Power Factor: 0.75 Inrush, 0.3 Hold-In, Screw Clamp Connection, 45/77/86 mm Size, IP20 Enclosure, 3600 cycles/hr Operating Cycles, -5 to 60/-40 to 70 deg C Operating, Rail/Surface Mounting, 45 mm W x 84 mm D x 77 mm H Dimensions.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | LC1D12B7 |
| Category | Contactors & Starters |
| Subcategory | Contactor |
| Coil Power Rating | 7.5/7.7 VA, 70 VA Inrush, 7/7.5 VA Hold-In |
| Coil Voltage | 24, 24 VAC, 24/690 VAC, 300 VDC |
| Connection type | Screw Clamp |
| Contact Configuration | 3NO |
| Contact Rating | 12 A at 600 VAC, 25/60 A at 600 VAC, 10/60 A at 600 VAC |
| Contact type | Mechanically Linked/Mirror, Mechanically Linked/Mirror/Non-Reversing, Non-Reversing |
| Dimensions | 1.77 in W x 3.39 in D x 3.03 in H, 45 mm W x 84 mm D x 77 mm H, 77 mm H x 45 mm W x 86 mm D |
| Enclosure Type | IP20, IP2X |
| Frequency Rating | 50/60 Hz |
| Mounting type | Plate/Rail, Rail/Surface, Surface |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number of Poles | 3 |
| Operating Cycles | 15000000 Cycles, 3600 Cycles/hr |
| Operating Temperature | -5 to 60, -5 to 60 deg C, -5 to 60/-40 to 70 deg C, 23 to 140 |
| Power factor | 0.75 Inrush, 0.3 Hold-In |
| Series | LC1D |
| Size | 45/77/86 mm |
| Terminal Type | Screw/Clamp |
| Type | Direct On-Line, LC1D D-Line, Standard |
| Wattage | 0.36/1.56 W, 5.5, 5.5 kW, 7.5 |
Information About LC1D12B7
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 12A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 3HP at 200-208VAC, 3HP at 240VAC, 7.5HP at 480VAC and 10HP at 600VAC three phase. Contactor is also rated for 0.5HP at 115VAC and 2HP at 240VAC single phase. When used with a 480VAC up to 35A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 30A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.03 inches tall, 1.77 inches wide and 3.39 inches deep. It weighs 0.72 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
FeaturesWithout built-in bidirectional peak limiting diode suppressor coil technology
IP2 x IEC 60529/VDE 0106
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
