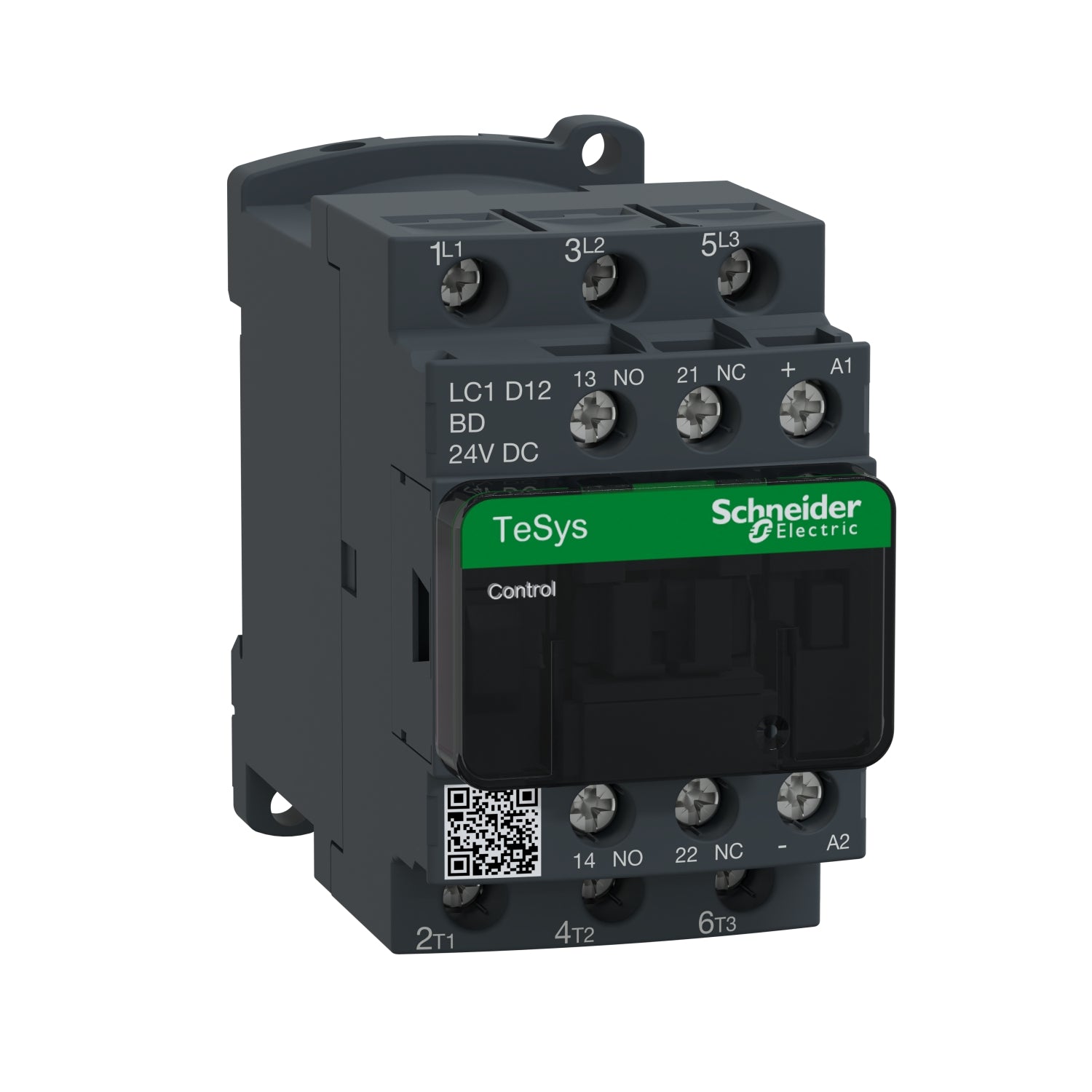

LC1D12BD | Schneider Electric TeSys D 12A 3-Pole Contactor 24 VDC Coil, 690 VAC Rated
- Regular price
- $139.00
- Sale price
- $139.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LC1D12BD
Description
The Schneider Electric LC1D12BD is a 3-pole TeSys D contactor designed for industrial motor control applications requiring reliable switching and robust electrical performance. It supports 12 A current ratings, a 690 VAC operating voltage, and a 24 VDC coil for dependable control circuit operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Contactors & Starters |
| Part Number | LC1D12BD |
| Subcategory | Contactor |
| Coil Power Rating | 5.4 W Inrush / Hold-In |
| Coil Voltage | 24 VDC |
| Connection Type | Screw Clamp |
| Contact Configuration | 3NO |
| Contact Rating | 25/60 A at 600 VAC, 10/60 A at 600 VAC |
| Contact Type | Non-Reversing |
| Dimensions | 45 mm W × 95 mm D × 77 mm H |
| Enclosure Type | IP2X |
| Frequency Rating | 50/60 Hz |
| Mounting Type | Plate / Rail, Rail / Surface |
| Number of Auxiliary Contacts | 1NO–1NC (2 Total) |
| Number of Poles | 3 |
| Operating Cycles | 30,000,000 Mechanical / 3,600 Cycles per Hour |
| Operating Temperature | 5…60 °C (Operation), −40…70 °C (Storage) |
| Series | LC1D (TeSys D) |
| Size | 45/77/95 mm |
| Terminal Type | Screw Clamp |
| Type | Direct-On-Line Standard |
| Wattage | 0.36/1.56 W, 5.5 W (Coil) |
| Voltage Rating | 690 VAC / 300 VDC |
| Motor Rating | 3 HP @ 20 |
Information About LC1D12BD
The LC1D12BD is part of Schneider Electric’s TeSys D series, designed for seamless integration into industrial control systems. With a 12 A inductive rating and 3-pole configuration, it supports a wide range of motor starting and switching applications across global voltage standards. Its 24 VDC coil includes an integrated transient suppressor module, ensuring clean switching and reduced electrical noise in sensitive control circuits. The contactor features screw clamp terminals for secure wiring and comes with built-in 1NO–1NC auxiliary contacts, including a mirror-certified NC contact for enhanced safety functionality.
Key Features:
- Reliable 3-Pole Switching: Rated for 12 A inductive loads and 690 VAC operation, providing robust performance for standard motor control tasks and industrial switching routines.
- 24 VDC Coil with Suppression: Equipped with a 24 VDC coil that includes a transient suppression module to minimize electrical noise and protect downstream control components.
- High Mechanical & Electrical Endurance: Supports up to 30 million mechanical operations and 3,600 switching cycles per hour, ensuring long service life in demanding applications.
- Integrated Auxiliary Contacts: Comes with 1NO–1NC auxiliary contacts for interlocking, signaling, and logic functions, with the NC contact mirror-certified for safety compliance.
- Flexible Mounting Options: Supports DIN rail and panel mounting, allowing easy installation in new and retrofit control panel layouts.
- Compact Industrial Design: Measuring 45 × 95 × 77 mm, the compact frame fits efficiently into high-density control panels without sacrificing performance.
- Global Certifications & Safety Standards: Certified to UL, CSA, IEC, CCC, EAC, and Marine standards, ensuring compatibility with international industrial requirements.
- TeSys D Accessory Compatibility: Works with a wide range of TeSys D add-ons including overload relays, mechanical interlocks, and protective accessories for extended functionality.
The LC1D12BD delivers the reliability and precision required for dependable three-phase motor control and rugged industrial switching applications.
