Part #: LC1D12G7 Manufactured by: Schneider Electric
Regular price
$75.00
Sale price
$75.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The LC1D12G7 is an IEC contactor from the TeSys Deca series, designed for non-reversing applications in three-phase system...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: LC1D12G7
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

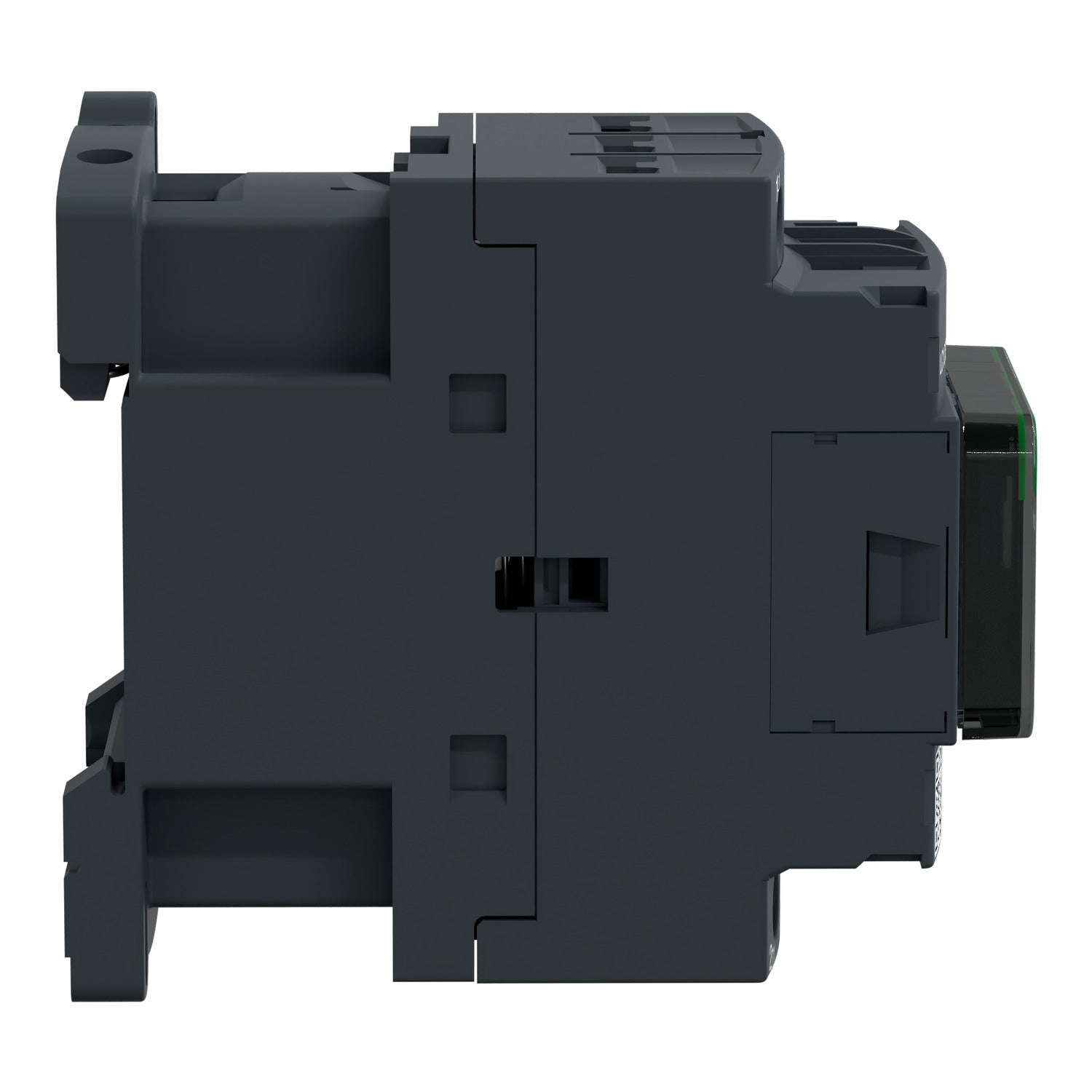

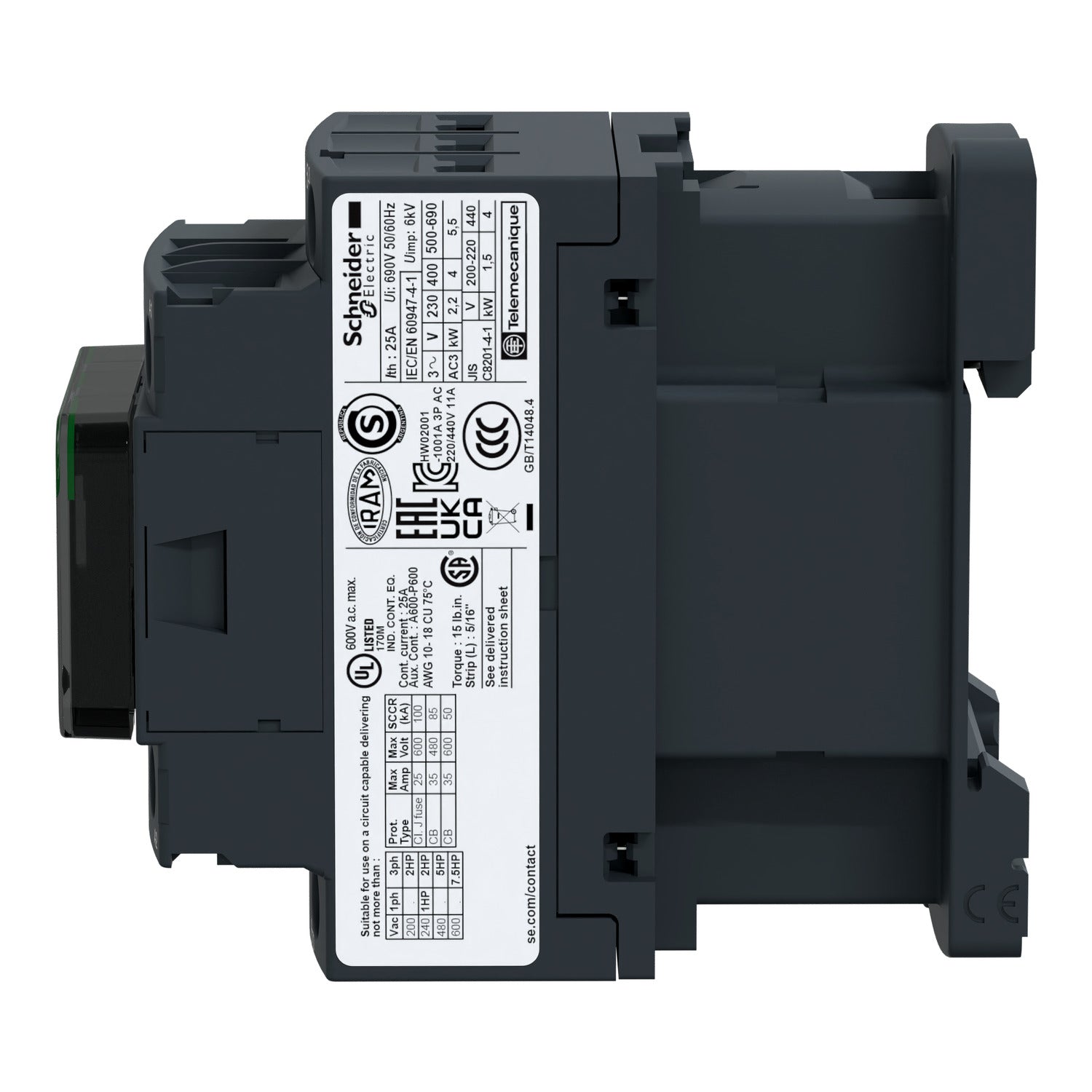

Product Description P/N: LC1D12G7

Description / Specifications

Description

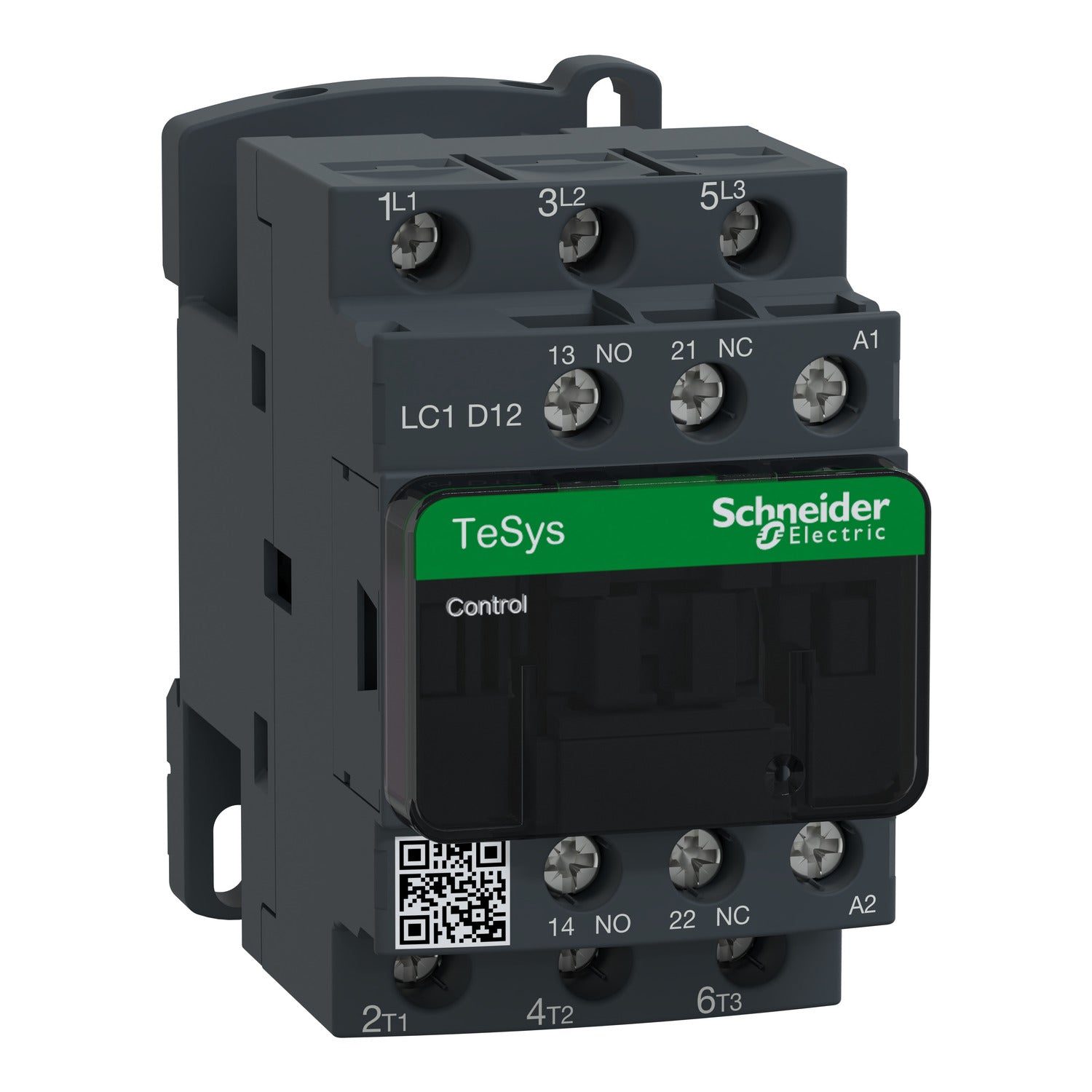

The LC1D12G7 is an IEC contactor from the TeSys Deca series, engineered for seamless integration into control systems and widely used in motor starter applications across various industries. This non-reversing contactor is rated at 12A for inductive loads with a 3-phase configuration and 3 normally open (NO) contacts. It features a 120VAC 50/60Hz coil for reliable operation.



Technical Specifications



Part #

LC1D12G7

Category

Contactors & Starters

Subcategory

Contactor

Range of Product

TeSys Deca

Product or Component Type

Contactor

Device short name

LC1D

Contactor application

Motor control

Resistive load poles description

3P

[Ue] rated operational voltage

Power circuit <= 690 V AC 25...400 Hz

[Uc] control circuit voltage

120 V AC 50/60 Hz Compatibility code LC1D

Pole contact composition

3 NO

Protective cover

With

[Ith] conventional free air thermal current

25 A (at 140 °F (60 °C)) for power circuit, 10 A (at 140 °F (60 °C)) for signalling circuit

Rated breaking capacity

250 A at 440 V for power circuit conforming to IEC 60947

Overvoltage category

III

Pollution degree

3

[Uimp] rated impulse withstand voltage

6 kV IEC 60947

Safety reliability level

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Mechanical durability

15 Mcycles

Electrical durability

2 Mcycles 12 A AC-3 <= 440 V, 0.8 Mcycles 25 A AC-1 <= 440 V, 2 Mcycles 12 A AC-3e <= 440 V

Control circuit type

AC 50/60 Hz

Coil technology

Without built-in suppressor module Heat dissipation 2…3 W at 50/60 Hz

Operating time

12...22 ms closing, 4...19 ms opening

Maximum operating rate

3600 cyc/h 140 °F (60 °C)

Auxiliary contact composition

1 NO + 1 NC

Auxiliary contacts type

Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1

Signalling circuit frequency

25...400 Hz

Minimum switching voltage

17 V for signalling circuit

Minimum switching current

5 mA for signalling circuit

Insulation resistance

> 10 MOhm for signalling circuit

Non-overlap time

1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact

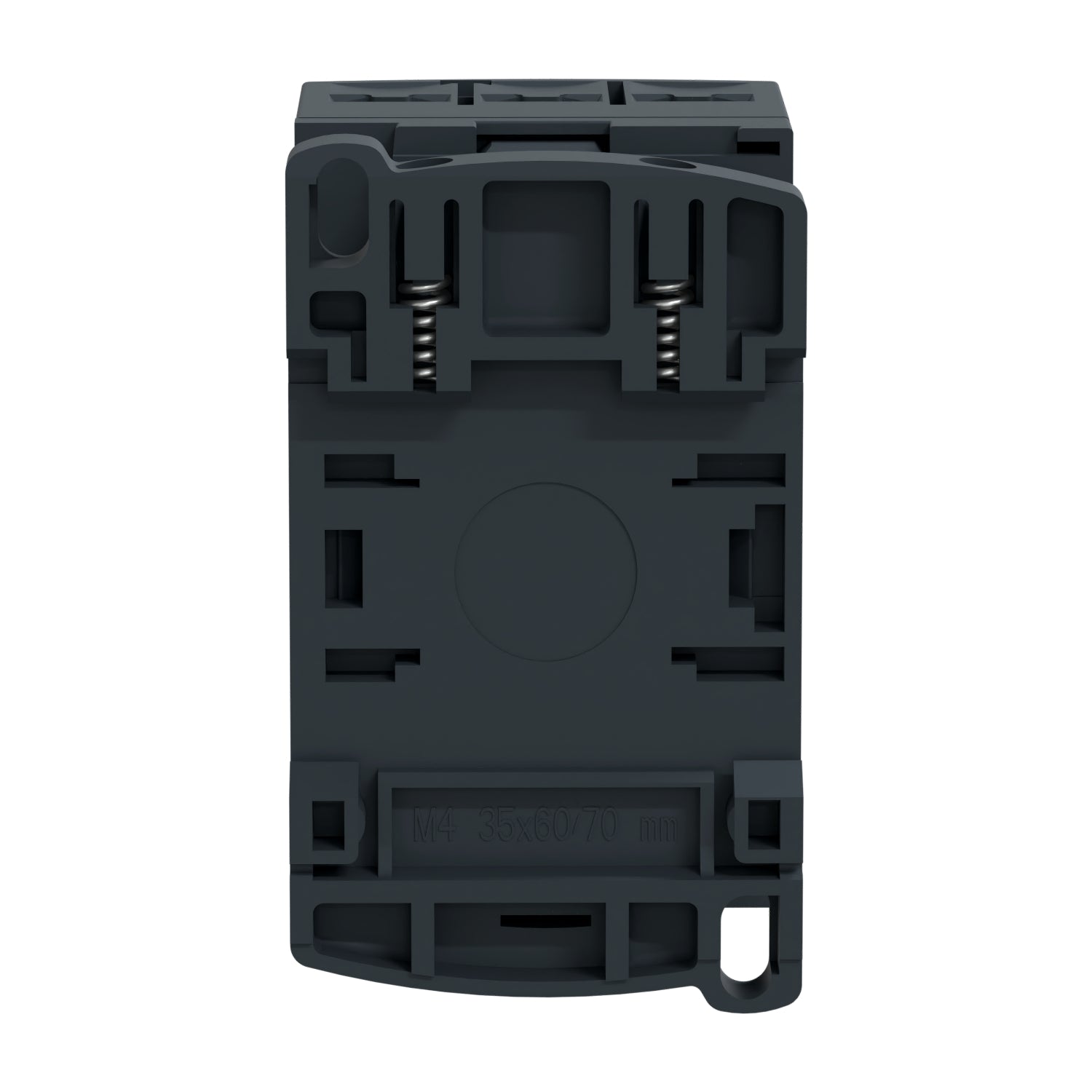

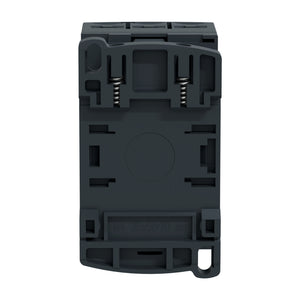

Mounting Support

Rail Plate





Information About LC1D12G7

The LC1D12G7 is an IEC contactor from the TeSys Deca series, designed for seamless integration into various control systems, primarily used for creating motor starters across diverse applications. Featuring a robust construction, it supports 12A current rating across three poles and is suitable for inductive motor applications up to 150 full-load amps, as well as resistive loads up to 200 amps. This contactor can be conveniently mounted on DIN rail or directly on a panel, offering flexibility in installation.

For motor compatibility, the LC1D12G7 contactor is rated at 3HP for 200-208VAC, 3HP at 240VAC, 7.5HP at 480VAC, and 10HP at 600VAC in three-phase configurations. In single-phase setups, it handles 0.5HP at 115VAC and 2HP at 240VAC. When paired with a 480VAC up to 35A circuit breaker, it achieves a Short-Circuit Current Rating (SCCR) of up to 85kA. Utilizing up to a 600VAC 30A Class J or CC fuse, the SCCR can reach up to 100kA, ensuring robust protection in electrical circuits.

Equipped with a 120VAC 50/60Hz coil, the LC1D12G7 includes one normally open (NO) and one normally closed (NC) auxiliary contact as standard, with the NC contact certified as mirror compliant. It employs screw clamp terminals for secure connections to both load and auxiliary circuits. A comprehensive range of accessories is available, facilitating adaptation to diverse application requirements.



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
