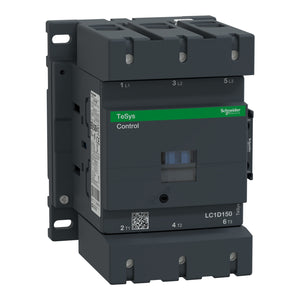

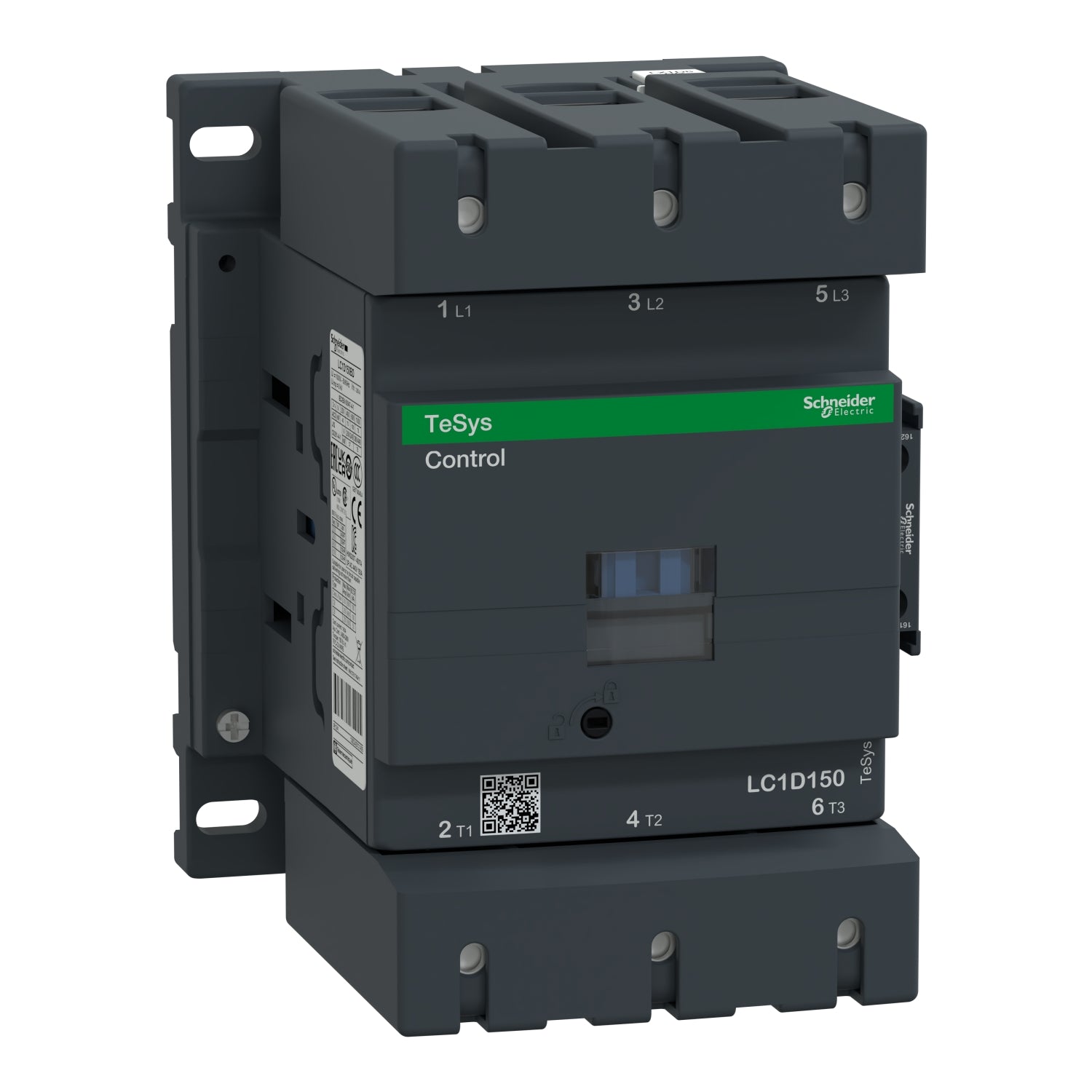

LC1D150BD | Schneider Electric IEC contactor
- Regular price
- $379.00
- Sale price
- $379.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LC1D150BD
Description
The LC1D150BD is an IEC contactor from the TeSys Deca series, designed for non-reversing applications. With a current rating of 150A and a coil voltage of 24VDC, this contactor is suitable for various motor control and power switching tasks.
TeSys D contactors are seamlessly integrated into control systems, offering versatility in creating motor starters for diverse applications. They are available in 13 contactor ratings, supporting inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps.
This 3-pole contactor can be mounted on DIN rail or directly onto a panel, offering flexibility in installation. It features both Horsepower and Kw motor ratings for international compatibility, supporting motor ratings of 40HP at 200-208VAC, 50HP at 240VAC, 100HP at 480VAC, and 125HP at 600VAC three-phase.
Technical Specifications
|
Part # |
LC1D150BD |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
TELEMECANIQUE |
|
Category |
Contactors & Starters |
|
Subcategory |
Contactor |
|
Poles |
3P |
|
Rated Operational Voltage |
Power circuit: ≤ 1000V AC 25...400Hz, Power circuit: ≤ 300V DC |
|
Rated Operational Current |
200A (at <60°C) at ≤ 440V AC AC-1 for power circuit, 150A (at <60°C) at ≤ 440V AC AC-3 for power circuit, 150A (at <60°C) at ≤ 440V AC AC-3e for power circuit |
|
Control Circuit Voltage |
24V DC |
|
Product Type |
Contactor |
|
Device Short Name |
LC1D |
|
Pole Contact Composition |
3 NO |
|
Protective Cover |
With |
|
Conventional Free Air Thermal Current |
200A (at 60°C) for power circuit |
|
Rated Breaking Capacity |
1400A at 440V for power circuit conforming to IEC 60947 |
|
Overvoltage Category |
III |
|
Pollution Degree |
3 |
|
Rated Impulse Withstand Voltage |
8kV conforming to IEC 60947 |
|
Control Circuit Type |
DC standard |
|
Coil Technology |
With integral suppression device |
|
Inrush Power (W) |
270…365W (at 20°C) |
|
Hold-in Power Consumption (W) |
2.4…5.1W at 20°C |
|
Time Constant |
25ms |
|
Maximum Operating Rate |
1200 cyc/h 60°C |
|
Signalling Circuit Frequency |
25...400Hz |
|
Minimum Switching Voltage |
17V for signalling circuit |
|
Minimum Switching Current |
5mA for signalling circuit |
|
Insulation Resistance |
> 10MOhm for signalling circuit |
|
IP Degree of Protection |
IP20 front face conforming to IEC 60529 |
|
Protective Treatment |
TH conforming to IEC 60068-2-30 |
|
Climatic Withstand |
Conforming to IACS E10 exposure to damp heat |
|
Permissible Ambient Air Temperature |
-40…60°C, 60…70°C with derating |
|
Operating Altitude |
0...3000m |
|
Fire Resistance |
850°C conforming to IEC 60695-2-1 |
Information About LC1D150BD
The LC1D150BD is an IEC contactor from the TeSys Deca series, designed for nonreversing applications. It is capable of handling currents up to 150A and is rated for operating with a voltage of 480VAC. This contactor boasts a Short Circuit Current Rating (SCCR) of up to 100kA, ensuring robust performance in demanding industrial environments.
Featuring a 3-phase configuration and 3 normally open (NO) poles, this contactor is suitable for various motor control applications. Its 24VDC coil, equipped with a transient suppressor module, ensures reliable operation and facilitates integration into control systems.
Designed for versatility, the LC1D150BD contactor can be mounted on DIN rail or directly to a panel, offering flexibility in installation. It accommodates both horsepower and kilowatt motor ratings, meeting international standards for broad acceptance.
This contactor is adept at handling different voltage levels, with ratings of 40HP at 200 to 208VAC, 50HP at 240VAC, 100HP at 480VAC, and 125HP at 600VAC in three-phase configurations. When paired with appropriate circuit protection, such as a 480VAC up to 250A circuit breaker or a 600VAC 300A Class J or CC fuse, it can achieve the high SCCR of up to 100kA, ensuring safe operation.
Equipped with one normally open and one normally closed auxiliary contact as standard, the LC1D150BD contactor provides additional control options. Its screw clamp terminals facilitate secure connections for both load and auxiliary circuits.
Measuring 6.22 inches in height, 4.72 inches in width, and 5.35 inches in depth, with a weight of 5.51 lbs, this contactor offers a compact and lightweight design suitable for various industrial applications.
Certified to UL, CSA, IEC, CCC, EAC, and Marine standards, the LC1D150BD contactor meets stringent quality and safety requirements. Additionally, it complies with RoHS/REACh regulations, making it an environmentally friendly choice as a Green Premium product.
