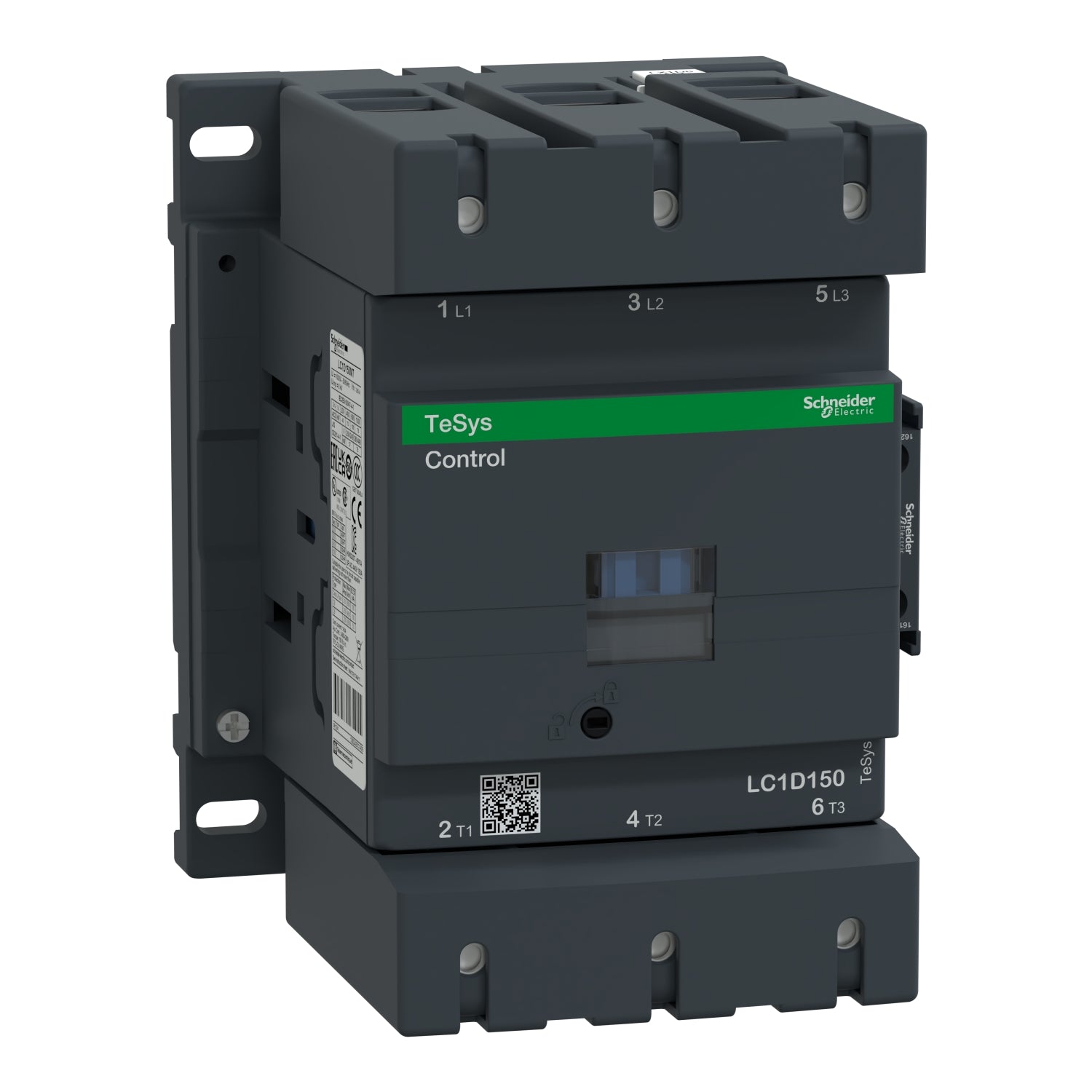

LC1D150G7 | Schneider Electric TeSys D Non-Reversing 3-Pole IEC Contactor 150 A, 120 VAC Coil
- Regular price
- $404.00
- Sale price
- $404.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LC1D150G7
Description
The Schneider Electric LC1D150G7 is a high-capacity TeSys D IEC contactor built for demanding motor and power control applications. This model provides dependable switching performance with a 120 V coil, a 150 A inductive rating, and robust mechanical endurance for continuous industrial duty.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Contactors & Starters |
| Part Number | LC1D150G7 |
| Subcategory | Contactor |
| Coil Voltage | 120 VAC / 120–1000 VAC / 300 VDC |
| Coil Power Rating | 2–18 VA (AC), 280–350 VA inrush, 2–18 VA hold-in |
| Wattage | 13.5/24 W |
| Number of Poles | 3 |
| Contact Configuration | 3NO main contacts |
| Auxiliary Contacts | 1NO–1NC |
| Contact Rating | 60/200 A at 600 VAC |
| Contact Type | Non-reversing |
| Operating Cycles | 1200 cycles/hr; 8,000,000 mechanical cycles |
| Mounting Type | Plate/Rail or Surface Mount |
| Connection Type | Screw clamp terminals |
| Enclosure Rating | IP2X |
| Frequency Rating | 50/60 Hz |
| Power Factor | 0.9 inrush / 0.9 hold-in |
| Series | LC1D (TeSys D Line) |
| Dimensions | 120 mm W × 132/136 mm D × 158 mm H |
| Operating Temperature | –5 to 60 °C (operation), –40 to 70 °C (storage) |
| Size Class | 120/136/158 mm |
| Type | D-Line IEC Contactor |
| Application | Motor control and heavy-load switching |
Information About LC1D150G7
The LC1D150G7 is part of Schneider Electric’s TeSys D contactor series, engineered for seamless integration into industrial motor starters and power control assemblies. The device is built with a rugged frame and a high-performance coil system that supports a wide input range, enabling compatibility with many global power standards. Its compact yet durable construction ensures reliable operation in environments requiring frequent switching, high load currents, and long mechanical life. This model is commonly used in motor control centers, HVAC systems, conveyors, and other equipment that demands consistent electrical switching under continuous-duty conditions.
Key Features:
- High-capacity 150 A inductive rating: supports large three-phase motors and heavy resistive loads with stable electrical performance.
- Wide-range 120 VAC coil system: provides strong inrush capability and dependable hold-in characteristics during continuous operation.
- Non-reversing 3-pole design: offers straightforward power switching for forward-direction motor applications without additional wiring complexity.
- Integrated auxiliary contacts: includes 1NO and 1NC mirror-certified contacts for reliable status signaling and safety-related feedback.
- Robust mechanical endurance: rated for up to 8 million cycles, ensuring long-term operation in high-frequency switching environments.
- Screw clamp terminals: enable secure conductor fastening and vibration-resistant connectivity in industrial control panels.
- IP2X finger-safe enclosure: enhances safety during installation and maintenance while meeting IEC protective standards.
- Versatile mounting options: supports rail or surface mounting to simplify installation in motor control centers and equipment enclosures.
The LC1D150G7 delivers the reliability and precision required for heavy-duty motor starting, high-load switching, and continuous industrial power control.
