LC1D18B7 | Schneider Electric IEC Contactor, TeSys Deca, Nonreversing
- Regular price
- $60.00
- Sale price
- $60.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

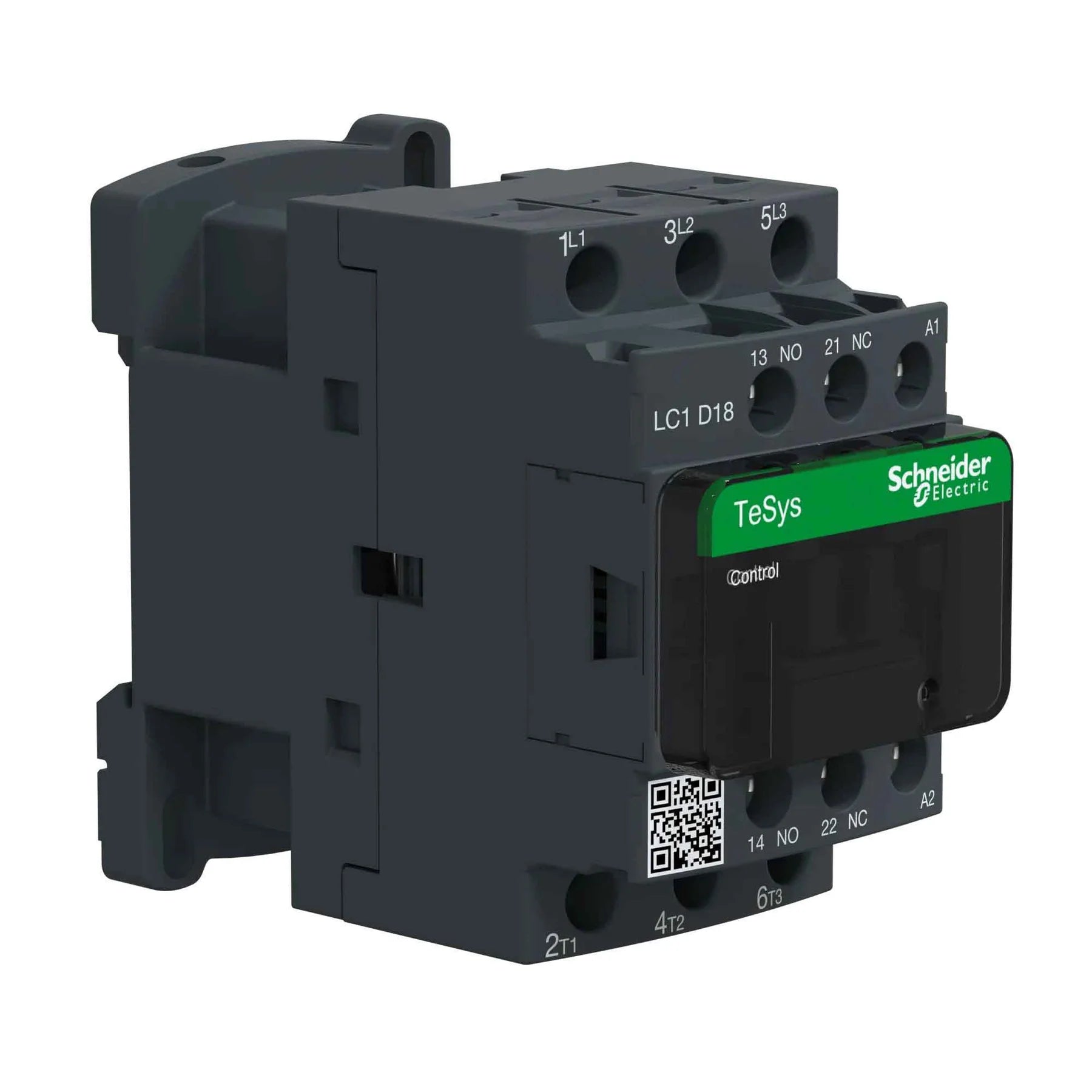

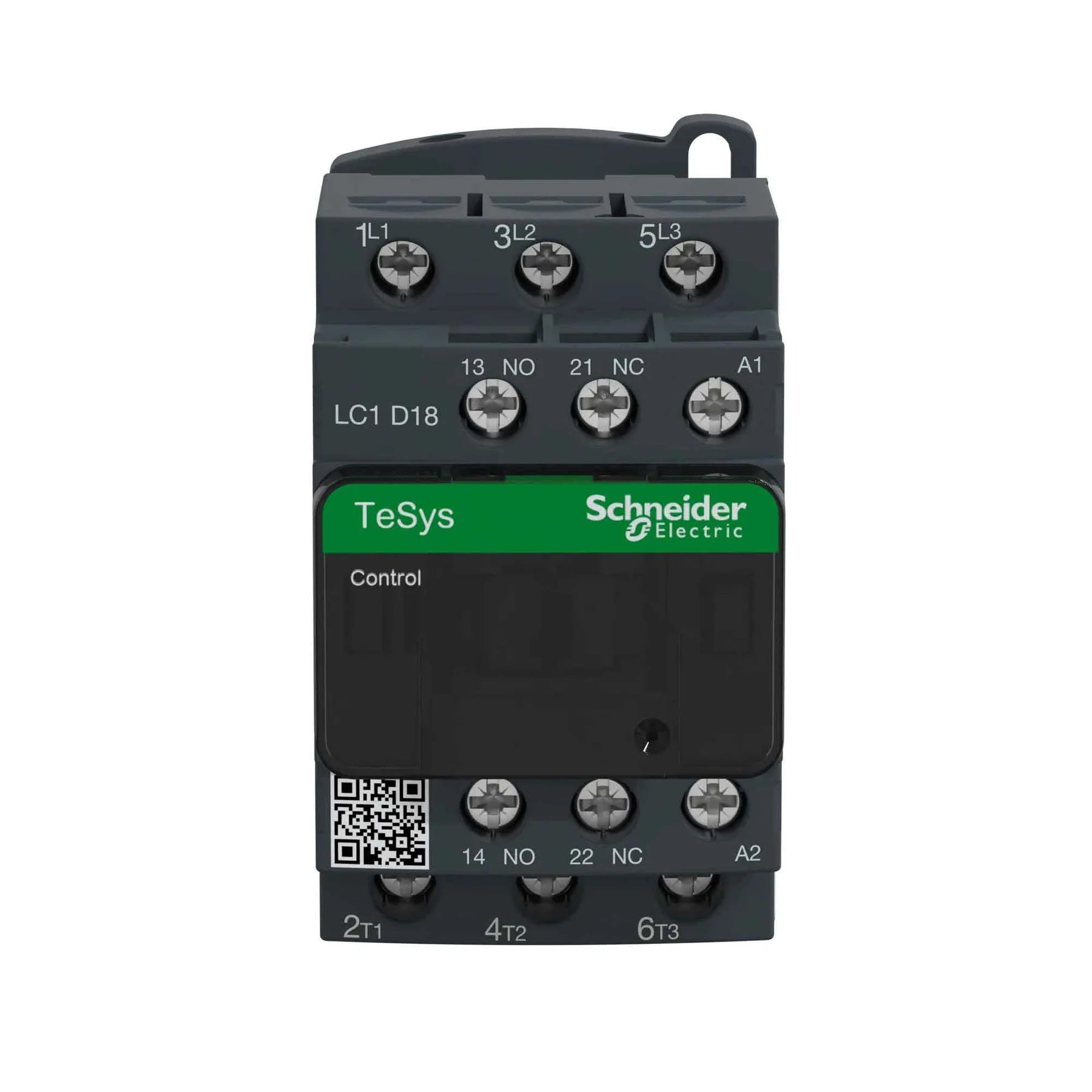

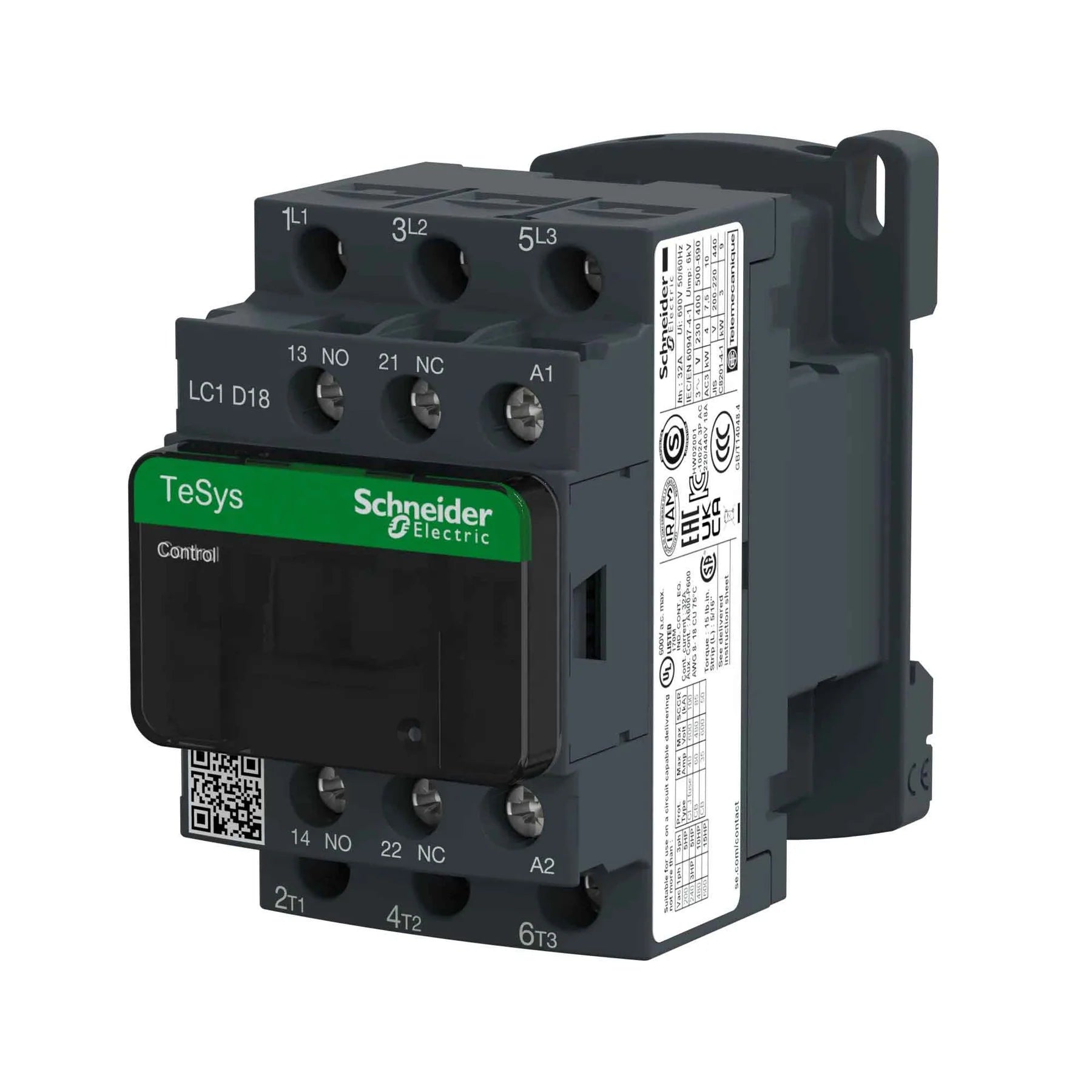

Product Description P/N: LC1D18B7
Description
The TeSys D series contactors, exemplified by the LC1D18B7 model, are engineered for seamless integration into control systems, offering versatile motor starter solutions across a wide range of applications. Designed for reliability, these contactors come in 13 ratings suited for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This specific 18A, 3-pole IEC contactor supports DIN rail mounting or direct panel installation.
The LC1D18B7 contactor is rated for international motor acceptance, with specific ratings including 5HP at 200-208VAC, 5HP at 240VAC, 10HP at 480VAC, and 15HP at 600VAC for three-phase applications. It also supports 1HP at 115VAC and 3HP at 240VAC for single-phase configurations. When paired with a 480VAC circuit breaker up to 60A, the contactor achieves a Short-Circuit Current Rating (SCCR) of up to 85kA. Utilizing a 600VAC 40A Class J or CC fuse extends the SCCR capability to 100kA.
Technical Specifications
|
Part # |
LC1D18B7 |
|
Category |
Contactors & Starters |
|
Subcategory |
Contactor |
|
Range of Product |
TeSys Deca |
|
Product or Component Type |
Contactor |
|
Device short name |
LC1D |
|
Poles description |
3P |
|
[Ue] rated operational voltage |
Power circuit <= 690 V AC 25...400 Hz |
|
[Uc] control circuit voltage |
24 V AC 50/60 Hz |
|
Compatibility code |
LC1D |
|
Pole contact composition |
3 NO |
|
Protective cover |
With |
|
[Ith] conventional free air thermal current |
10 A (at 140 °F (60 °C)) for signalling circuit, 32 A (at 140 °F (60 °C)) for power circuit |
|
Rated breaking capacity |
300 A at 440 V for power circuit conforming to IEC 60947 |
|
Average impedance |
2.5 mOhm - Ith 32 A 50 Hz for power circuit |
|
Overvoltage category |
III |
|
Pollution degree |
3 |
|
[Uimp] rated impulse withstand voltage |
6 kV IEC 60947 |
|
Safety reliability level |
B10d = 1,369,863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20,000,000 cycles contactor with mechanical load EN/ISO 13849-1 |
|
Mechanical durability |
15 Mcycles |
|
Control circuit type |
AC 50/60 Hz standard |
|
Coil technology |
Without built-in suppressor module |
|
Heat dissipation |
2…3 W at 50/60 Hz |
|
Operating time |
12...22 ms closing, 4...19 ms opening |
|
Maximum operating rate |
3600 cyc/h |
|
140 °F (60 °C) auxiliary contact composition |
1 NO + 1 NC |
|
Auxiliary contacts type |
Mechanically linked 1 NO + 1 NC IEC 60947-5-1, Mirror contact 1 NC IEC 60947-4-1 |
|
Signalling circuit frequency |
25...400 Hz |
|
Minimum switching voltage |
17 V for signalling circuit |
|
Minimum switching current |
5 mA for signalling circuit |
|
Insulation resistance |
> 10 MOhm for signalling circuit |
|
Non-overlap time |
1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact |
|

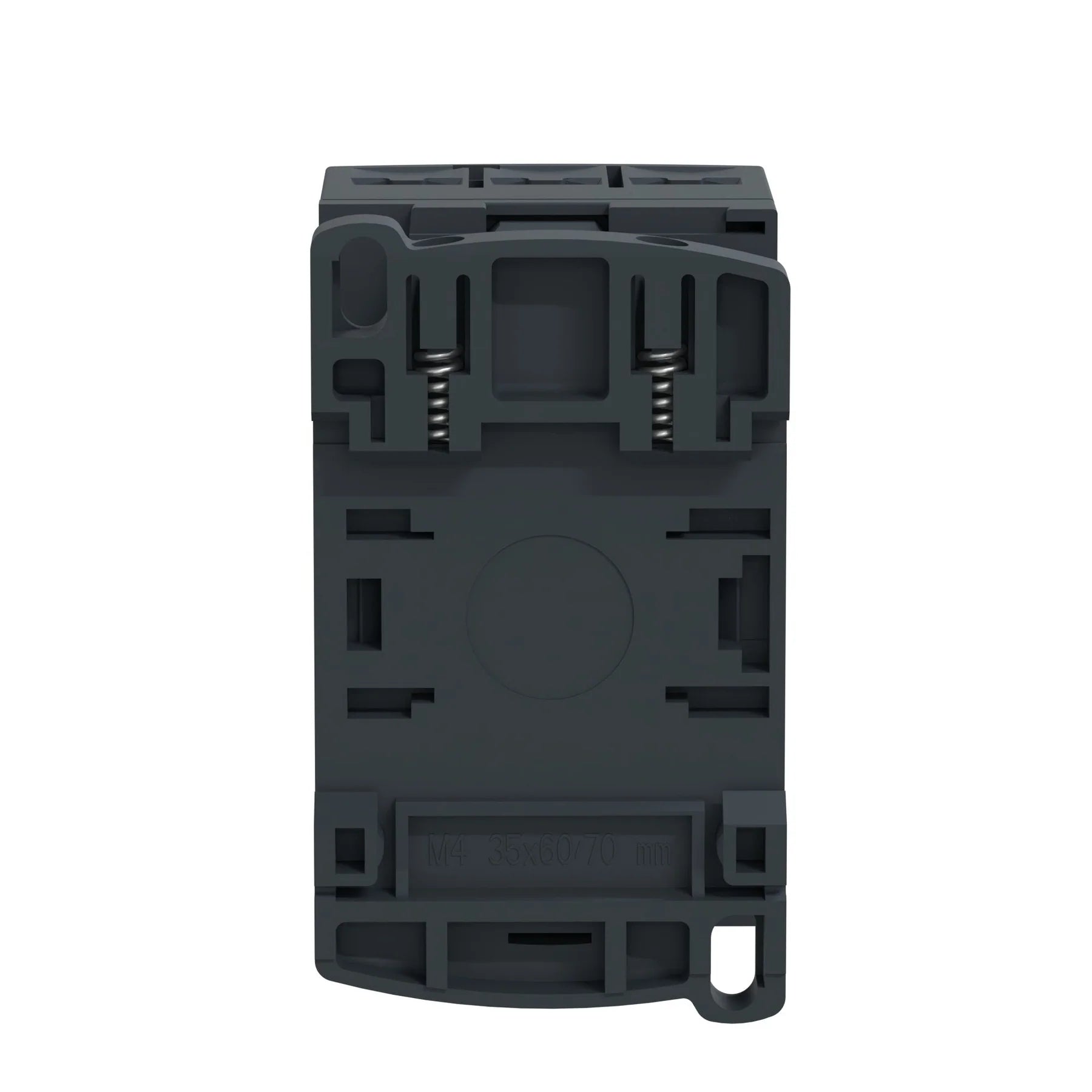

Mounting Support |
Rail, Plate |
Information About LC1D18B7
The LC1D18B7 IEC Contactor from the TeSys Deca series is meticulously engineered for seamless integration into control systems, particularly suited for motor starter applications across diverse industrial settings. These contactors are available in a range of 13 ratings tailored for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. Featuring an 18A inductive rating with 3 poles, this contactor can be conveniently mounted on DIN rail or directly onto a panel.
To ensure global compatibility, the TeSys D contactor is dual-rated in both horsepower (HP) and kilowatt (kW) configurations. It supports motor ratings of 5HP at 200-208VAC, 5HP at 240VAC, 10HP at 480VAC, and 15HP at 600VAC for three-phase systems. For single-phase applications, it is rated for 1HP at 115VAC and 3HP at 240VAC.
When integrated with a 480VAC circuit breaker rated up to 60A, the LC1D18B7 achieves a Short-Circuit Current Rating (SCCR) of up to 85kA. Utilizing a 600VAC 40A Class J or CC fuse increases the SCCR to 100kA, ensuring robust protection in high-current applications. The contactor operates with a 24 VAC coil frequency of 50/60 Hz, facilitating reliable control in varied operational environments.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
