LC1D18G7 | Schneider Electric IEC Contactor, TeSys Deca
LC1D18G7 | Schneider Electric IEC Contactor, TeSys Deca
LC1D18G7 | Schneider Electric IEC Contactor, TeSys Deca
    LC1D18G7 | Schneider Electric IEC Contactor, TeSys Deca
LC1D18G7 | Schneider Electric IEC Contactor, TeSys Deca

LC1D18G7 | Schneider Electric IEC Contactor, TeSys Deca

Part #: LC1D18G7 Manufactured by: Schneider Electric
Regular price
$199.00
Sale price
$199.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The LC1D18G7 IEC Contactor from the TeSys Deca series is a nonreversing device designed for seamless integration into cont...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: LC1D18G7
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: LC1D18G7

Description / Specifications

Description

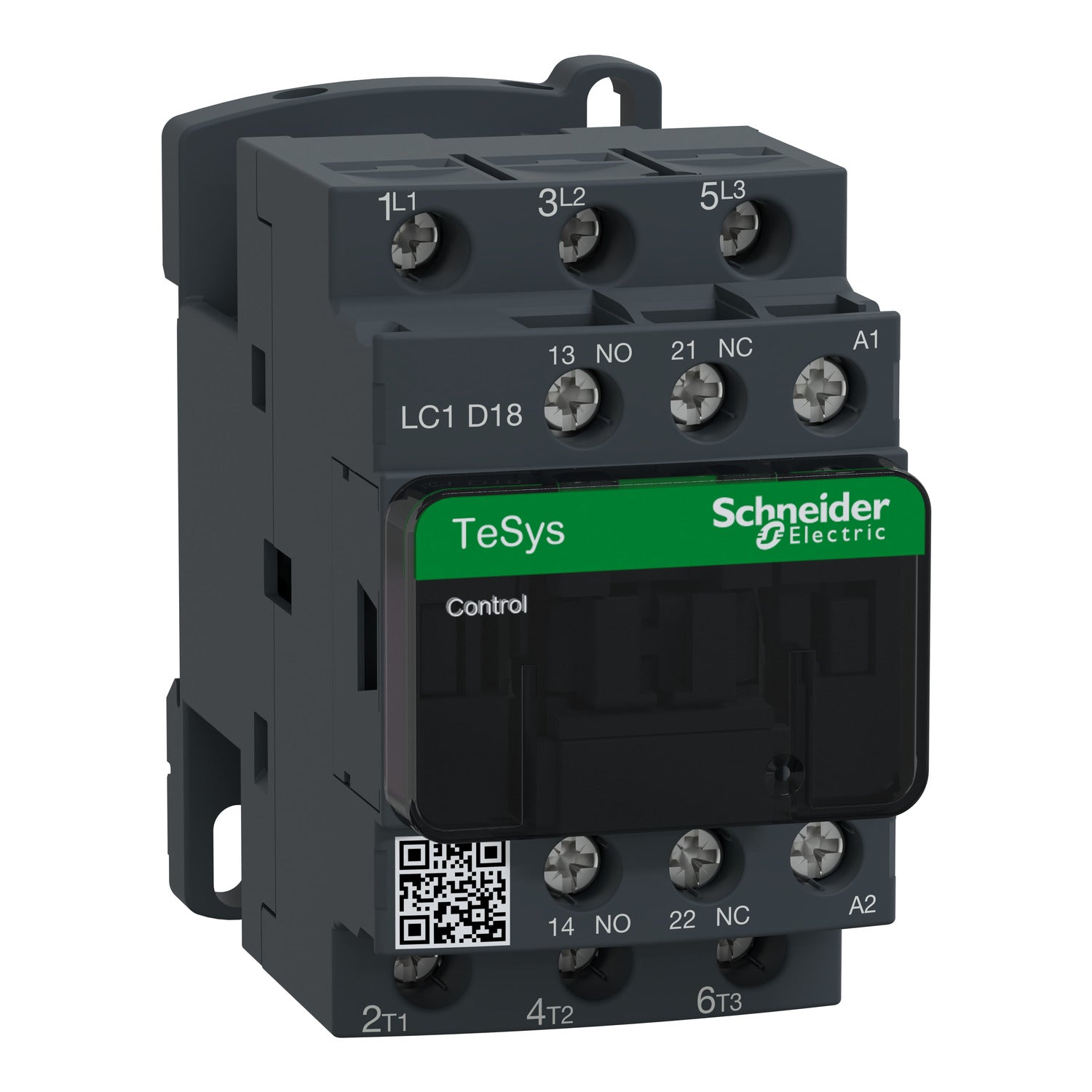

The LC1D18G7 IEC Contactor from TeSys Deca series is engineered for seamless integration into control systems, serving as versatile motor starters across diverse applications. Featuring a robust 18A inductive 3-pole design, it supports DIN rail or panel mounting for flexible installation options.

TeSys D contactors are available in various ratings tailored for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. Internationally recognized, this contactor accommodates both Horsepower and Kw motor ratings, ensuring broad compatibility.

For three-phase systems, it supports 5HP at 200-208VAC, 5HP at 240VAC, 10HP at 480VAC, and 15HP at 600VAC. In single-phase applications, it operates at 1HP at 115VAC and 3HP at 240VAC. When paired with appropriate protective devices, such as a 480VAC 60A circuit breaker or a 600VAC 40A Class J or CC fuse, it achieves Short-Circuit Current Ratings (SCCR) up to 85kA and 100kA, respectively.





Technical Specifications


Part #

LC1D18G7

Category

Contactors & Starters

Subcategory

Contactor

Range of Product

TeSys Deca

Product or Component Type

Contactor

Device short name

LC1D

Poles Description

3P

Rated Operational Voltage [Ue]

Power circuit ≤ 690 V AC 25...400 Hz

Control Circuit Voltage [Uc]

120 V AC 50/60 Hz

Compatibility Code

LC1D

Pole Contact Composition

3 NO

Protective Cover

With

Conventional Free Air Thermal Current [Ith]

10 A (at 140 °F (60 °C)) for signalling circuit<br>32 A (at 140 °F (60 °C)) for power circuit

Rated Breaking Capacity

300 A at 440 V for power circuit conforming to IEC 60947

Average Impedance

2.5 mOhm - Ith 32 A 50 Hz for power circuit

Overvoltage Category

III

Pollution Degree

3

Rated Impulse Withstand Voltage [Uimp]

6 kV IEC 60947

Safety Reliability Level

B10d = 1,369,863 cycles contactor with nominal load EN/ISO 13849-1<br>B10d = 20,000,000 cycles contactor with mechanical load EN/ISO 13849-1

Mechanical Durability

15 Mcycles

Control Circuit Type

AC 50/60 Hz

Coil Technology

Without built-in suppressor module

Heat Dissipation

2…3 W at 50/60 Hz

Operating Time

12...22 ms closing<br>4...19 ms opening

Maximum Operating Rate

3600 cyc/h 140 °F (60 °C)

Auxiliary Contact Composition

1 NO + 1 NC

Auxiliary Contacts Type

Mechanically linked 1 NO + 1 NC IEC 60947-5-1<br>Mirror contact 1 NC IEC 60947-4-1

Signalling Circuit Frequency

25...400 Hz

Minimum Switching Voltage

17 V for signalling circuit

Minimum Switching Current

5 mA for signalling circuit

Insulation Resistance

> 10 MOhm for signalling circuit

IP Degree of Protection

IP20 front face IEC 60529

Protective Treatment

THIEC 60068-2-30

Climatic Withstand

IACS E10 exposure to damp heat<br>IEC 60947-1 Annex Q category D exposure to damp heat

Permissible Ambient Air Temperature

-40…140 °F (-40…60 °C)<br>140…158 °F (60…70 °C) with derating

Operating Altitude

0...9842.52 ft (0...3000 m)

Fire Resistance

1562 °F (850 °C) IEC 60695-2-1

Flame Retardance

V1 conforming to UL 94





Information About LC1D18G7


The LC1D18G7 IEC Contactor from the TeSys Deca series is engineered for seamless integration within control systems, particularly suited for diverse motor starter applications. Offering versatility, these contactors are available in 13 ratings tailored for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps.

This specific 18A inductive 3-pole IEC contactor is adaptable for mounting on DIN rails or directly onto panels, facilitating flexible installation. Its international motor ratings in both Horsepower (HP) and Kilowatts (kW) ensure broad acceptance across various regions and standards. Notably, it supports 5HP at 200-208VAC, 5HP at 240VAC, 10HP at 480VAC, and 15HP at 600VAC for three-phase applications, alongside 1HP at 115VAC and 3HP at 240VAC for single-phase configurations.

When paired with a 480VAC up to 60A circuit breaker, the LC1D18G7 achieves a Short Circuit Current Rating (SCCR) up to 85kA. Alternatively, using up to a 600VAC 40A Class J or CC fuse increases the SCCR capability to 100kA, ensuring robust protection in demanding environments.

Equipped with a 120 VAC 50/60 Hz coil, the contactor features standard auxiliary contacts including one normally open and one normally closed, with the NC contact certified as mirror compliant. Load and auxiliary connections utilize reliable screw clamp terminals, facilitating secure and efficient wiring.



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
