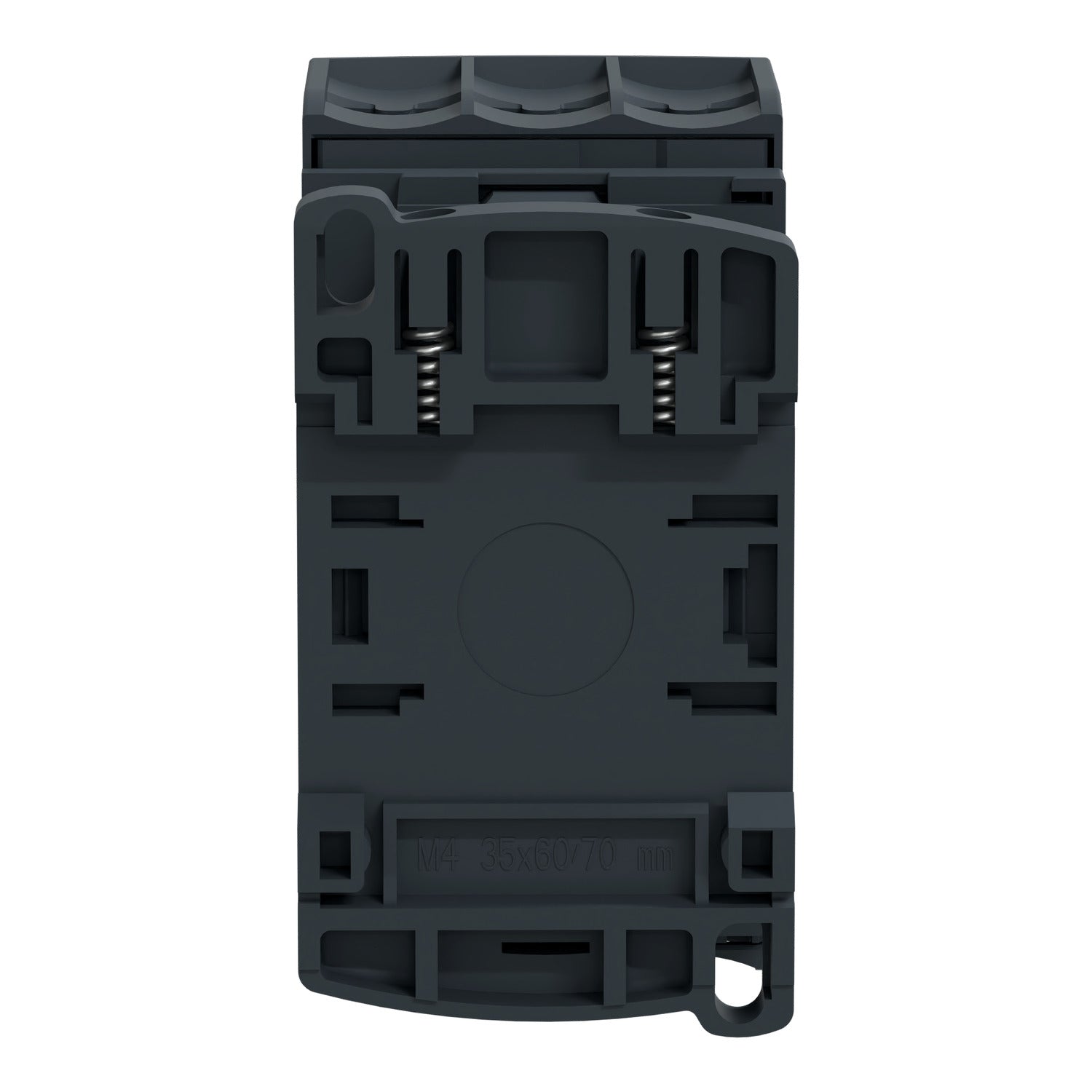

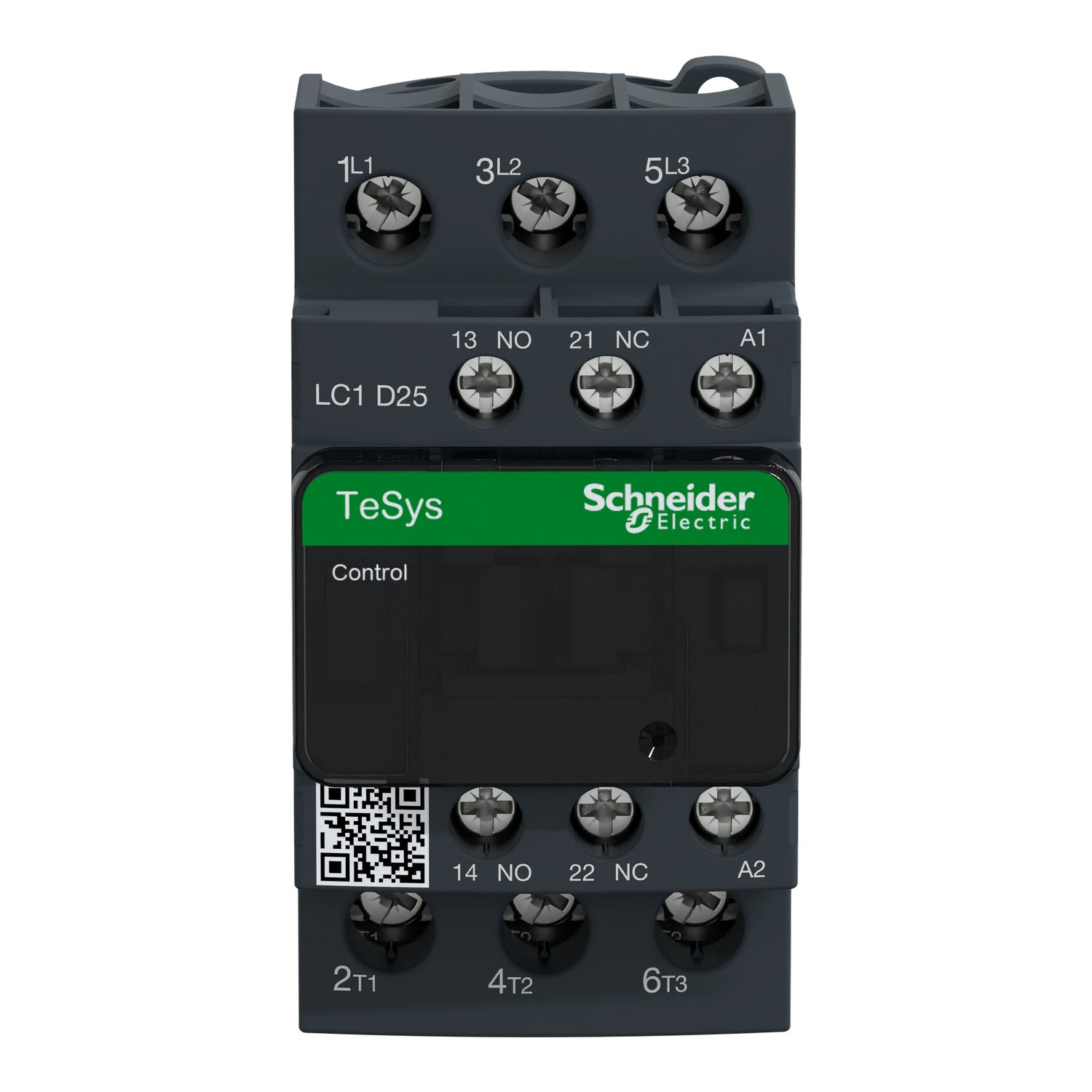

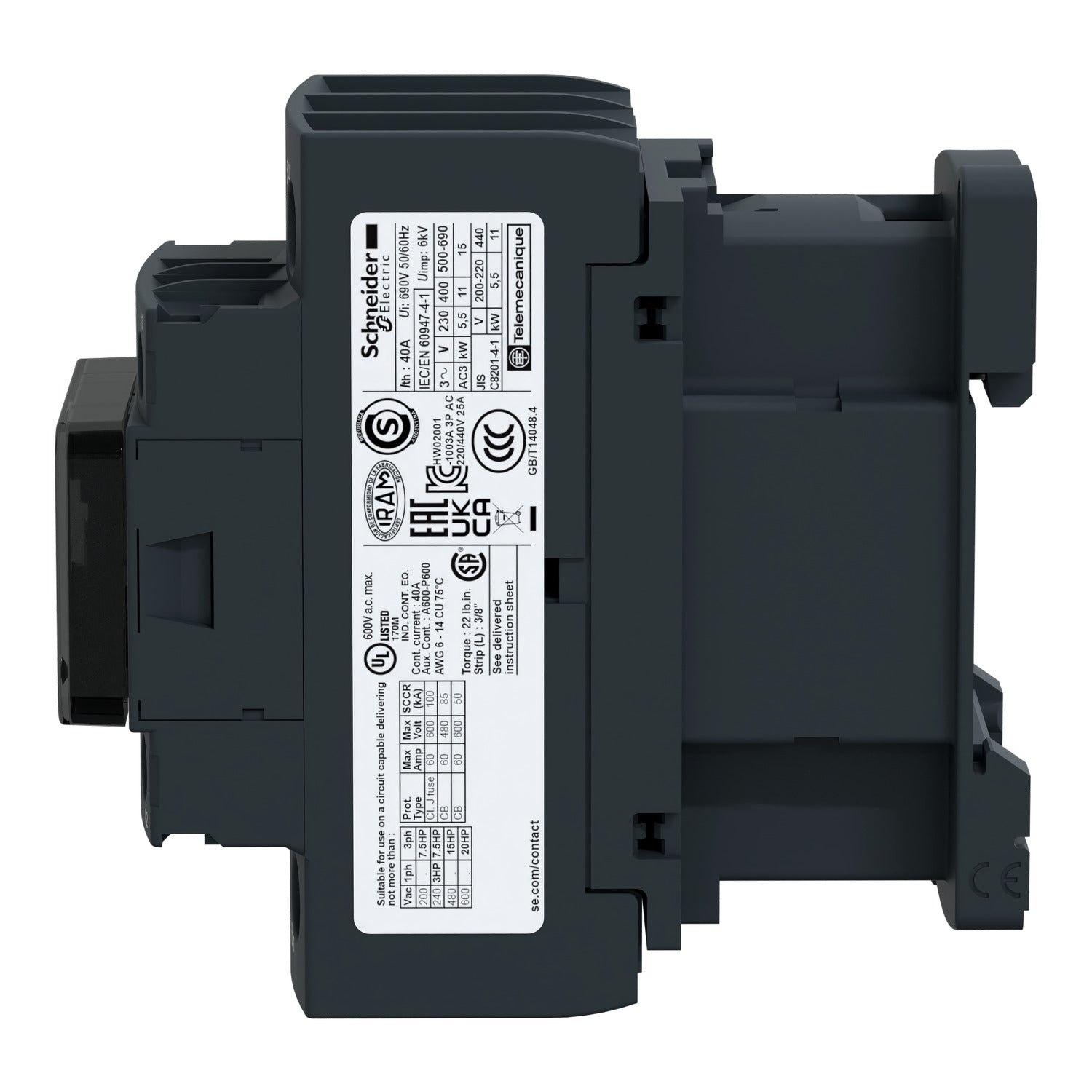

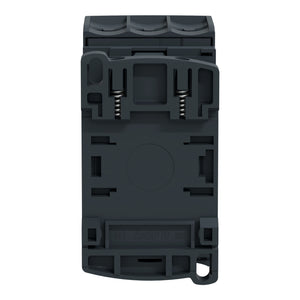

LC1D25G7 | Schneider Electric IEC Contactor, TeSys Deca
- Regular price
- $67.00
- Sale price
- $67.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LC1D25G7
Description

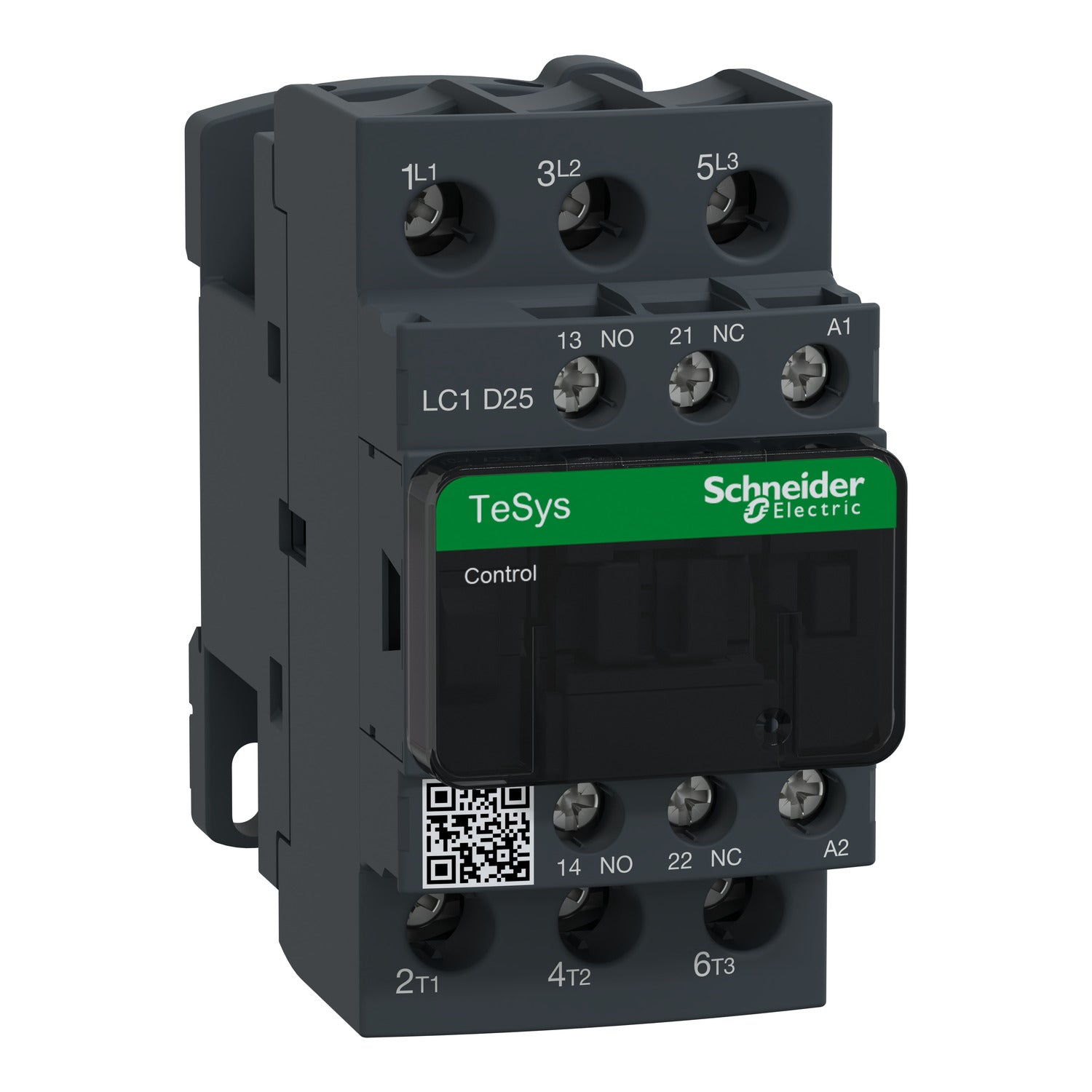

LC1D25G7 is a 3-pole IEC contactor from the TeSys Deca series, designed for seamless integration into control systems for diverse motor starter applications. It features a non-reversing configuration with a 25A current rating suitable for inductive loads. The contactor supports motor ratings of 7.5HP at 200-208VAC, 7.5HP at 240VAC, 15HP at 480VAC, and 20HP at 600VAC in three-phase systems, along with 2HP at 115VAC and 3HP at 240VAC in single-phase setups.
Technical Specifications
|
Part # |
LC1D25G7 |
|
Category |
Contactors & Starters |
|
Subcategory |
Contactor |
|
Range of Product |
TeSys Deca |
|
Product or Component Type |
Contactor |
|
Device short name |
LC1D |
|
Poles description |
3P |
|
[Ue] rated operational voltage |
Power circuit <= 690 V AC 25...400 Hz, <= 300 V DC |
|
[Uc] control circuit voltage |
120 V AC 50/60 Hz |
|
Compatibility code |
LC1D |
|
Pole contact composition |
3 NO |
|
Protective cover |
With |
|
[Ith] conventional free air thermal current |
10 A (at 140 °F (60 °C)) for signalling circuit, 40 A (at 140 °F (60 °C)) for power circuit |
|
Rated breaking capacity |
450 A at 440 V for power circuit conforming to IEC 60947 |
|
Average impedance |
2 mOhm - Ith 40 A 50 Hz for power circuit |
|
Overvoltage category |
III |
|
Pollution degree |
3 |
|
[Uimp] rated impulse withstand voltage |
6 kV IEC 60947 |
|
Safety reliability level |
B10d = 1,369,863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20,000,000 cycles contactor with mechanical load EN/ISO 13849-1 |
|
Mechanical durability |
15 Mcycles |
|
Control circuit type |
AC 50/60 Hz |
|
Coil technology |
Without built-in suppressor module |
|
Inrush power in VA |
70 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)), 70 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C)) |
|
Hold-in power consumption in VA |
7.5 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)), 7 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C)) |
|
Heat dissipation |
2…3 W at 50/60 Hz |
|
Operating time |
12...22 ms closing, 4...19 ms opening |
|
Maximum operating rate |
3600 cyc/h 140 °F (60 °C) |
|
Auxiliary contact composition |
1 NO + 1 NC Mechanically linked IEC 60947-5-1, 1 NC Mirror contact IEC 60947-4-1 |
|
Signalling circuit frequency |
25...400 Hz |
|
Minimum switching voltage |
17 V for signalling circuit |
|
Minimum switching current |
5 mA for signalling circuit |
|
Insulation resistance |
> 10 MOhm for signalling circuit |
|
Non-overlap time |
1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact |
|
Mounting Support |
Rail |
|
Plate IP degree of protection |
IP20 front face IEC 60529 |
|
Protective treatment |
THIEC 60068-2-30 |
|
Climatic withstand |
IACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat |
|
Permissible ambient air temperature around the device |
-40…140 °F (-40…60 °C), 140…158 °F (60…70 °C) with derating |
|
Operating altitude |
0...9842.52 ft (0...3000 m) |
|
Fire resistance |
1562 °F (850 °C) IEC 60695-2-1 |
|
Flame retardance |
V1 conforming to UL 94 |
|
Height |
3.35 in (85 mm) |
|
Width |
1.77 in (45 mm) |
|
Depth |
3.62 in (92 mm) |
|
Net Weight |
0.82 lb(US) (0.37 kg) |
Information About LC1D25G7
The LC1D25G7 TeSys Deca IEC contactor is designed for seamless integration into control systems, primarily used in motor starter applications across various industrial environments. Offering versatility, it supports a wide range of motor ratings, accommodating inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 25A, 3-pole contactor can be conveniently mounted on DIN rail or directly on a panel, ensuring flexibility in installation.
Rated for international acceptance, the contactor features horsepower and kilowatt motor ratings: 7.5HP at 200-208VAC, 7.5HP at 240VAC, 15HP at 480VAC, and 20HP at 600VAC in three-phase configurations. It also supports 2HP at 115VAC and 3HP at 240VAC in single-phase setups. When paired with a 480VAC circuit breaker up to 60A, the contactor achieves a Short-Circuit Current Rating (SCCR) of up to 85kA. Alternatively, with a Class J or CC fuse rated up to 600VAC 60A, it can achieve a higher SCCR of up to 100kA.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
