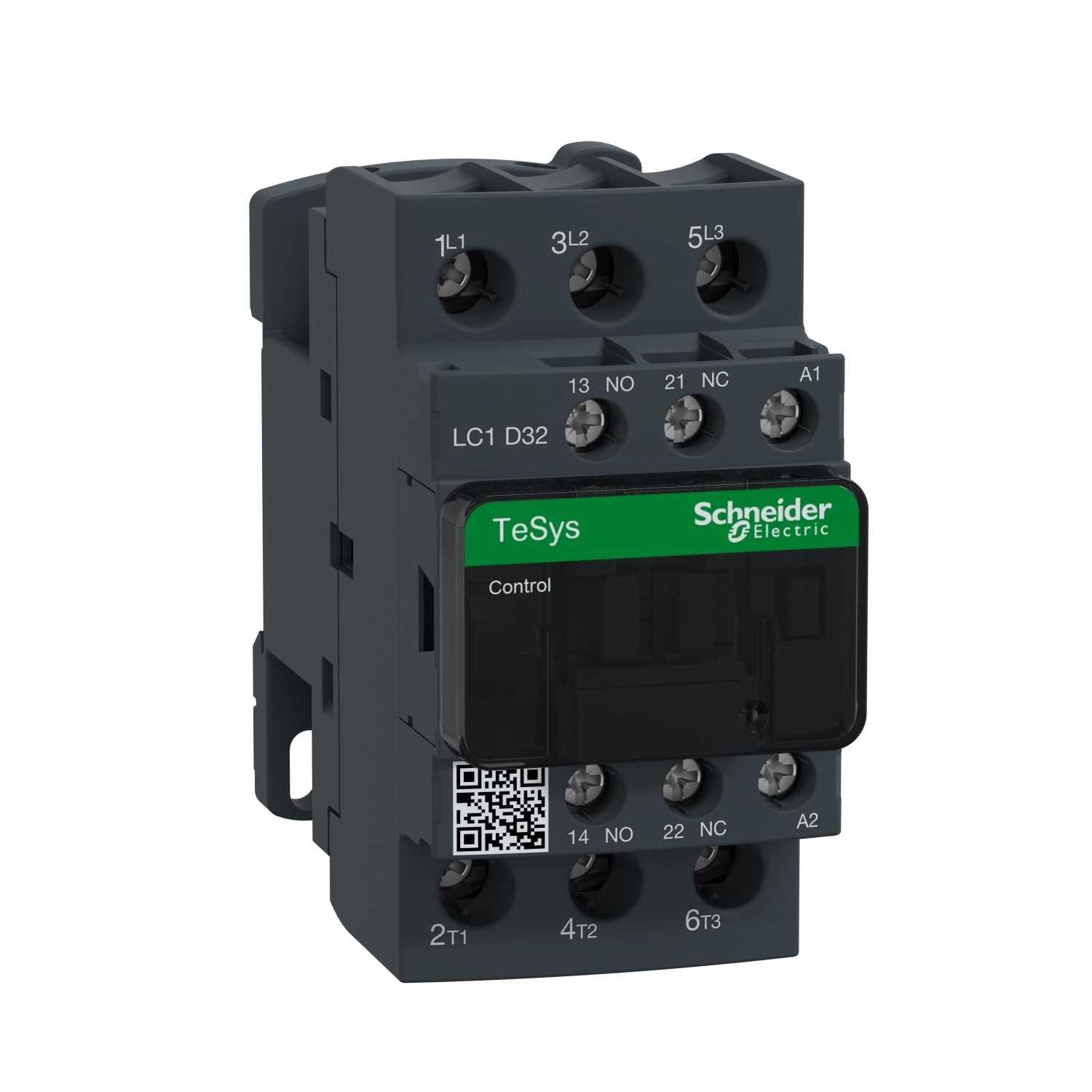

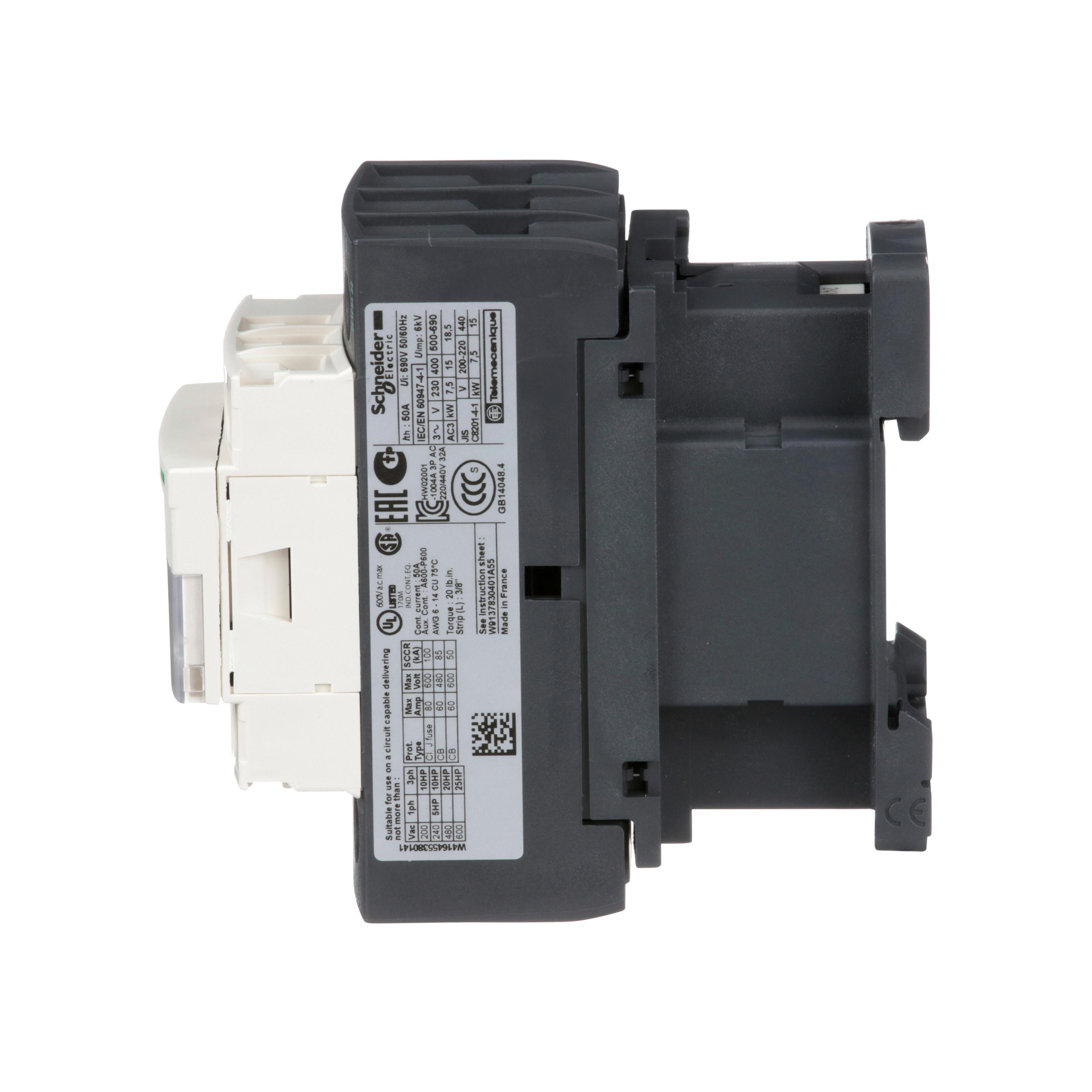

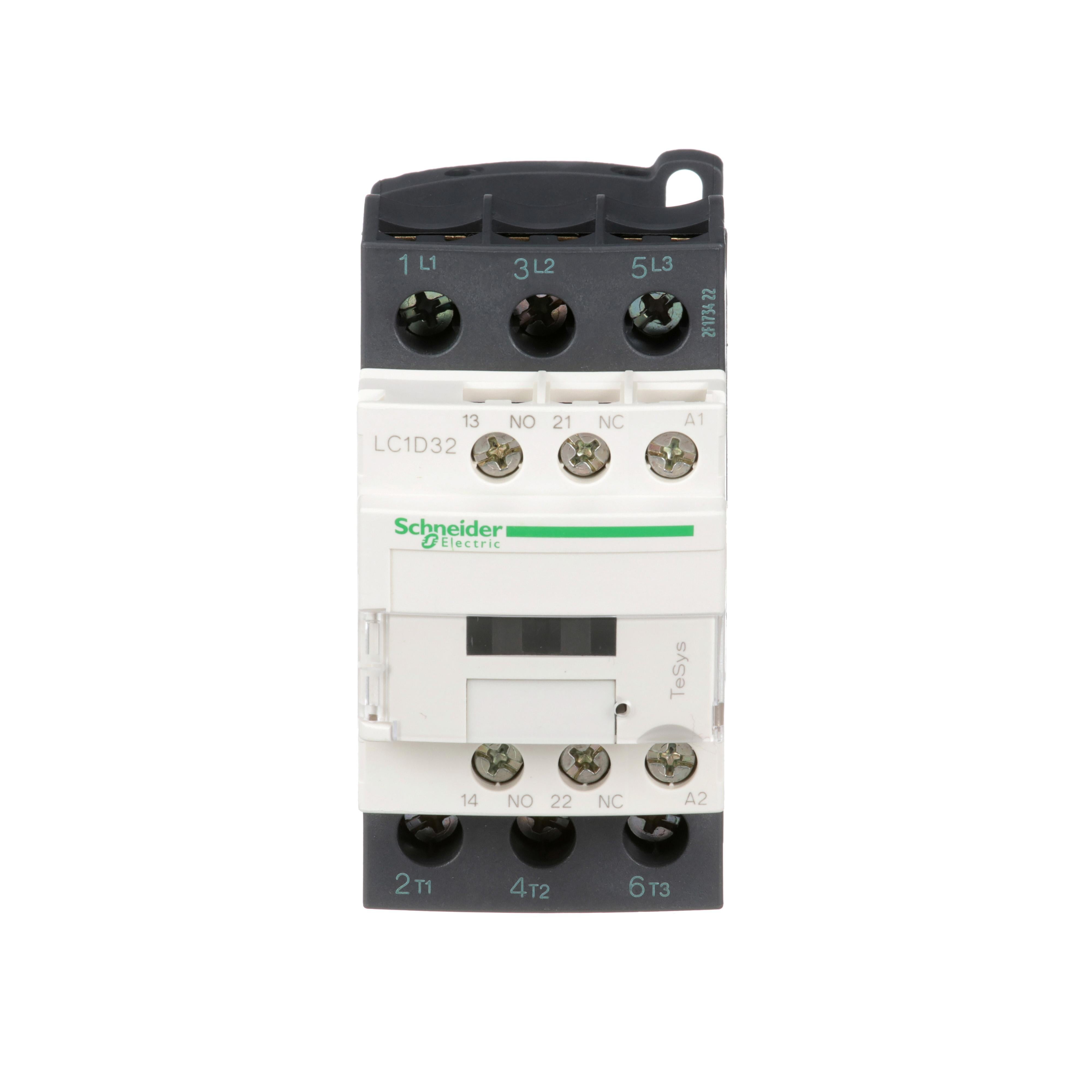

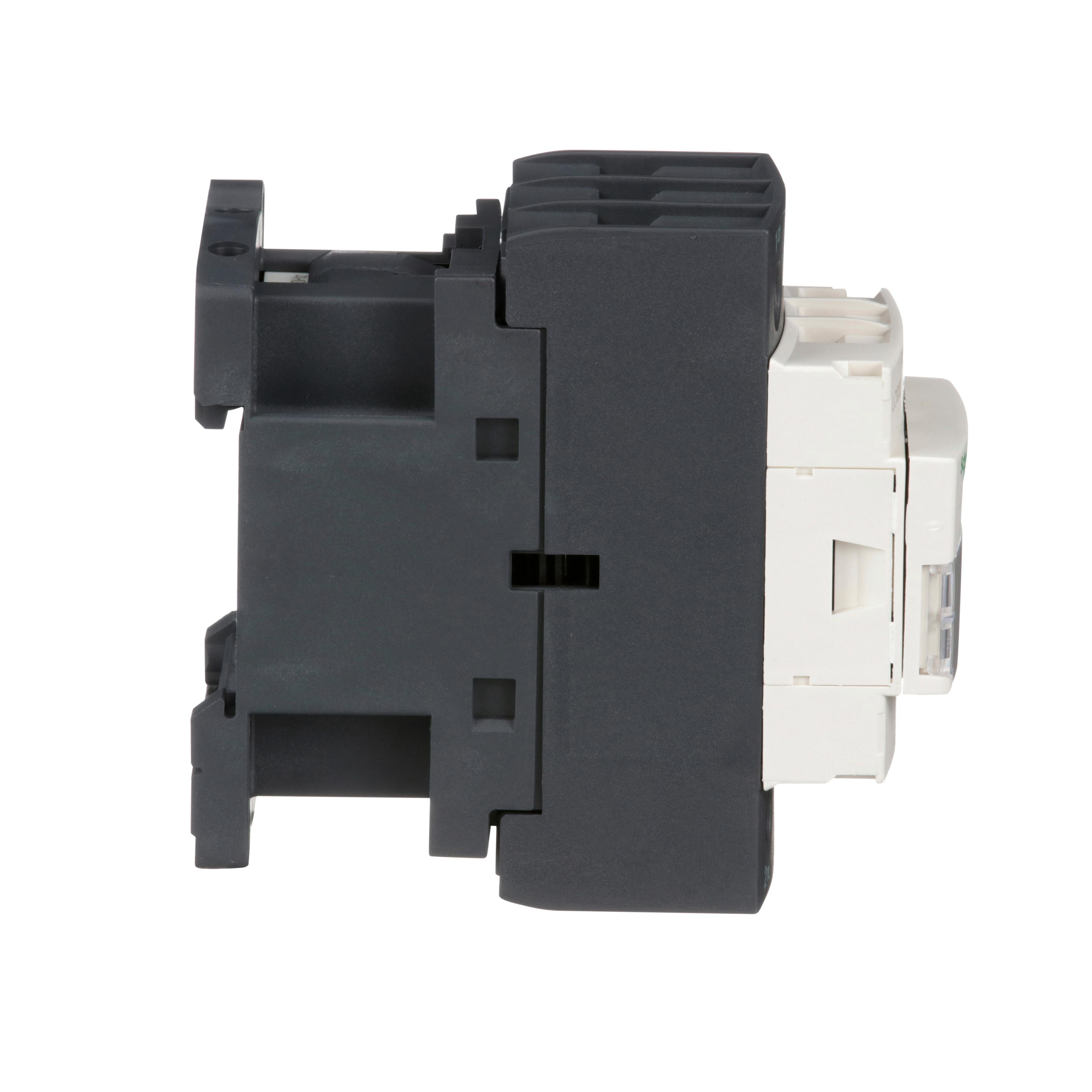

LC1D32B7 | Schneider Electric Tesys D 32 A 3-Pole Non-Reversing Contactor 24 Vac Coil
- Regular price
- $60.00
- Sale price
- $60.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LC1D32B7
Description
The Schneider Electric LC1D32B7 is a robust 3-pole IEC contactor designed for reliable motor control and general-purpose switching in industrial systems. Operating on a 24 VAC coil at 50/60 Hz, it provides solid-state performance, dependable operation, and compatibility with a wide range of TeSys D accessories.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Part Number | LC1D32B7 |
| Category | Contactors & Starters |
| Subcategory | Contactor |
| Range | TeSys D |
| Series | LC1D |
| Coil Voltage | 24 VAC, 50/60 Hz |
| Number of Poles | 3 |
| Power Rating | 15 kW |
| Contact Voltage Rating | 690 VAC |
| Contact Current Rating | 32 A |
| Normal State Configuration | 3NO |
| Auxiliary Contacts | 2 (1NO + 1NC) |
| Terminal Type | Screw Clamp |
| Min Operating Temperature | –5°C |
| Max Operating Temperature | +60°C |
Information About LC1D32B7
The Schneider Electric LC1D32B7 is a non-reversing 3-phase contactor within the TeSys D family, engineered for seamless integration in motor control centers and automation panels. Built to handle up to 32 A and 15 kW, it supports a wide range of motor starter configurations and switching duties for both inductive and resistive loads. The unit operates using a 24 VAC coil, making it suitable for systems employing low-voltage control circuits. Designed with screw clamp terminals and a compact form factor, the LC1D32B7 offers simple installation on DIN rail or panel surfaces. With certifications including UL, CSA, IEC, CCC, EAC, and Marine approvals, it ensures compliance across global applications while delivering stable performance in temperatures from –5°C to +60°C. As part of the TeSys D series, it is supported by an extensive accessory range that enhances its adaptability in diverse industrial environments.
Key Features:
- 3-Pole 32 A Contactor: Suitable for motor loads and resistive switching up to 15 kW.
- 24 VAC Coil Operation: Compatible with low-voltage control systems for safe and reliable actuation.
- TeSys D Platform: Integrates with Schneider Electric’s modular accessories for flexible configuration.
- High Voltage Endurance: Rated for 690 VAC operation in industrial power circuits.
- Built-In Auxiliary Contacts: Includes 1NO and 1NC contacts for control logic feedback.
- DIN Rail or Panel Mounting: Allows quick installation in motor control centers or automation panels.
- Wide Temperature Range: Operates reliably from –5°C to +60°C in standard industrial conditions.
- Global Certifications: Meets UL, CSA, IEC, CCC, EAC, and Marine standards for worldwide use.
The LC1D32B7 delivers the reliability and precision required for industrial motor starting and control applications within the TeSys D family.
