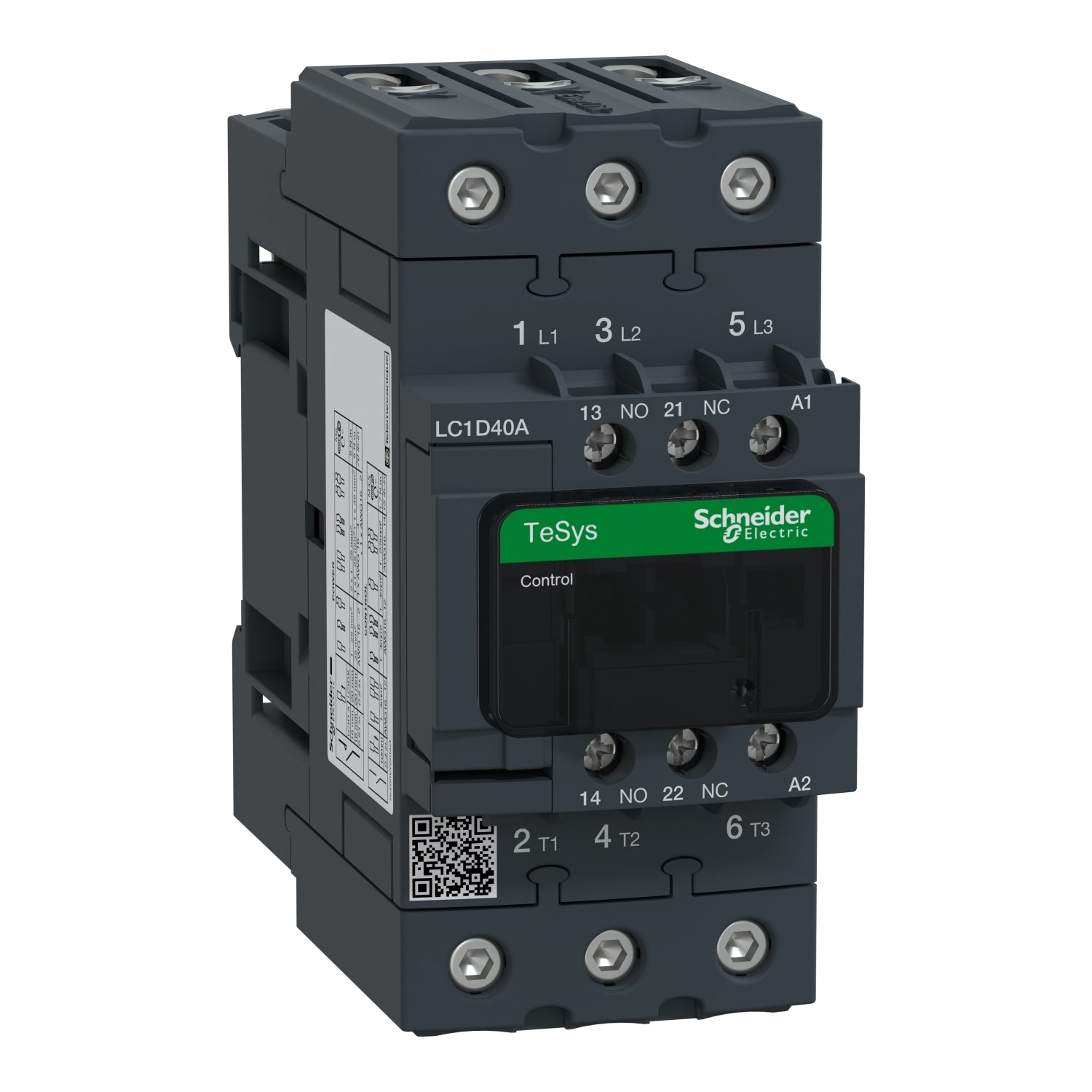

LC1D40AG7 | Schneider Electric IEC Contactor
LC1D40AG7 | Schneider Electric IEC Contactor
Part #: LC1D40AG7 Manufactured by: Schneider Electric

LC1D40AG7 | Schneider Electric IEC Contactor

Regular price
$219.00
Sale price
$219.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The LC1D40AG7 is an IEC contactor from the TeSys Deca series, engineered for seamless integration into control systems, pa...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: LC1D40AG7
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
LC1D40AG7 | Schneider Electric IEC Contactor
    LC1D40AG7 | Schneider Electric IEC Contactor
LC1D40AG7 | Schneider Electric IEC Contactor
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: LC1D40AG7

Description / Specifications

Description

LC1D40AG7 is an IEC Contactor from the TeSys Deca series, designed for non-reversing applications. Engineered for seamless integration into control systems, TeSys D contactors serve as versatile components for creating motor starters across a wide range of applications.

This particular contactor features a 40A inductive 3 pole design, suitable for inductive motor applications. It offers compatibility with DIN rail mounting or direct panel mounting for flexible installation options. With 13 contactor ratings available, it supports inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps.



Technical Specifications

Part #

LC1D40AG7

Category

Contactors & Starters

Subcategory

Contactor

Range of product

TeSys Deca

Product or component type

Contactor

Device short name

LC1D

Poles description

3P

[Ue] rated operational voltage

Power circuit <= 690 V AC 25...400 Hz <br> Power circuit <= 300 V DC

[Ie] rated operational current

60 A (at <140 °F (60 °C)) at <= 440 V AC AC-1 for power circuit <br> 40 A (at <140 °F (60 °C)) at <= 440 V AC AC-3 for power circuit <br> 40 A (at <140 °F (60 °C)) at <= 440 V AC AC-3e for power circuit

[Uc] control circuit voltage

120 V AC 60 Hz Compatibility code LC1D

Pole contact composition

3 NO

Protective cover

With

[Ith] conventional free air thermal current

10 A (at 140 °F (60 °C)) for signalling circuit <br> 60 A (at 140 °F (60 °C)) for power circuit

Irms rated making capacity

140 A AC for signalling circuit conforming to IEC 60947-5-1 <br> 250 A DC for signalling circuit conforming to IEC 60947-5-1 <br> 800 A at 440 V for power circuit conforming to IEC 60947

Rated breaking capacity

800 A at 440 V for power circuit conforming to IEC 60947 Associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-1 <br> 80 A gG at <= 690 V coordination type 1 for power circuit <br> 80 A gG at <= 690 V coordination type 2 for power circuit

Average impedance

1.5 mOhm - Ith 60 A 50 Hz for power circuit Overvoltage category III <br> Pollution degree 3 <br> [Uimp] rated impulse withstand voltage 6 kV IEC 60947

Safety reliability level

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 <br> B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Mechanical durability

6 Mcycles Control circuit type AC 60 Hz <br> Coil technology Without built-in suppressor module Inrush power in VA 140 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)) <br> Hold-in power consumption in VA 13 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)) <br> Heat dissipation 4…5 W at 60 Hz

Auxiliary contact composition

1 NO + 1 NC

Auxiliary contacts type

Mechanically linked 1 NO + 1 NC IEC 60947-5-1 <br> Mirror contact 1 NC IEC 60947-4-1

Signalling circuit frequency

25...400 Hz <br> Minimum switching voltage 17 V for signalling circuit <br> Minimum switching current 5 mA for signalling circuit <br> Insulation resistance > 10 MOhm for signalling circuit

P degree of protection

IP20 front face IEC 60529 <br> Protective treatment THIEC 60068-2-30

Climatic withstand

IACS E10 exposure to damp heat <br> IEC 60947-1 Annex Q category D exposure to damp heat

Permissible ambient air temperature around the device

-40…140 °F (-40…60 °C) <br> 140…158 °F (60…70 °C) with derating

Operating altitude

0...3000 m

Fire resistance

1562 °F (850 °C) IEC 60695-2-1

Flame retardance

V1 UL 94



Information About LC1D40AG7

The LC1D40AG7 is an IEC contactor from the TeSys Deca series designed for seamless integration into control systems, particularly for creating motor starters across various applications. With 13 contactor ratings available, it supports inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This specific model is a 40A inductive 3-pole IEC contactor suitable for DIN rail or panel mounting.

Featuring both Horsepower and Kw motor ratings, it meets international standards, supporting 10HP at 200 to 208VAC, 10HP at 240VAC, 30HP at 480VAC, and 30HP at 600VAC in three-phase configurations, as well as 3HP at 115VAC and 5HP at 240VAC in single-phase configurations.

When coupled with a 480VAC up to 110A circuit breaker, this contactor can achieve a Short-Circuit Current Rating (SCCR) of up to 100kA. Similarly, when paired with up to a 600VAC 90A Class J or CC fuse, it can also reach an SCCR of up to 100kA.

Equipped with a 120 VAC 60 Hz coil, this contactor comes with one normally open and one normally closed auxiliary contact built-in as standard. The normally closed contact is mirror certified. Screw clamp terminals facilitate easy load and auxiliary connections.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

LC1D40AG7 is an IEC Contactor from the TeSys Deca series, designed for non-reversing applications. Engineered for seamless integration into control systems, TeSys D contactors serve as versatile components for creating motor starters across a wide range of applications.

This particular contactor features a 40A inductive 3 pole design, suitable for inductive motor applications. It offers compatibility with DIN rail mounting or direct panel mounting for flexible installation options. With 13 contactor ratings available, it supports inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps.



Technical Specifications

Part #

LC1D40AG7

Category

Contactors & Starters

Subcategory

Contactor

Range of product

TeSys Deca

Product or component type

Contactor

Device short name

LC1D

Poles description

3P

[Ue] rated operational voltage

Power circuit <= 690 V AC 25...400 Hz <br> Power circuit <= 300 V DC

[Ie] rated operational current

60 A (at <140 °F (60 °C)) at <= 440 V AC AC-1 for power circuit <br> 40 A (at <140 °F (60 °C)) at <= 440 V AC AC-3 for power circuit <br> 40 A (at <140 °F (60 °C)) at <= 440 V AC AC-3e for power circuit

[Uc] control circuit voltage

120 V AC 60 Hz Compatibility code LC1D

Pole contact composition

3 NO

Protective cover

With

[Ith] conventional free air thermal current

10 A (at 140 °F (60 °C)) for signalling circuit <br> 60 A (at 140 °F (60 °C)) for power circuit

Irms rated making capacity

140 A AC for signalling circuit conforming to IEC 60947-5-1 <br> 250 A DC for signalling circuit conforming to IEC 60947-5-1 <br> 800 A at 440 V for power circuit conforming to IEC 60947

Rated breaking capacity

800 A at 440 V for power circuit conforming to IEC 60947 Associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-1 <br> 80 A gG at <= 690 V coordination type 1 for power circuit <br> 80 A gG at <= 690 V coordination type 2 for power circuit

Average impedance

1.5 mOhm - Ith 60 A 50 Hz for power circuit Overvoltage category III <br> Pollution degree 3 <br> [Uimp] rated impulse withstand voltage 6 kV IEC 60947

Safety reliability level

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 <br> B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Mechanical durability

6 Mcycles Control circuit type AC 60 Hz <br> Coil technology Without built-in suppressor module Inrush power in VA 140 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)) <br> Hold-in power consumption in VA 13 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)) <br> Heat dissipation 4…5 W at 60 Hz

Auxiliary contact composition

1 NO + 1 NC

Auxiliary contacts type

Mechanically linked 1 NO + 1 NC IEC 60947-5-1 <br> Mirror contact 1 NC IEC 60947-4-1

Signalling circuit frequency

25...400 Hz <br> Minimum switching voltage 17 V for signalling circuit <br> Minimum switching current 5 mA for signalling circuit <br> Insulation resistance > 10 MOhm for signalling circuit

P degree of protection

IP20 front face IEC 60529 <br> Protective treatment THIEC 60068-2-30

Climatic withstand

IACS E10 exposure to damp heat <br> IEC 60947-1 Annex Q category D exposure to damp heat

Permissible ambient air temperature around the device

-40…140 °F (-40…60 °C) <br> 140…158 °F (60…70 °C) with derating

Operating altitude

0...3000 m

Fire resistance

1562 °F (850 °C) IEC 60695-2-1

Flame retardance

V1 UL 94



Information About LC1D40AG7

The LC1D40AG7 is an IEC contactor from the TeSys Deca series designed for seamless integration into control systems, particularly for creating motor starters across various applications. With 13 contactor ratings available, it supports inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This specific model is a 40A inductive 3-pole IEC contactor suitable for DIN rail or panel mounting.

Featuring both Horsepower and Kw motor ratings, it meets international standards, supporting 10HP at 200 to 208VAC, 10HP at 240VAC, 30HP at 480VAC, and 30HP at 600VAC in three-phase configurations, as well as 3HP at 115VAC and 5HP at 240VAC in single-phase configurations.

When coupled with a 480VAC up to 110A circuit breaker, this contactor can achieve a Short-Circuit Current Rating (SCCR) of up to 100kA. Similarly, when paired with up to a 600VAC 90A Class J or CC fuse, it can also reach an SCCR of up to 100kA.

Equipped with a 120 VAC 60 Hz coil, this contactor comes with one normally open and one normally closed auxiliary contact built-in as standard. The normally closed contact is mirror certified. Screw clamp terminals facilitate easy load and auxiliary connections.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
