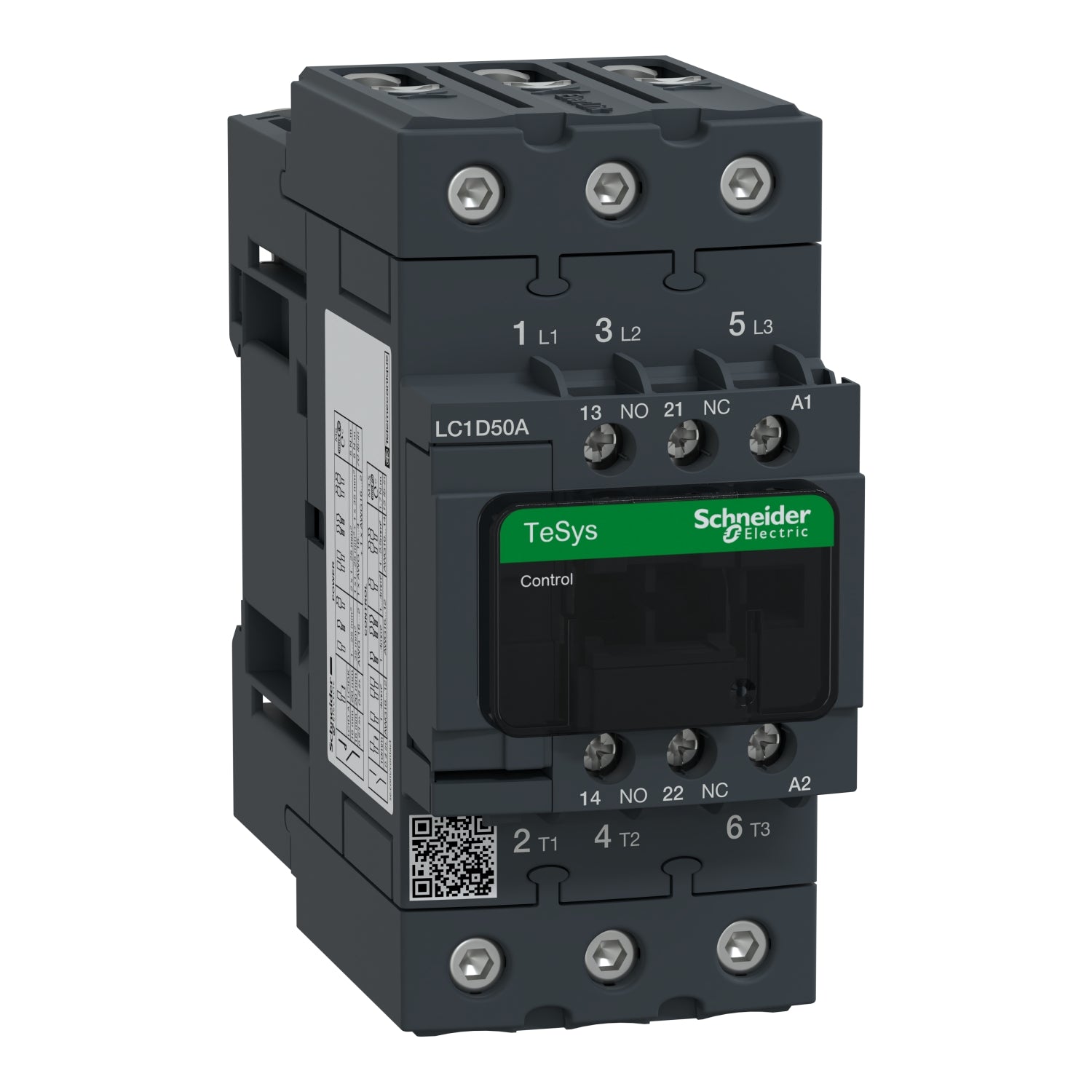

LC1D50AG7 | Schneider Electric IEC Contactor
- Regular price
- $139.00
- Sale price
- $139.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LC1D50AG7
Description
The LC1D50AG7 is an IEC contactor from the TeSys Deca series by Schneider Electric. It is a non-reversing contactor with a current rating of 50A and is designed for three-phase applications. This contactor supports 40 HP at 480VAC and has a short-circuit current rating (SCCR) of up to 100kA when used with appropriate circuit breakers or fuses.
The LC1D50AG7 features three normally open (3 NO) contacts and operates with a 120VAC, 50/60Hz coil. It is suitable for a variety of motor applications, providing horsepower ratings of 15 HP at 200-208VAC, 15 HP at 240VAC, 40 HP at 480VAC, and 40 HP at 600VAC for three-phase motors, and 3 HP at 115VAC and 7.5 HP at 240VAC for single-phase motors.
Technical Specifications
|
Part # |
LC1D50AG7 |
|
Category |
Contactors & Starters |
|
Subcategory |
Contactor |
|
Range of Product |
TeSys Deca |
|
Product or Component Type |
Contactor |
|
Device Short Name |
LC1D |
|
Contactor Application |
Resistive load, Motor control |
|
Poles Description |
3P |
|
[Uc] Control Circuit Voltage |
120 V AC 60 Hz |
|
Compatibility Code |
LC1D |
|
Pole Contact Composition |
3 NO |
|
Protective Cover |
With |
|
[Ith] Conventional Free Air Thermal Current |
10 A (at 140 °F (60 °C)) for signaling circuit, 80 A (at 140 °F (60 °C)) for power circuit |
|
Rated Breaking Capacity |
900 A at 440 V for power circuit conforming to IEC 60947 |
|
Average Impedance |
1.5 mOhm - Ith 80 A 50 Hz for power circuit |
|
Overvoltage Category |
III |
|
Pollution Degree |
3 |
|
[Uimp] Rated Impulse Withstand Voltage |
6 kV IEC 60947 |
|
Control Circuit Type |
AC 60 Hz |
|
Coil Technology |
Without built-in suppressor module |
|
Inrush Power in VA |
140 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)) |
|
Hold-in Power Consumption in VA |
13 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)) |
|
Heat Dissipation |
4…5 W at 60 Hz |
|
Operating Time |
4...19 ms opening, 12...26 ms closing |
|
Maximum Operating Rate |
3600 cyc/h 140 °F (60 °C) |
|
Auxiliary Contact Composition |
1 NO + 1 NC |
|
Auxiliary Contacts Type |
Mechanically linked 1 NO + 1 NC IEC 60947-5-1, Mirror contact 1 NC IEC 60947-4-1 |
|
Signalling Circuit Frequency |
25...400 Hz |
|
Minimum Switching Voltage |
17 V for signalling circuit |
|
Minimum Switching Current |
5 mA for signalling circuit |
|
Insulation Resistance |
> 10 MOhm for signalling circuit |
|
Non-overlap Time |
1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact |
|
Mounting Support |
Rail, Plate |
|
IP Degree of Protection |
IP20 front face IEC 60529 |
|
Protective Treatment |
THIEC 60068-2-30 |
|
Climatic Withstand |
IACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat |
|
Permissible Ambient Air Temperature Around the Device |
-40…140 °F (-40…60 °C), 140…158 °F (60…70 °C) with derating |
|
Operating Altitude |
0...9842.52 ft (0...3000 m) |
|
Fire Resistance |
1562 °F (850 °C) IEC 60695-2-1 |
|
Flame Retardance |
V1 conforming to UL 94 |
|
Height |
4.80 in (122 mm) |
|
Width |
2.17 in (55 mm) |
|
Depth |
4.72 in (120 mm) |
|
Net Weight |
1.88 lb(US) (0.855 kg) |
Information About LC1D50AG7
The LC1D50AG7 is an IEC contactor from the TeSys Deca range, designed for nonreversing applications. It is a 50A inductive, 3-pole contactor suitable for various motor control and resistive load applications. This contactor is rated for up to 40 horsepower at 480VAC and can handle up to 100kA short-circuit current rating (SCCR) with appropriate protection devices.
TeSys D contactors are engineered for seamless integration into control systems and can be used to create motor starters for a wide range of applications. The LC1D50AG7 is compatible with DIN rail mounting or direct panel mounting, enhancing its versatility. It supports international motor ratings, with capabilities of 15 horsepower at 200 to 208VAC, 15 horsepower at 240VAC, 40 horsepower at 480VAC, and 40 horsepower at 600VAC for three-phase motors. For single-phase motors, it is rated at 3 horsepower at 115VAC and 7.5 horsepower at 240VAC.
