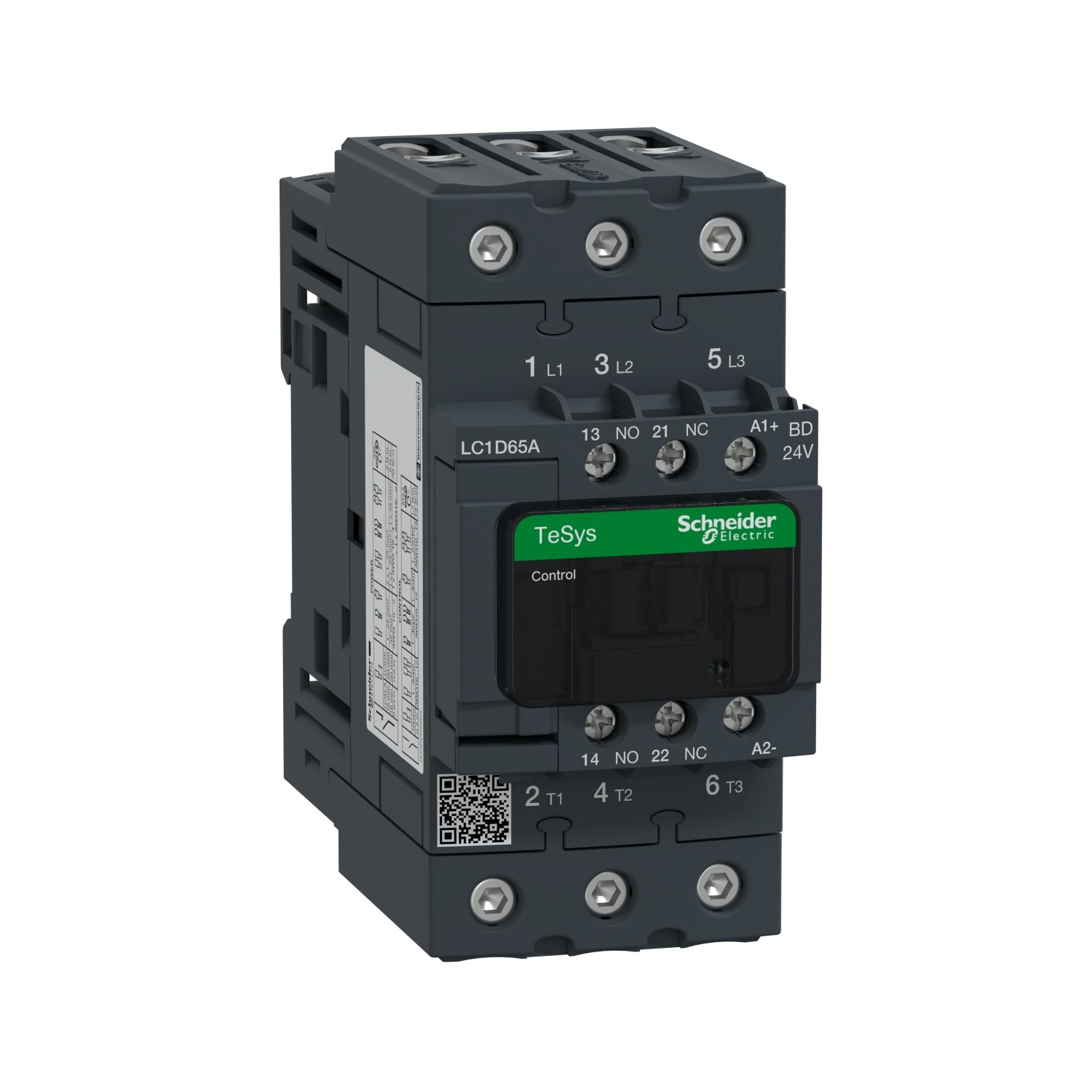

Part #: LC1D65ABD Manufactured by: Schneider Electric
Regular price
$172.00
Sale price
$172.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The LC1D65ABD is an IEC contactor from the TeSys Deca series, designed for nonreversing applications. With a current ratin...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: LC1D65ABD
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: LC1D65ABD

Description / Specifications

Description

The LC1D65ABD is an IEC contactor from the TeSys Deca series, designed for nonreversing applications. It has a current rating of 65A and is capable of handling motors up to 40HP at 480VAC. With a short-circuit current rating (SCCR) of up to 100kA, it ensures robust performance in demanding environments. This three-phase contactor features 3 normally open (NO) poles and operates with a 24VDC coil in an open-style configuration.

TeSys D contactors are versatile components suitable for integration into various control systems. They are commonly used to create motor starters across a wide range of applications. Available in 13 contactor ratings, they support inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps.

Technical Specifications



Part #

LC1D65ABD

Manufacturer

SCHNEIDER ELECTRIC

Brand

TELEMECANIQUE

Category

Contactors & Starters

Subcategory

Contactor

Product or component type

Contactor

Device short name

LC1D

Contactor application

Motor control

Resistive load [Uc] control circuit voltage

24 V DC Compatibility code

Pole contact composition

3 NO

Protective cover

With

[Ith] conventional free air thermal current

10 A (at 60 °C) for signalling circuit 80 A (at 60 °C) for power circuit

Rated breaking capacity

1000 A at 440 V for power circuit conforming to IEC 60947

Overvoltage category

III

Pollution degree

3

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947

Control circuit type

DC standard

Coil technology

Built-in bidirectional peak limiting diode suppressor

Control circuit voltage limits

0.1...0.3 Uc (-40…70 °C):drop-out DC 0.75...1.25 Uc (-40…60 °C):operational DC 1...1.25 Uc (60…70 °C):operational DC

Inrush power in W

19 W (at 20 °C)

Hold-in power consumption in W

7.4 W at 20 °C

Operating time

50 ±15 % ms closing 16...24 ms opening

Time constant

34 ms

Maximum operating rate

3600 cyc/h 60 °C

Auxiliary contact composition

1 NO + 1 NC

Auxiliary contacts type

Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1

Signalling circuit frequency

25...400 Hz

Minimum switching voltage

17 V for signalling circuit

Minimum switching current

5 mA for signalling circuit

Insulation resistance

> 10 MOhm for signalling circuit

IP degree of protection

IP20 front face conforming to IEC 60529

Protective treatment

TH conforming to IEC 60068-2-30 Climatic withstand Conforming to IACS E10 exposure to damp heat conforming to IEC 60947-1 Annex Q category D exposure to damp heat Permissible ambient air temperature around the device -40…60 °C 60…70 °C with derating

Operating altitude

0...3000 m

Fire resistance

850 °C conforming to IEC 60695-2-1 Flame retardance V1 conforming to UL 94



Information About LC1D65ABD

The LC1D65ABD is an IEC contactor from the TeSys Deca series, designed for nonreversing applications. With a current rating of 65A, it supports motors up to 40HP at 480VAC and offers a short-circuit current rating (SCCR) of up to 100kA. Featuring 3 normally open (NO) poles and a 24VDC coil, it is suitable for various industrial applications.

TeSys D contactors are specifically engineered for seamless integration into control systems, serving as essential components in motor starters across a wide range of applications. Available in 13 contactor ratings, they support inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps.

This 65A inductive 3-pole IEC contactor can be mounted on DIN rail or directly to a panel, offering flexibility in installation. It is rated for motor applications ranging from 20HP at 200 to 208VAC to 50HP at 600VAC in three-phase systems. Additionally, it supports single-phase applications with ratings of 5HP at 115VAC and 10HP at 240VAC.

When paired with a 480VAC up to 110A circuit breaker or a 600VAC 125A Class J or CC fuse, this contactor can achieve a SCCR of up to 100kA, ensuring reliable performance and safety in electrical circuits. Equipped with a 24VDC coil with a transient suppressor module, it features one normally open and one normally closed auxiliary contact, both mirror-certified for enhanced reliability.


Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
