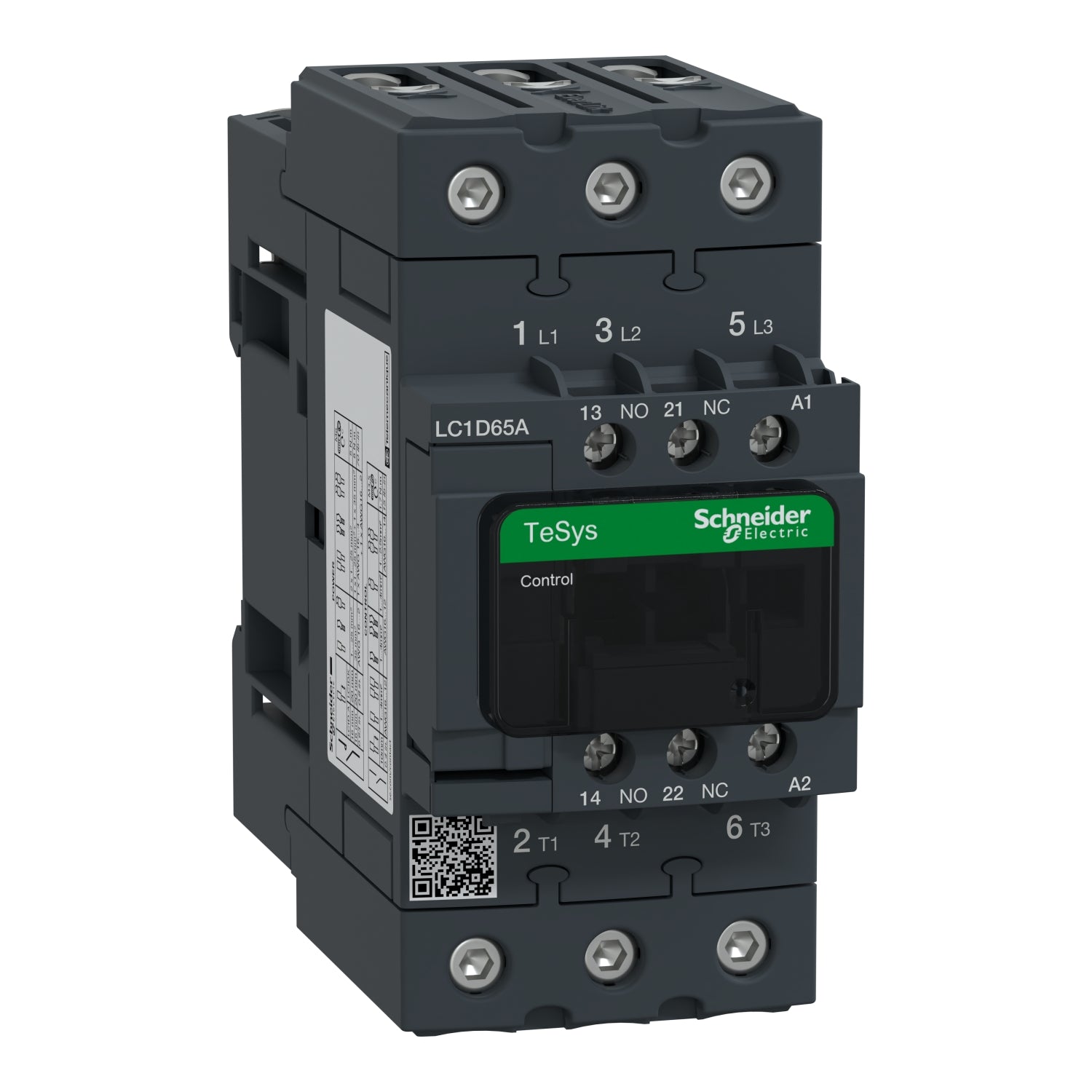

LC1D65AF7 | Schneider Electric TeSys D 3-Pole Contactor 65 A, 110 VAC Coil
- Regular price
- $132.00
- Sale price
- $132.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LC1D65AF7
Description
The Schneider Electric LC1D65AF7 is a TeSys D-series IEC contactor designed for direct-on-line motor control and high-duty industrial switching. With a 65 A inductive current rating and 3 normally open main poles, it delivers robust performance across a wide range of AC motor applications. Its EverLink screw terminals, 110 VAC coil, and integrated auxiliary contacts provide reliable connection integrity and flexible control integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Contactors & Starters |
| Part Number | LC1D65AF7 |
| Subcategory | Contactor |
| Series | TeSys D |
| Type | Direct On-Line Standard |
| Coil Voltage | 110 VAC / 690 VAC / 300 VDC |
| Coil Power Rating | 140/160 VA Inrush, 13/15 VA Hold-In |
| Contact Configuration | 3NO (Main Poles) |
| Auxiliary Contacts | 1NO-1NC |
| Contact Type | Non-Reversing |
| Maximum Load Current | 65–80 A at 690 VAC |
| Contact Ratings | 10/60 A at 690 VAC; 60–80 A at 690 VAC |
| Power Factor | 0.75 Inrush, 0.3 Hold-In |
| Wattage | 6.3/9.6 W |
| Number of Poles | 3 |
| Mounting Type | Rail / Surface |
| Connection Type | Screw Clamp (EverLink) |
| Enclosure Type | IP2X |
| Frequency Rating | 50/60 Hz |
| Operating Cycles | 3600 cycles/hr; 6,000,000 total mechanical life |
| Operating Temperature | −5 to 60 °C (operation), −40 to 70 °C (storage) |
| Dimensions | 55 mm W × 120 mm D × 122 mm H |
| Color | Dark Grey |
Information About LC1D65AF7
The LC1D65AF7 is a Schneider Electric TeSys D contactor engineered for reliable switching of motors and resistive loads in industrial control systems. With a 65 A inductive rating and robust EverLink screw terminals, it maintains consistent tightening pressure for dependable electrical connections. Supplied with a 110 VAC coil and integrated 1NO-1NC auxiliary contacts, the unit supports versatile control logic while maintaining IEC, UL, CSA, CCC, EAC, and Marine certifications for global use. Designed for DIN-rail or panel mounting, the contactor supports high mechanical endurance and fits into compact control panels thanks to its 55 mm width and IP2X protection.
Key Features:
- 3-Pole Non-Reversing Contactor: Supports direct-on-line motor control with 3NO main contacts.
- High Load Capacity: Rated for 65 A inductive and up to 80 A at 690 VAC for demanding motor circuits.
- EverLink Screw Clamp Terminals: Maintain constant tightening force for long-term connection reliability.
- Integrated Auxiliary Contacts: Includes 1NO-1NC for signaling and control flexibility.
- Universal Coil Compatibility: Accepts 110 VAC 50/60 Hz and 300 VDC coil variants for diverse system requirements.
- High Endurance: Mechanical life of 6 million operations and 3600 cycles per hour capability.
- DIN-Rail or Panel Mounting: Offers flexible installation in new or retrofit control systems.
- IEC & UL Certified: Complies with global electrical standards and RoHS/REACH environmental requirements.
The LC1D65AF7 delivers the reliability and precision required for rugged motor control applications in industrial automation and power distribution systems.
