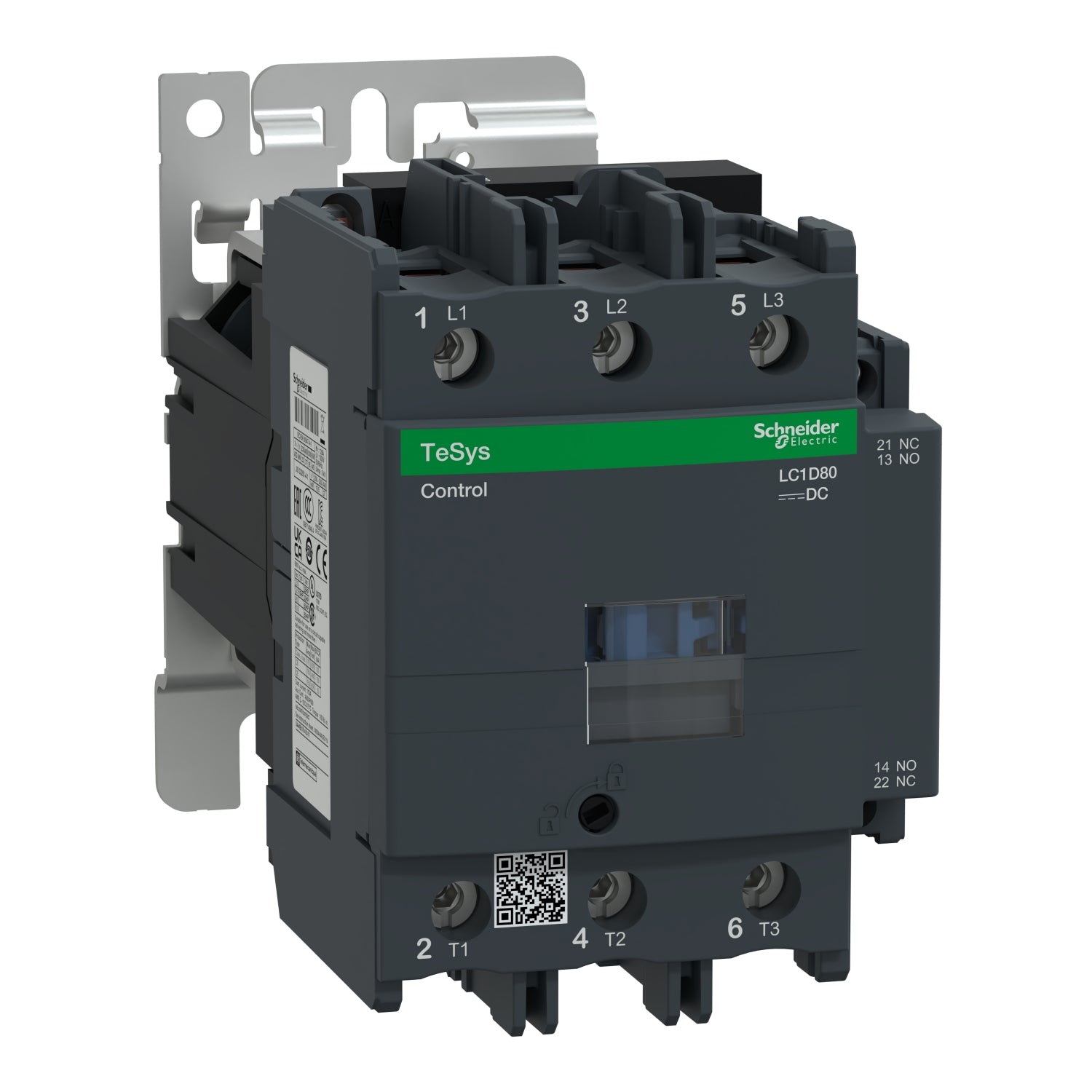

LC1D80BD | Schneider Electric Contactor LC1D
- Regular price
- $267.00
- Sale price
- $267.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LC1D80BD
Description
The Schneider Electric LC1D80BD Contactor belongs to the TeSys D series and is engineered for seamless integration into control systems, particularly for motor control applications. This contactor offers versatility, enabling the creation of motor starters suitable for various applications. Available in 13 contactor ratings, it supports inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps.
Designed as an 80A inductive 3-pole IEC contactor, it can be conveniently mounted on DIN rail or directly onto a panel. With both Horsepower and Kw motor ratings, it ensures international acceptance. The contactor is rated for different motor capacities across three-phase and single-phase configurations.
Technical Specifications
|
Part # |
LC1D80BD |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
TELEMECANIQUE |
|
Category |
Contactors & Starters |
|
Subcategory |
Contactor Range |
|
Range of product |
TeSys Deca |
|
Product or component type |
Contactor |
|
Device short name |
LC1D |
|
Contactor application |
Motor control |
|
Poles description |
3P |
|
[Ue] rated operational voltage |
Power circuit ≤ 300 V DC 25...400 Hz |
|
[Uc] control circuit voltage |
24 V DC |
|
Compatibility code |
LC1D |
|
Pole contact composition |
3 NO |
|
Protective cover |
With |
|
[Ith] conventional free air thermal current |
10 A (at 140 °F (60 °C)) for signalling circuit |
|
Rated breaking capacity |
1100 A at 440 V for power circuit conforming to IEC 60947 |
|
Overvoltage category |
III |
|
Pollution degree |
3 |
|
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947 |
|
Control circuit type |
DC standard |
|
Coil technology |
Without built-in suppressor module |
|
Inrush power in W |
22 W (68 °F (20 °C)) |
|
Hold-in power consumption in W |
22 W (68 °F (20 °C)) |
|
Operating time |
95...130 ms closing |
|
Auxiliary contact composition |
1 NO + 1 NC |
|
Auxiliary contacts type |
Mechanically linked 1 NO + 1 NC IEC 60947-5-1, Mirror contact 1 NC IEC 60947-4-1 |
|
Signalling circuit frequency |
25...400 Hz |
|
Minimum switching voltage |
17 V for signalling circuit |
|
Minimum switching current |
5 mA for signalling circuit |
|
Insulation resistance |
> 10 MOhm for signalling circuit |
|
IP degree of protection |
IP20 front face IEC 60529 |
|
Protective treatment |
THIEC 60068-2-30 |
|
Climatic withstand |
IACS E10 exposure to damp heat |
|
Permissible ambient air temperature around the device |
-40…140 °F (-40…60 °C) |
|
Operating altitude |
0...3000 m |
|
Fire resistance |
1562 °F (850 °C) IEC 60695-2-1 |
Information About LC1D80BD
The Schneider Electric LC1D80BD Contactor, part of the TeSys Deca Series, is specifically designed for motor control applications. TeSys D contactors are engineered for seamless integration into control systems and can serve as motor starters across various applications. With 13 contactor ratings available, they support inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps.
This 80A inductive 3-pole IEC contactor offers versatile mounting options, including DIN rail and direct panel mounting. It features both Horsepower and kW motor ratings for international compliance. The contactor is rated for 25HP at 200 to 208VAC, 30HP at 240VAC, 60HP at 480VAC, and 60HP at 600VAC in three-phase systems. In single-phase setups, it supports 7.5HP at 115VAC and 15HP at 240VAC.
When paired with a 480VAC up to 150A circuit breaker, this contactor can achieve a Short Circuit Current Rating (SCCR) of up to 100kA. Similarly, when used with a 600VAC 175A Class J or CC fuse, it maintains the same SCCR rating.
Equipped with a 24VDC coil featuring a transient suppressor module, the contactor ensures reliable operation. Standard features include one normally open and one normally closed auxiliary contact, with the NC contact being mirror certified. Screw clamp terminals facilitate secure load and auxiliary connections.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
