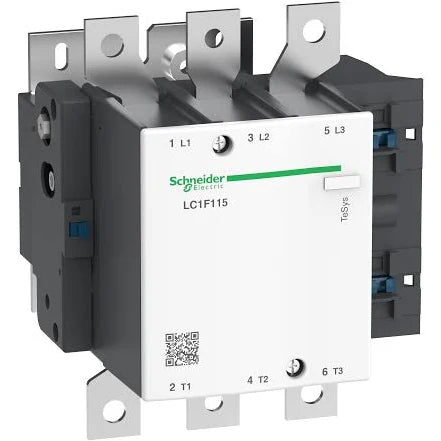

LC1F115 | Schneider Electric Contactor body,TeSys F,3P(3NO), AC-3, <=440V 115A, without coil
- Regular price
- $474.00
- Sale price
- $474.00
- Regular price
-
Do you need more quantity?
Product Description P/N: LC1F115
Description
LC1F115 Schneider Electric 115 AMP, 3 pole contactor with an AC rated coil. Rated 75 H.P. @ 460 volts 3-Phase and has screw terminals.
Technical Specifications
Brand | Schneider Electric |
Part Number | LC1F115 |
Category | Contactors & Starters |
Subcategory | Contactor/Starter Coil |
Auxiliary Contact | 1 NO |
Contact Current Rating | 115 A |
Depth | 0.118 in |
Dimensions | 0.00 in W X 6.38 in L X 0.12 in D |
Enclosure Type | Open |
Horsepower Rating | 100 HP |
Length | 6.377 in |
Maximum Operating Temperature | 55 °C |
Minimum Operating Temperature | -5 °C |
Mounting Type | DIN Rail Mount ; Panel Mount |
Number of Poles | 3 |
Power Rating | 80 kW W |
Primary Type | Contactor |
Series | TeSys F Series |
Standards | EN 60947-4-1 ; IEC 609474-1 ; IEC 60947-4-1 ; JEM 1038 |
Temperature Operating Range | -5 to 55 C |
Terminal Type | Box Clamp |
Termination | Screw |
Type | Contactor |
Voltage Rating | 600 V |
Information About LC1F115
The Schneider Electric LC1F115 contactors and overload relays offer proven performance for resistive loads or large motor starting applications such as fans, crushers, pumps, compressors and overhead cranes. They offer high reliability with long mechanical and electrical life and the most complete line of accessories in the industry.
TeSys F contactor, 3 poles (3NO), 115A/690V AC-3, for motor applications up to 55kW@400V. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Features:
2-Pole (400 A, 500 A & 630 A), 3 pole (115 – 2600 A) & 4 pole (115 A – 780 A) contactors
Pre-assembled star-delta motor starters (185-375 kW/440V AC), 3 pole AC-3 reversing contactors (115 A – 265 A) & 4 pole AC-1 change-over contactors (200-350 A)
Separate components and kits available for customer assembly of motor starters, reversing and change-over contactor solutions
Wide range of AC (40-400 Hz) and DC operating coils
Terminal connections suitable for connecting bus bars & cables
Wide range of common accessories to improve flexibility, functionality & safety
Complemented by Class10/20 LR9F type electronic thermal over-load relays and TeSys GV7-R circuit breaker for motor starter solutions
Suitable for switching of motors, lighting, heating, capacitors, auto-transformer starting, rotor circuits of slip-ring motors, etc.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
