LC1F185 | Schneider Electric Contactor
- Regular price
- $459.00
- Sale price
- $459.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LC1F185
Description

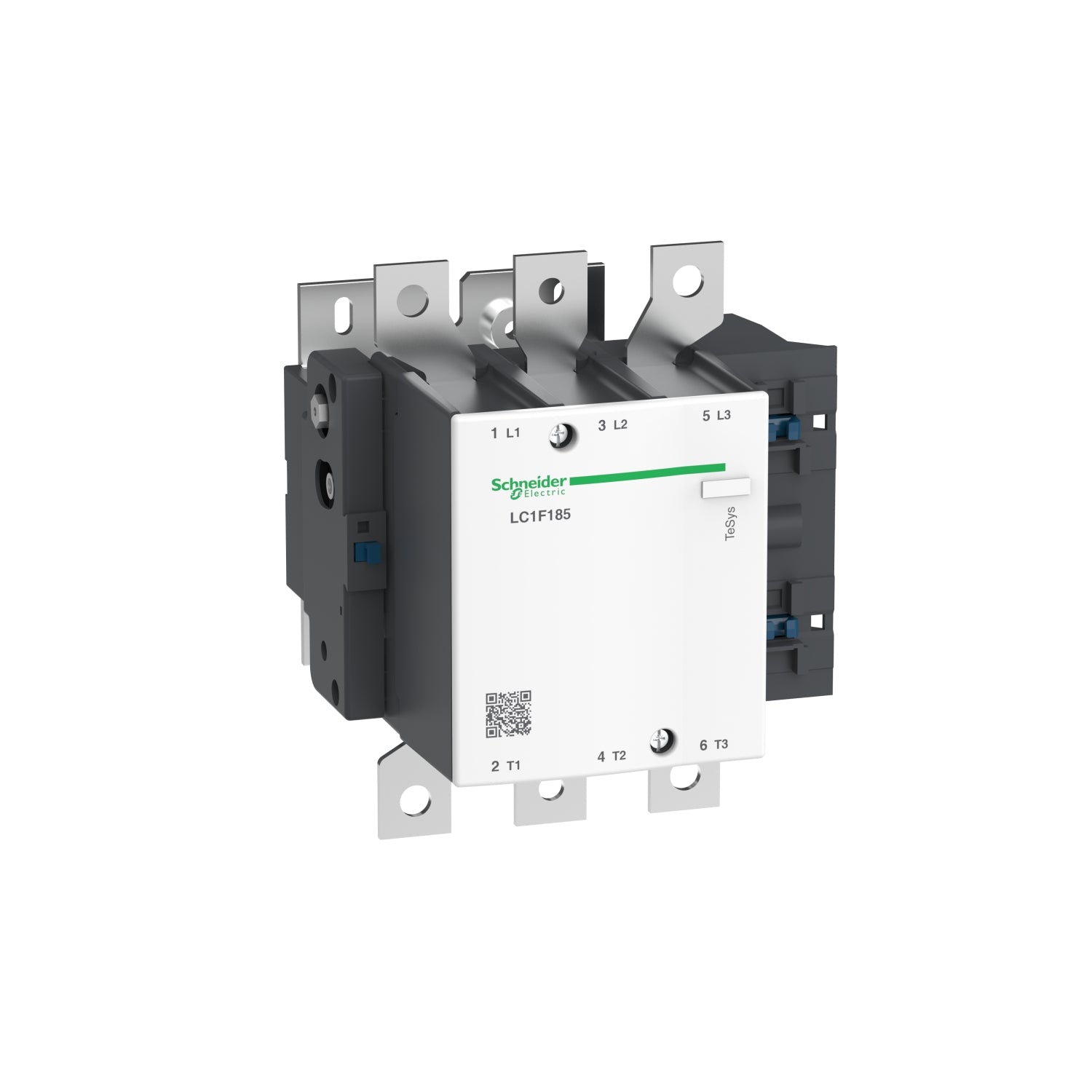

The Schneider Electric LC1F185 Contactor is designed for motor applications and belongs to the TeSys F Series. It features 3 poles (3NO) and is rated at 185A/690V AC-3, suitable for motors up to 90kW@400V. This contactor is supplied without a coil, allowing for separate selection and installation of the coil as needed. It is equipped with bolt terminals suitable for bars or cables with lugs. With a capability for high operating rates of up to 2400 cycles/hour and suitable for environments up to 55°C, it offers high reliability and durability. Installation and maintenance are made convenient with a drawer for inserting the selected coil and a wide range of add-on blocks and accessories available (sold separately). Additionally, it is certified to multiple standards including IEC, UL, CSA, CCC, EAC, and Marine standards, and is compliant with Green Premium standards (RoHS/REACh).
Technical Specifications
|
Part # |
LC1F185 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
TELEMECANIQUE |
|
Category |
Contactors & Starters |
|
Subcategory |
Contactor |
|
Range |
TeSys |
|
Product name |
TeSys F |
|
Product or component type |
Contactor |
|
Device short name |
LC1F |
|
Poles description |
3P |
|
Power pole contact composition |
3 NO |
|
[Ue] rated operational voltage |
<= 690 V AC 50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV |
|
Overvoltage category |
III |
|
[Ith] conventional free air thermal current |
275 A (at 40 °C) |
|
Irms rated making capacity |
1850 A conforming to IEC 60947-4-1 |
|
Rated breaking capacity |
1480 A conforming to IEC 60947-4-1 |
|
Average impedance |
0.33 mOhm - Ith 275 A 50 Hz |
|
Protective treatment |
TH |
|
Ambient air temperature for operation |
-5…55 °C |
|
Ambient air temperature for storage |
-60…80 °C |
|
Permissible ambient air temperature around the device |
-40…70 °C |
|
Height |
174 mm |
|
Width |
168.5 mm |
|
Depth |
181 mm |
|
Net weight |
5.45 kg |
Information About LC1F185
The Schneider Electric LC1F185 Contactor, part of the TeSys F Series, is designed for robust motor applications up to 90kW at 400V. With a rated operational voltage of 690V AC and a current rating of 185A in AC-3 applications, this contactor ensures efficient and reliable motor control.
Featuring three poles (3NO), the LC1F185 contactor is suitable for various industrial and commercial settings. It is equipped with bolt terminals that accommodate bars or cables with lugs, facilitating easy installation and maintenance.
One notable feature of the LC1F185 contactor is its coil-free design, allowing users to select and install the coil separately as per their requirements. This flexibility enhances customization and adaptability to specific application needs.
With a maximum operating rate of 2400 cycles per hour and a wide temperature range of up to 55°C, this contactor delivers high performance and durability even in demanding environments.
Installation and maintenance are further simplified by the inclusion of a drawer for easy insertion of the selected coil. Additionally, users have access to a comprehensive range of add-on blocks and accessories, available separately, to enhance functionality and customization.
The LC1F185 contactor complies with multiple international standards, including IEC, UL, CSA, CCC, EAC, and Marine certifications, ensuring compatibility and adherence to industry regulations. Moreover, it is Green Premium compliant, demonstrating Schneider Electric's commitment to environmental sustainability through RoHS and REACh compliance.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
