LC1F330 | Schneider Electric Contactor
- Regular price
- $1,079.00
- Sale price
- $1,079.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LC1F330
Description

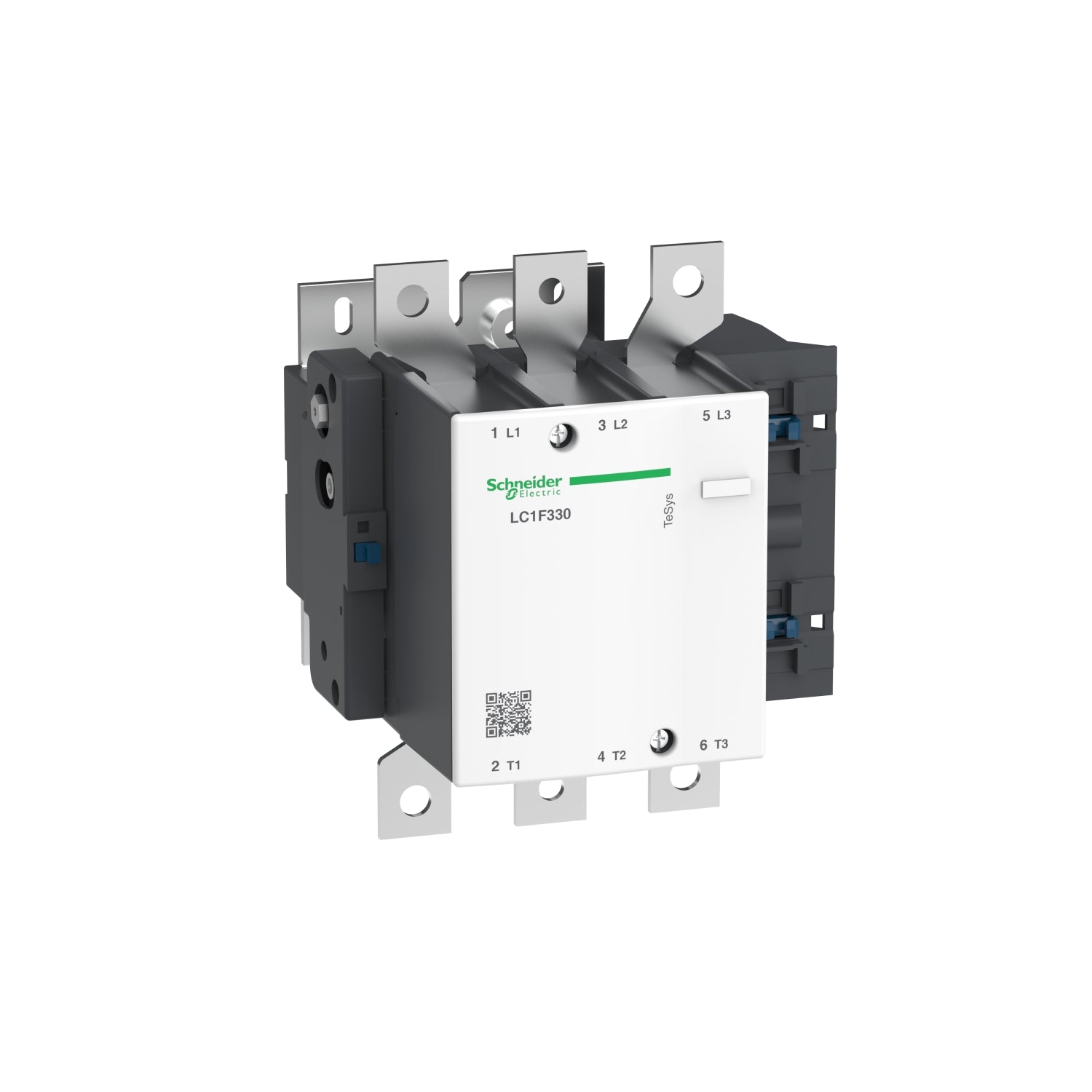

The Schneider Electric LC1F330 Contactor, part of the TeSys F series, is a 3-pole contactor designed for motor control applications. It features 3 normally open (3NO) poles, capable of handling currents up to 330A at 1000V AC-3, suitable for motors with a power rating of up to 160kW at 400V. This contactor is supplied without a coil, allowing for later selection and installation, with bolt terminals provided for connection to bars or cables with lugs.
With a robust design capable of sustaining high operating rates of up to 2400 cycles per hour and operating environments up to 55°C, it ensures high reliability and durability in industrial settings. Installation and maintenance are facilitated by a drawer for insertion of the selected coil, along with a wide range of add-on blocks and accessories available for separate order.
Technical Specifications
|
Part # |
LC1F330 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
TELEMECANIQUE |
|
Category |
Contactors & Starters |
|
Subcategory |
Contactor Range |
|
Product name |
TeSys F |
|
Product or component type |
Contactor |
|
Device short name |
LC1F |
|
Poles description |
3P |
|
Power pole contact composition |
3 NO |
|
[Ue] rated operational voltage |
<= 1000 V AC 50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV |
|
Overvoltage category |
III |
|
[Ith] conventional free air thermal current |
400 A (at 40 °C) |
|
Irms rated making capacity |
3300 A AC conforming to IEC 60947-4-1 |
|
Rated breaking capacity |
2640 A conforming to IEC 60947-4-1 |
|
Average impedance |
0.28 mOhm - Ith 400 A 50 Hz |
|
[Ui] rated insulation voltage |
1000 V conforming to IEC 60947-4-1 |
|
Power dissipation per pole |
44 W AC-1 |
|
Heat dissipation |
8 W |
|
Maximum operating rate |
2400 cyc/h 55 °C |
|
Compatibility code |
LC1F |
|
Protective treatment |
TH |
|
Ambient air temperature for operation |
-5…55 °C |
|
Ambient air temperature for storage |
-60…80 °C |
|
Permissible ambient air temperature around device |
-40…70 °C |
|
Operating altitude |
3000 m without derating height |
|
Width |
213 mm |
|
Depth |
219 mm |
|
Net weight |
9.5 kg |
Information About LC1F330
The Schneider Electric LC1F330 Contactor, part of the TeSys F series, is a motor control device designed for industrial applications. It features 3 poles (3NO) and is capable of handling currents up to 330A at 1000V AC-3, making it suitable for motor applications with power ratings of up to 160kW at 400V. This contactor does not include a coil, allowing for separate selection and installation, with bolt terminals provided for connection to bars or cables with lugs.
Operating at high rates of up to 2400 cycles per hour and in environments up to 55°C, the LC1F330 contactor ensures reliability and durability in demanding industrial settings. Its design facilitates easy installation and maintenance, featuring a drawer for insertion of the selected coil and offering a wide range of add-on blocks and accessories for customization (sold separately).
Certified to multiple standards including IEC, UL, CSA, CCC, EAC, and Marine, and compliant with Green Premium regulations (RoHS/REACh), the LC1F330 contactor meets rigorous quality and environmental requirements, ensuring compatibility and adherence to industry standards.
