LC1F400 | Schneider Electric Contactor 600VAC, 400A IEC +Options TeSys F Series
- Regular price
- $359.00
- Sale price
- $359.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

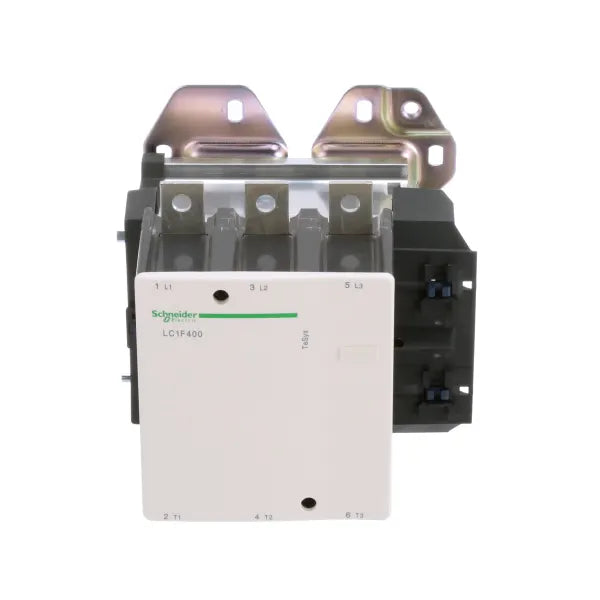

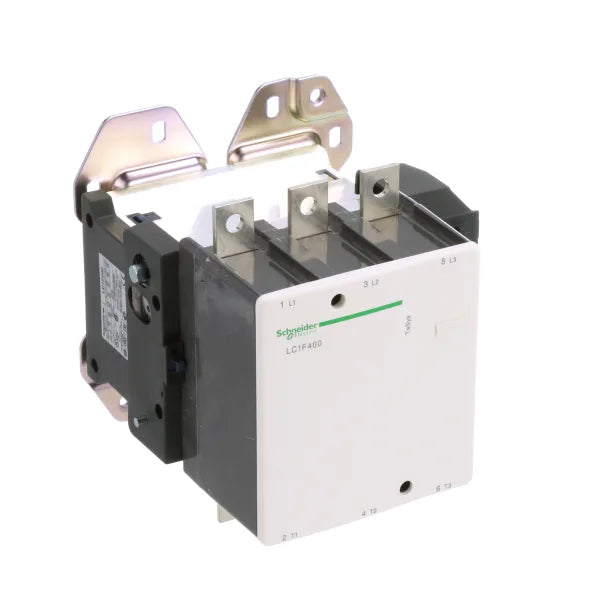

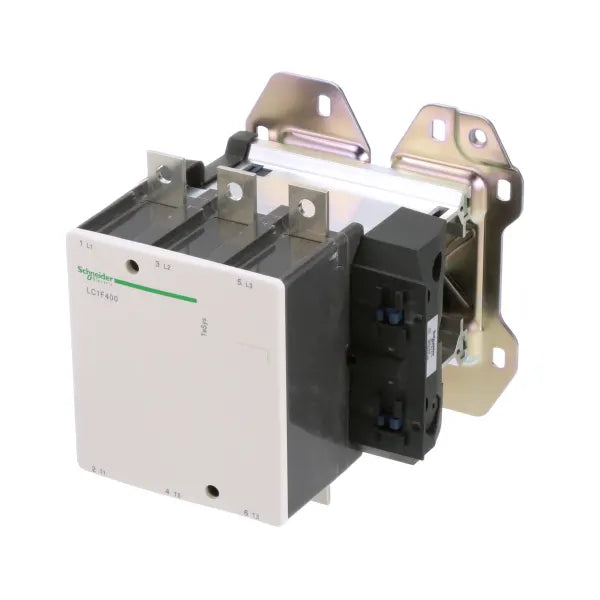

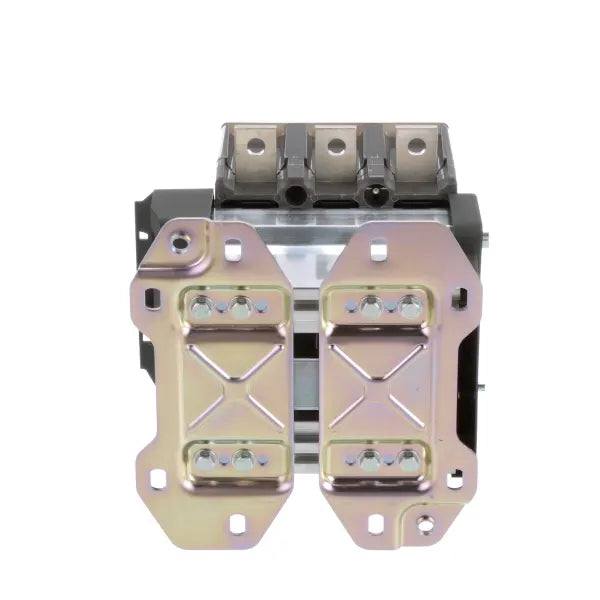

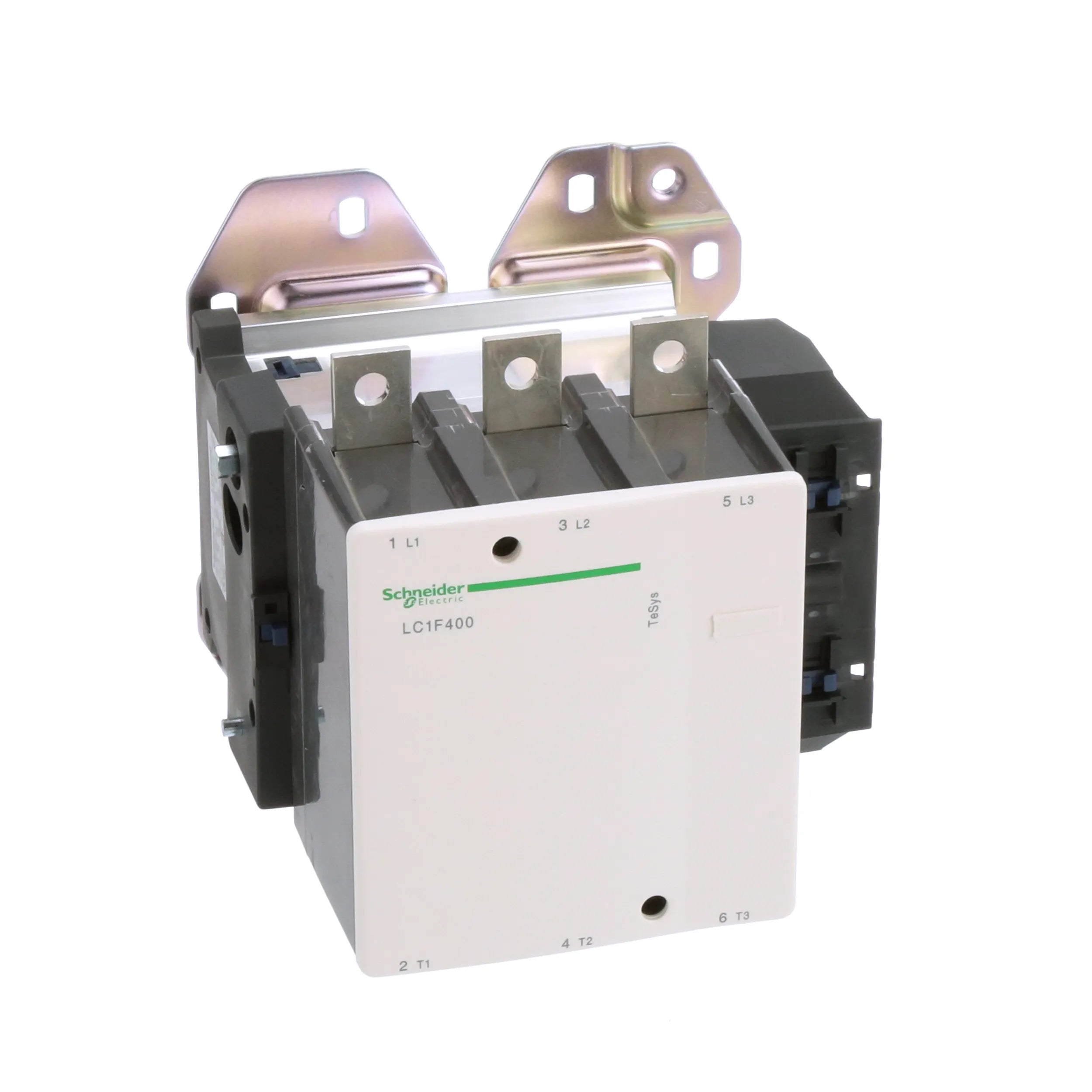

Product Description P/N: LC1F400
Description
TeSys F contactor, 3 poles (3NO), 400A/1000V AC-3, for motor applications up to 200kW@400V. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical Specifications
| Brand | Schneider Electric |
| Part Number | LC1F400 |
| Category | Contactors & Starters |
| Subcategory | Contactor |
| Contact Current Rating | 400 A |
| Control Voltage | 600 V |
| Dimensions | 0.00 in W X 8.11 in L X 0.12 in D |
| Enclosure Type | Open |
| Horsepower Rating | 300 hp |
| Maximum Operating Temperature | 50 °C |
| Minimum Operating Temperature | -25 °C |
| Mounting Type | DIN Rail Mount ; Panel Mount |
| Number of Poles | 3 |
| Power Rating | 280 kW W |
| Primary Type | Contactor |
| Series | TeSys F Series |
| Standards | EN 60947-4-1 ; IEC 609474-1 ; IEC 60947-4-1 ; JEM 1038 |
| Terminal Type | Box Clamp |
| Voltage Rating | 1000 V ; 460 V |
Information About LC1F400
Schneider Electric TeSys F Series — 3-Pole Contactors for Motor Control up to 1000 A and Power Switching up to 2600 A:
TeSys F is a range of high current contactors from 115 A to 1000 A designed for AC-3 applications and from 200 A to 2600 A for AC-1 applications.
Features:
2-Pole (400 A, 500 A & 630 A), 3 pole (115 – 2600 A) & 4 pole (115 A – 780 A) contactors
Pre-assembled star-delta motor starters (185-375 kW/440V AC), 3 pole AC-3 reversing contactors (115 A – 265 A) & 4 pole AC-1 change-over contactors (200-350 A)
Separate components and kits available for customer assembly of motor starters, reversing and change-over contactor solutions
Wide range of AC (40-400 Hz) and DC operating coils
Terminal connections suitable for connecting bus bars & cables
Wide range of common accessories to improve flexibility, functionality & safety
Complemented by Class10/20 LR9F type electronic thermal over-load relays and TeSys GV7-R circuit breaker for motor starter solutions
Suitable for switching of motors, lighting, heating, capacitors, auto-transformer starting, rotor circuits of slip-ring motors, etc.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
