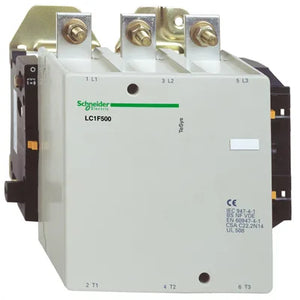

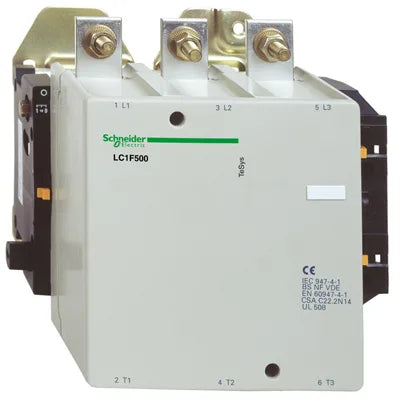

LC1F500 | Schneider Electric Contactor 600VAC, 500A IEC +Options TeSys F Series
- Regular price
- $809.00
- Sale price
- $809.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LC1F500
Description
High-power magnetic contactor - Schneider Electric / Telemecanique (TeSys Control F) - 3-poles (3P; 3NO) - 500A (AC-3) rated current - Ring-lugs/bar connections - 250kW (380-400Vac; AC-3) rated power - Surface mounting - without coil - Direct On Line (DOL) / FVNR (Full-Voltage Non-Rv.) - equivalent to LC1-F500
Technical Specifications
| Brand | Schneider Electric |
| Part Number | LC1F500 |
| Category | Contactors & Starters |
| Subcategory | Contactor |
| Contact Current Rating | 500 A |
| Control Voltage | 460 V |
| Mounting Type | Panel Mount |
| Number of Poles | 3 |
| Power Rating | 335 kW W |
| Series | TeSys F Series |
| Standards | EN 60947-4-1 ; IEC 609474-1 ; IEC 60947-4-1 ; JEM 1038 |
| Type | IEC Contactor |
| Storage Temperature | -60-80 degrees C |
Information About LC1F500
TeSys F contactor, 3 poles (3NO), 500A/1000V AC-3, for motor applications up to 250kW@400V. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Schneider Electric TeSys F Series — 3-Pole Contactors for Motor Control up to 1000 A and Power Switching up to 2600 A:
TeSys F is a range of high current contactors from 115 A to 1000 A designed for AC-3 applications and from 200 A to 2600 A for AC-1 applications.
Features:
2-Pole (400 A, 500 A & 630 A), 3 pole (115 – 2600 A) & 4 pole (115 A – 780 A) contactors
Pre-assembled star-delta motor starters (185-375 kW/440V AC), 3 pole AC-3 reversing contactors (115 A – 265 A) & 4 pole AC-1 change-over contactors (200-350 A)
Separate components and kits available for customer assembly of motor starters, reversing and change-over contactor solutions
Wide range of AC (40-400 Hz) and DC operating coils
Terminal connections suitable for connecting bus bars & cables
Wide range of common accessories to improve flexibility, functionality & safety
Complemented by Class10/20 LR9F type electronic thermal over-load relays and TeSys GV7-R circuit breaker for motor starter solutions
Suitable for switching of motors, lighting, heating, capacitors, auto-transformer starting, rotor circuits of slip-ring motors, etc.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
