Product Description P/N: LC1F630

Description / Specifications

Description

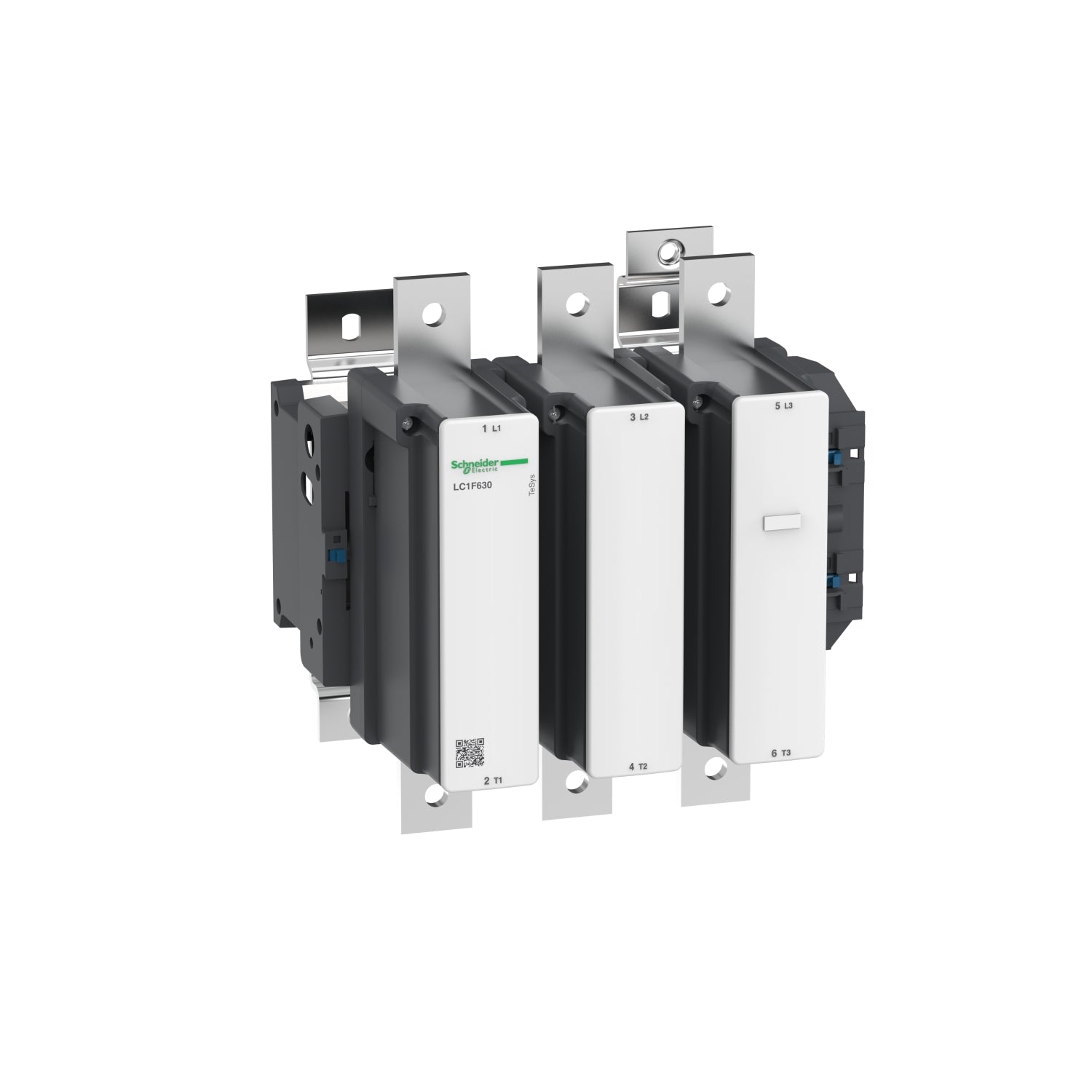

The LC1F630 is a contactor body from the TeSys F series, designed with 3 poles (3NO) and a rating of 630A/1000V AC-3, specifically tailored for motor applications up to 250kW@400V. This contactor does not include a coil, allowing for separate selection and installation (coil to be ordered separately). It features bolt terminals suitable for bars or cables with lugs.

Capable of high operating rates up to 1200 cycles/hour and suitable for environments up to 55°C, the LC1F630 ensures high reliability and durability in diverse applications. It facilitates installation and maintenance through a drawer mechanism for the insertion of the selected coil and offers a wide selection of add-on blocks and accessories (to be ordered separately).



Technical Specifications



Part #

LC1F630

Manufacturer

SCHNEIDER ELECTRIC

Brand

TELEMECANIQUE

Category

Contactors & Starters

Subcategory

Contactor Range

Product name

TeSys F

Product or component type

Contactor

Device short name

LC1F

Contactor application

Resistive load

Poles description

3P

Power pole contact composition

3 NO

[Ue] rated operational voltage

<= 1000 V AC 50/60 Hz

[Uc] control circuit voltage

48...1000 V AC 40...400 Hz with LX1/LX9 coil

[Uimp] rated impulse withstand voltage

8 kV

Overvoltage category

III

[Ith] conventional free air thermal current

1000 A (at 40 °C)

Irms rated making capacity

6300 A AC conforming to IEC 60947-4-1

Rated breaking capacity

5040 A conforming to IEC 60947-4-1

Associated fuse rating

630 A aM at <= 440 V

Average impedance

0.12 mOhm - Ith 1000 A 50 Hz

[Ui] rated insulation voltage

1000 V conforming to IEC 60947-4-1

Power dissipation per pole

120 W AC-1

Heat dissipation

20 W

Maximum operating rate

1200 cyc/h 55 °C

Compatibility code

LC1F

Protective treatment

TH

Ambient air temperature for operation

-5…55 °C

Ambient air temperature for storage

-60…80 °C

Permissible ambient air temperature

-40…70 °C

Operating altitude

3000 m without derating



Information About LC1F630


The LC1F630 Contactor body, part of the TeSys F series, is a 3-pole (3NO) device designed for AC-3 applications with a maximum voltage rating of <=440V and a current capacity of 630A. Specifically engineered for motor applications up to 250kW at 400V, this contactor does not include a coil, allowing for subsequent selection and installation (coil to be procured separately).

Featuring bolt terminals suitable for bars or cables with lugs, the LC1F630 ensures secure connections. It is engineered to operate reliably even under high-frequency conditions, supporting operating rates of up to 1200 cycles per hour. With a durability rating suitable for environments up to 55°C, it promises long-term performance and resilience.

Installation and maintenance of the LC1F630 are simplified by its design, which incorporates a drawer for the insertion of the selected coil. Additionally, a wide selection of add-on blocks and accessories are available for customization, although they must be acquired separately.

This contactor adheres to multiple industry standards, including IEC, UL, CSA, CCC, EAC, and Marine certifications. Furthermore, it is compliant with Green Premium regulations, meeting the requirements of RoHS and REACh directives.
