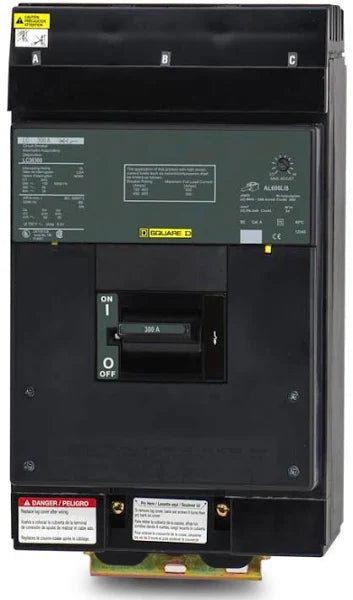

LC36300 | Schneider Electric Molded Case Circuit Breaker
- Regular price
- $2,740.00
- Sale price
- $2,740.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LC36300
Description
LC36300, Square D, I-Line, type LC, 3P, ABC phase connection, 3PH, 300A, 600V, 65kA@480V, extra high interrupting capacity, I-Line Style Plug-In, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic molded case circuit breakers.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | LC36300 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | I-Line |
| Type | LC |
| Voltage | 600 |
| Amperage | 300 |
| Frame Type | L Frame |
| Connection | I-Line Style Plug-In |
| Functions | LI - Long-Time and Instantaneous |
| AIC Rating | 65kA@480V |
| Protection | Thermal Magnetic |
| Phase | 3 |
| Poles | 3 |
Information About LC36300
The LC36300 Schneider Electric Molded Case Circuit Breaker is a robust and high-capacity electrical protection device designed for industrial and commercial applications. As part of the I-Line family, this breaker provides exceptional reliability and performance for managing substantial power loads.
Operating at a voltage of 600V and an amperage of 300A, the LC36300 is suitable for demanding electrical systems. Its three-pole configuration ensures balanced and efficient power distribution across all phases in three-phase systems.
The circuit breaker employs a Thermal Magnetic protection mechanism, combining thermal protection for long-time overload conditions and magnetic protection for instantaneous short-circuit response. This dual protection ensures comprehensive safeguarding of electrical circuits. With an interrupting capacity (AIC) of 65kA at 480V, the LC36300 can handle significant fault currents, providing robust protection against electrical faults.
Designed for ease of installation and maintenance, the LC36300 features an I-Line Style Plug-In connection, allowing for quick and secure integration into I-Line panelboards and busway systems. The L Frame type enhances its durability and reliability, making it suitable for harsh and demanding environments.
The primary functions of the LC36300 include Long-Time and Instantaneous protection, ensuring continuous operation under normal conditions and rapid disconnection during fault conditions to prevent damage and enhance safety.
Overall, the LC36300 Schneider Electric Molded Case Circuit Breaker is a dependable and efficient solution for protecting electrical circuits from overloads and short circuits. Its high interrupting capacity, robust protection features, and easy installation make it an ideal choice for various industrial and commercial applications.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
