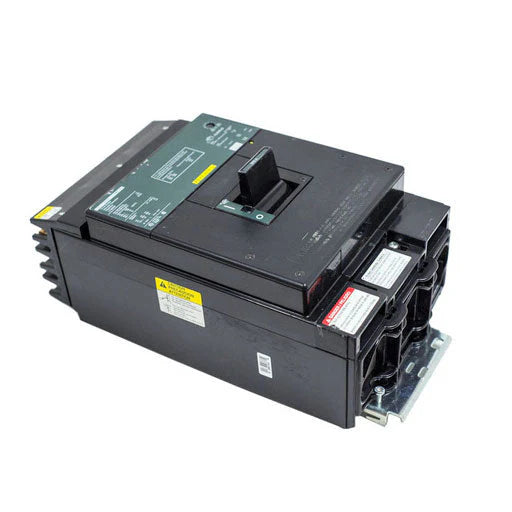

LC36500 | Schneider Electric Molded Case Circuit Breaker
- Regular price
- $7,322.00
- Sale price
- $7,322.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LC36500
Description
The LC36500 is a Square D molded case circuit breaker, specifically designed for industrial applications. It belongs to the I-Line series and features a 3-pole configuration with ABC phase connection. With a current rating of 500A and a voltage rating of 600V, it ensures robust performance in demanding electrical systems. The circuit breaker has an extra-high interrupting capacity of 65kA at 480V, making it suitable for high-power applications. It adopts the i-line style plug-in design for easy installation and maintenance.
Technical Specifications
|
Part # |
LC-36500 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Current Rating |
500 Amp |
|
Number of Poles |
3 Pole |
|
Voltage Rating |
600 V |
Information About LC36500
The LC36500 is a Square D molded case circuit breaker designed for industrial applications, featuring I-Line configuration. This circuit breaker is categorized as type LC, with three poles and ABC phase connection. It operates in a three-phase system with a current rating of 500A and a voltage rating of 600V. With an interrupting capacity of 65kA at 480V, it boasts extra-high interrupting capabilities suitable for demanding environments.
Constructed with thermal magnetic technology, the LC36500 ensures reliable circuit protection by combining both thermal and magnetic trip functions. It is designed in an i-line style, facilitating plug-in installation for convenient setup and maintenance. This configuration offers enhanced flexibility and ease of use in electrical systems.
The Long-Time (LI) and Instantaneous trip functions further enhance the safety and performance of this molded case circuit breaker. These functions provide additional protection by allowing customizable trip settings based on specific application requirements. Additionally, they contribute to the prevention of equipment damage and electrical hazards by quickly interrupting the circuit when necessary.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
