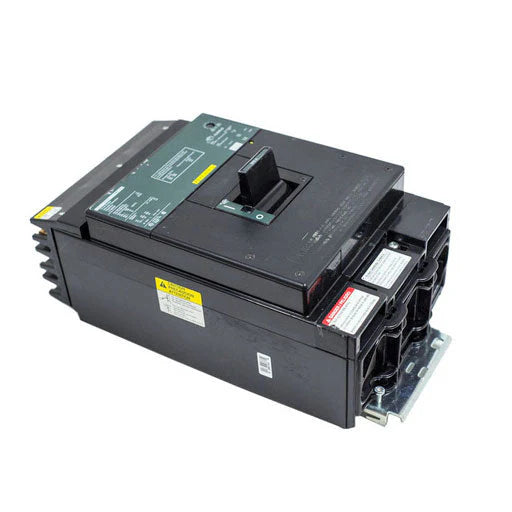

LC36600 | Schneider Electric I-Line 600A 600V 3-Pole Molded Case Circuit Breaker
- Regular price
- $2,999.00
- Sale price
- $2,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LC36600
Description
The Schneider Electric LC36600 is a molded case circuit breaker designed for heavy-duty industrial power systems requiring high-capacity thermal-magnetic protection. It supports 600-volt, three-phase distribution and provides rapid fault clearing for demanding electrical environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | LC36600 |
| Subcategory | Molded Case Circuit Breaker |
| Family | I-Line |
| Type | LC |
| Voltage | 600 V AC |
| Amperage | 600 A |
| Functions | LI – Long-Time & Instantaneous |
| Poles | 3 |
| Frame Type | L Frame |
| Phase | 3 |
| AIC Rating | 65kA @ 480V |
| Connection | I-Line Style Plug-In |
| Protection | Thermal Magnetic |
| Trip Unit | Thermal-Magnetic Trip |
| Interrupting Rating | High Fault Capacity |
| Application | Heavy-Duty Industrial Distribution |
Information About LC36600
The LC36600 is a molded case circuit breaker from Schneider Electric’s I-Line series designed to support high-performance, three-phase industrial power distribution. Built with a robust L Frame structure, it provides enhanced mechanical strength and thermal stability for environments with heavy electrical demand. Its I-Line plug-in interface enables quick installation and secure panel engagement, making it suitable for both new infrastructure and equipment replacement. With a 600-amp rating, 600-volt operating capacity, and a powerful 65 kA interrupting capability at 480 volts, this breaker delivers the fault-clearing performance required for safeguarding large industrial loads and critical equipment.
Key Features
- High-Capacity 600A Output: Supports heavy industrial loads such as large motors, switchgear assemblies, and facility-wide distribution circuits.
- L Frame Mechanical Design: Offers increased structural durability and heat dissipation, ensuring stable operation under high electrical stress.
- 65kA Interrupting Rating: Provides strong fault-clearing capability at 480 volts, greatly reducing risks posed by high-energy short circuits.
- I-Line Plug-In Construction: Enables fast, reliable installation with secure mechanical retention and simplified maintenance procedures.
- Thermal-Magnetic Protection: Combines long-time overload sensing with instantaneous magnetic fault detection for comprehensive circuit safety.
- Three-Pole, Three-Phase Operation: Ensures coordinated interruption across all phases for balanced industrial power systems.
- LI Trip Functions: Utilizes long-time and instantaneous trip elements to address both sustained overloads and abrupt short-circuit events effectively.
- 600V Operating Capability: Suitable for high-voltage distribution networks found in manufacturing plants, industrial facilities, and large commercial sites.
The LC36600 delivers the reliability and precision required for protecting high-capacity three-phase industrial electrical systems.
