LCF16LMP | Banner Engineering 16 mm C-Mount Machine Vision Lens for 2/3″ Sensors
- Regular price
- $629.00
- Sale price
- $629.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LCF16LMP
Description

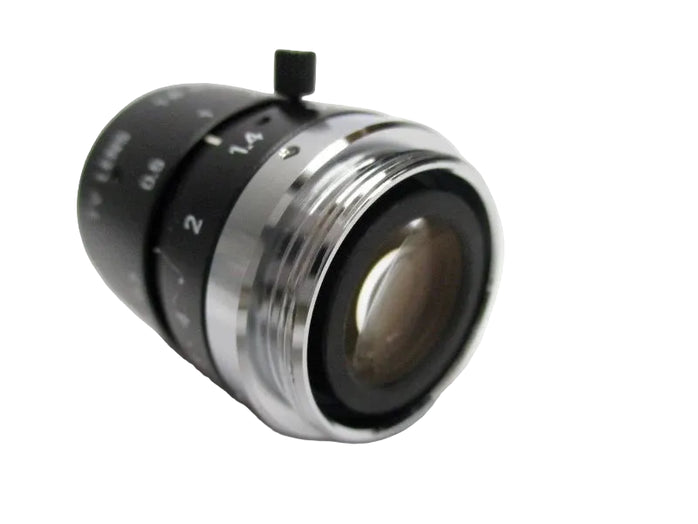

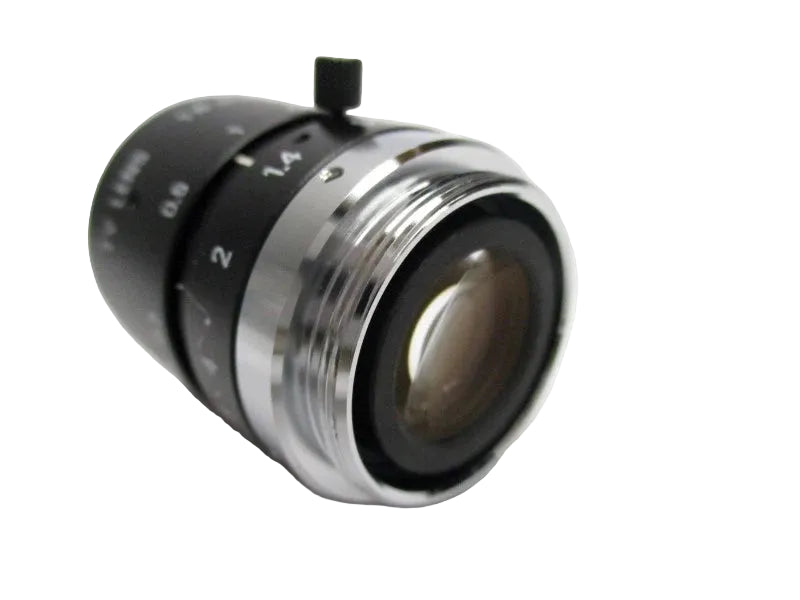

The Banner Engineering LCF16LMP is a C-mount machine vision lens designed for use with Presence Plus® area vision systems. It features a 16 mm focal length and supports image sensors up to 2/3 inch format for accurate optical inspection. The lens is built with a metal housing and includes locking focus and aperture controls for stable imaging performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Optical Inspection Equipment |
| Part Number | LCF16LMP |
| Subcategory | Machine Vision - Lenses |
| Series | LC |
| Lens Type | Wide Angle |
| Focal Length | 16 mm |
| Maximum Imager Resolution | 1600 × 1200 pixels |
| Compatible Sensor Size (Max) | 2/3 inch |
| Mounting Type | C-Mount |
| Adjustable Focus | Yes |
| Locking Focus | Yes |
| Adjustable Aperture | Yes |
| Locking Aperture | Yes |
| Housing Material | Metallic |
| RoHS Compliant | Yes |
| Country of Origin | UA |
| Weight | 78.9 g |
Information About LCF16LMP
The LCF16LMP is a lens from the Banner Engineering LC Series, developed for industrial machine vision and optical inspection applications. It is compatible with Presence Plus® vision sensors and supports a maximum imager resolution of 1600 × 1200 pixels. The lens uses a standard C-mount interface and is designed with adjustable and lockable focus and aperture settings to maintain calibration during operation. Its metallic housing provides mechanical stability for use in fixed industrial inspection systems.
Key Features:
-
16 mm focal length: Provides wide-angle imaging suitable for machine vision inspection tasks.
-
C-mount interface: Ensures compatibility with standard industrial vision cameras and sensors.
-
2/3 inch sensor support: Designed for use with larger-format image sensors.
-
Adjustable focus mechanism: Allows precise image tuning during setup.
-
Focus lock function: Maintains focus stability after adjustment.
-
Adjustable aperture: Enables control of light intake for consistent image quality.
-
Locking aperture ring: Prevents unintended aperture changes during operation.
The LCF16LMP delivers the reliability and precision required for industrial machine vision and optical inspection systems.
