LCZ460-30 | Honeywell Hall-Effect Zero-Speed Sensor 4.5–26VDC

Description

The Honeywell LCZ460-30 is a single Hall-effect zero-speed sensor engineered for detecting ferrous metal targets, such as gear teeth, with high accuracy. It delivers a digital output and operates across a wide supply voltage range for use in demanding industrial and automotive environments.

Technical Specifications

Information About LCZ460-30

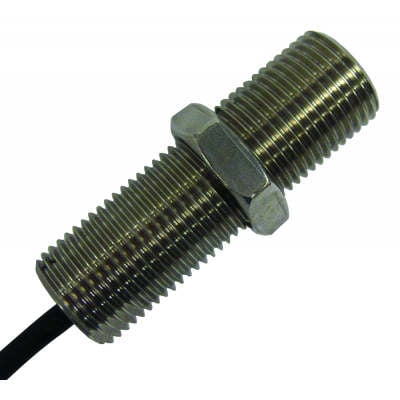

The LCZ460-30 is part of Honeywell’s LCZ Series Hall-effect zero-speed sensors, designed for applications where precise detection at both low and high rotational speeds is essential. Built with a rugged stainless-steel housing measuring 76.2 mm (3.0 in) in length and 9.5 mm (0.375 in) in diameter, it incorporates a 5/8-18 UNF-2A threaded mounting for secure installation. The sensor detects ferrous metal targets, including gear teeth, and provides a stable digital output from 0 Hz up to 15 kHz, making it suitable for a wide range of motion-sensing tasks. It operates reliably from -40°C to 125°C and within a supply voltage range of 4.5 to 26 VDC, offering robust performance in extreme environmental conditions. A 69-inch lead length allows for flexible installation in various equipment layouts, and the sealed construction enhances resistance to dust, moisture, and mechanical stress.

Key Features:

• Zero-speed detection capability: Accurately senses target motion from a complete stop (0 Hz) up to 15 kHz, ensuring consistent performance across all speed ranges.

• Single Hall-effect sensing technology: Utilizes a magnetic field-based detection method to provide precise digital switching for ferrous metal targets.

• Rugged threaded housing design: 5/8-18 UNF-2A stainless-steel body with 3-inch sensing length for secure mounting in industrial environments.

• Wide supply voltage range: Operates from 4.5 VDC to 26 VDC, making it compatible with various power systems.

• Extended temperature tolerance: Functions in temperatures from -40°C to 125°C (-40°F to 257°F) for reliable use in harsh conditions.

• Flexible installation options: 69-inch wire lead length allows positioning in remote or difficult-to-access equipment areas.

• Ferrous metal and gear tooth detection: Ideal for speed monitoring, position sensing, and rotational feedback applications.

• Industrial-grade sealing: Protects internal electronics from dust, moisture, and contaminants, extending operational life.

The LCZ460-30 delivers the reliability and precision required for accurate motion and speed sensing in automotive, industrial, and heavy-duty equipment applications.
