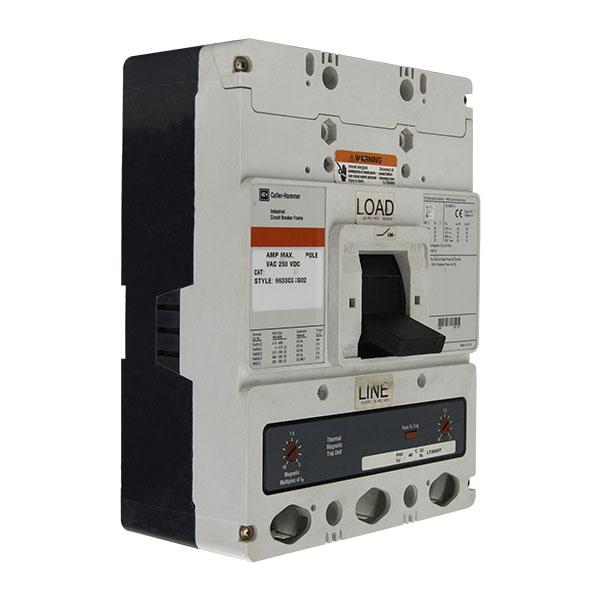

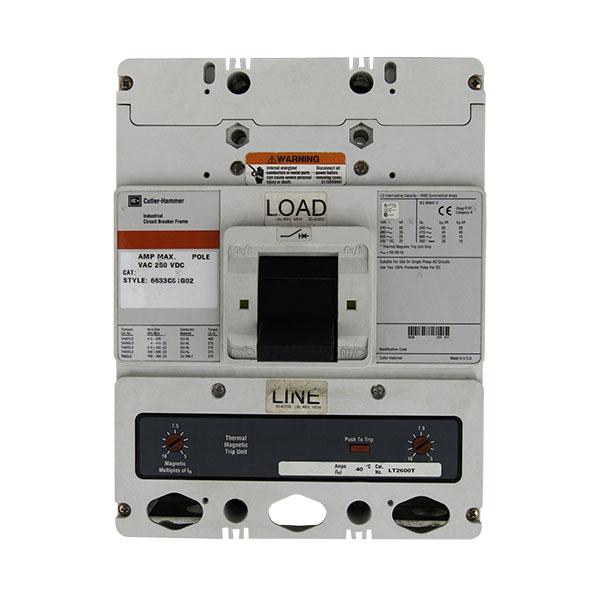

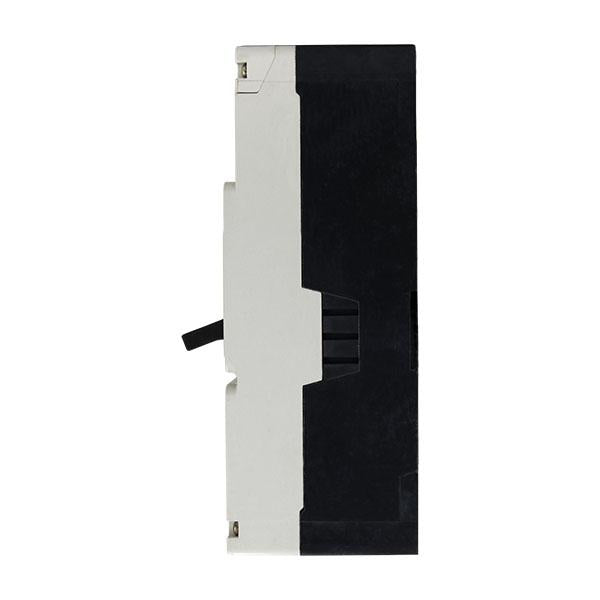

LD2600 | Eaton 600A 2-Pole 600V Series C L-Frame Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LD2600
Description
The Eaton LD2600 is a 2-pole thermal magnetic molded case circuit breaker designed for heavy-duty industrial and commercial power systems. It features a 600-amp current rating and operates at 600 VAC / 250 VDC, providing robust overcurrent and short-circuit protection. With an interrupting capacity of 65 kAIC at 240 VAC and 35 kAIC at 480 VAC, the LD2600 ensures dependable performance in demanding electrical environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breakers |
| Part Number | LD2600 |
| Subcategory | Molded Case Circuit Breakers |
| Series | Series C |
| Frame Type | L-Frame |
| Circuit Breaker Type | Thermal Magnetic |
| Number of Poles | 2 |
| Amperage Rating | 600 A |
| Voltage Rating | 600 VAC / 250 VDC |
| Interrupting Rating | 65 kAIC @ 240 VAC, 35 kAIC @ 480 VAC |
| Trip Functions | Long-Time and Instantaneous |
| Connection Type | Feed-Thru |
| Terminal Type | Line and Load Lugs |
| Terminal Material | Aluminum |
| Frequency Rating | 50–60 Hz |
| Certifications | UL 489, CE, HACR Approved |
| Phase | Single Phase |
| Temperature Rating | 40°C |
| Application | Branch Circuit and Feeder Protection |
| Dimensions (HxWxD) | 8.25 in x 4.06 in x 10.75 in |
| Weight | 0.01 lb |
Information About LD2600
The LD2600 is part of Eaton’s Series C L-Frame molded case circuit breakers, engineered for reliable protection of branch and feeder circuits. It utilizes a fixed thermal and magnetic trip mechanism that provides both long-time and instantaneous trip functions for accurate fault detection. The breaker’s feed-thru connection with line and load lugs simplifies installation and enhances current-carrying reliability. Built to meet UL 489 and CE standards, the LD2600 offers high interrupting capacity and dependable circuit isolation for industrial distribution systems operating at 50/60 Hz.
Key Features:
- Amperage Rating: Supports 600 amps for large-scale load applications.
- Voltage Rating: Operates at 600 VAC and 250 VDC for versatile use.
- Interrupting Capacity: Rated 65 kAIC at 240 VAC and 35 kAIC at 480 VAC for strong fault protection.
- Trip Mechanism: Thermal magnetic trip with long-time and instantaneous protection functions.
- Frame Type: L-Frame design suitable for Series C molded case configurations.
- Connection Type: Feed-thru with line and load aluminum terminals for efficient conductivity.
- Certifications: UL 489 and CE compliant for global compatibility.
- Frequency Rating: Operates reliably on both 50 and 60 Hz systems.
The LD2600 delivers the reliability and precision required for industrial circuit protection, feeder management, and high-current distribution applications.
